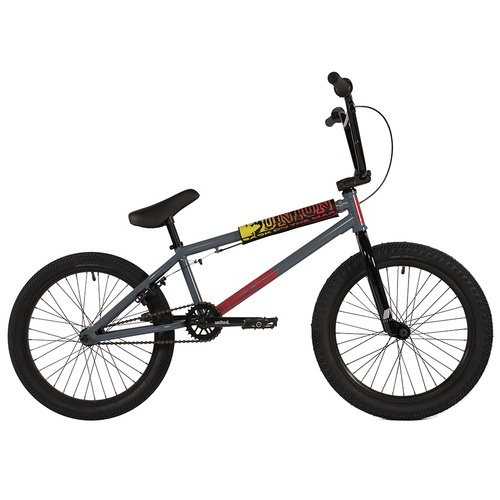

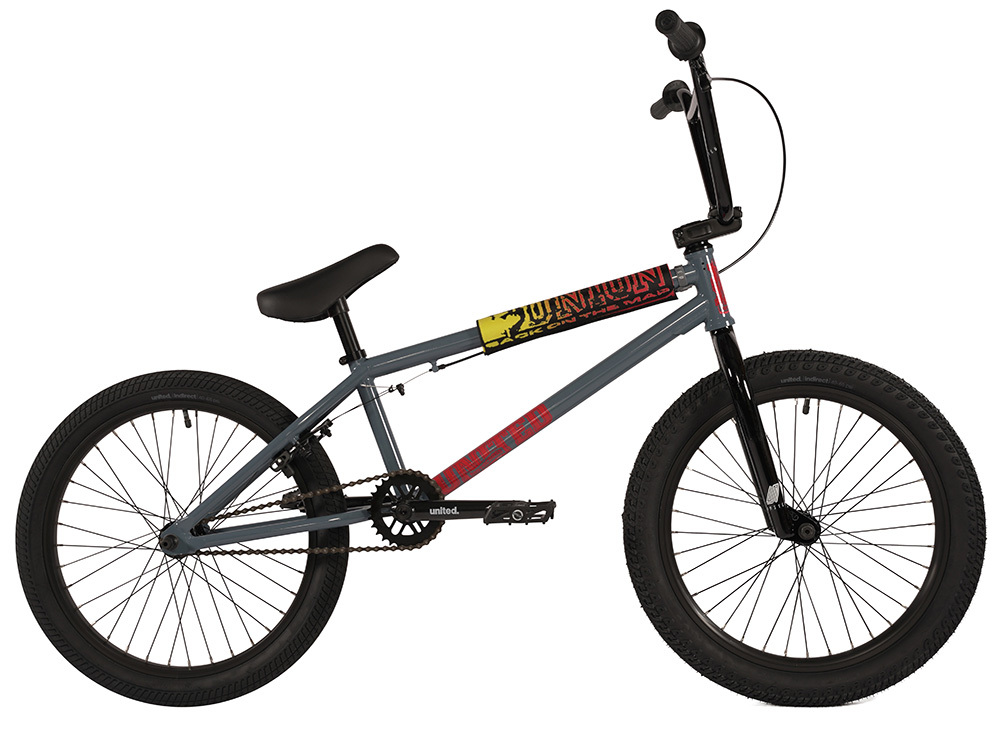

21" Top Tube, 9" Bars And 170mm Cranks With Crmo Top Tube And Crmo Fork Steerer. Features A Raft Of Genuine United Parts Including United Jimmy Grips, Supreme Pedals And In-Direct Tyres, As Well As An Integrated Headset, Sealed Mid BB And Sealed Front And Rear Hubs. Plus Bicycle Union Top Tube Pad.

Top Tube Length 21”
Frame Cromo Top Tube, Welded Brake Mounts, Integrated Head Tube, Mid BB, CNC Seat Stay Bridge Embossed Logo Down Tube Gusset
Geomtry HT: 74.5° / CS: 13.25” / SO: 8.5” / BB: 11.6” / St: 71°

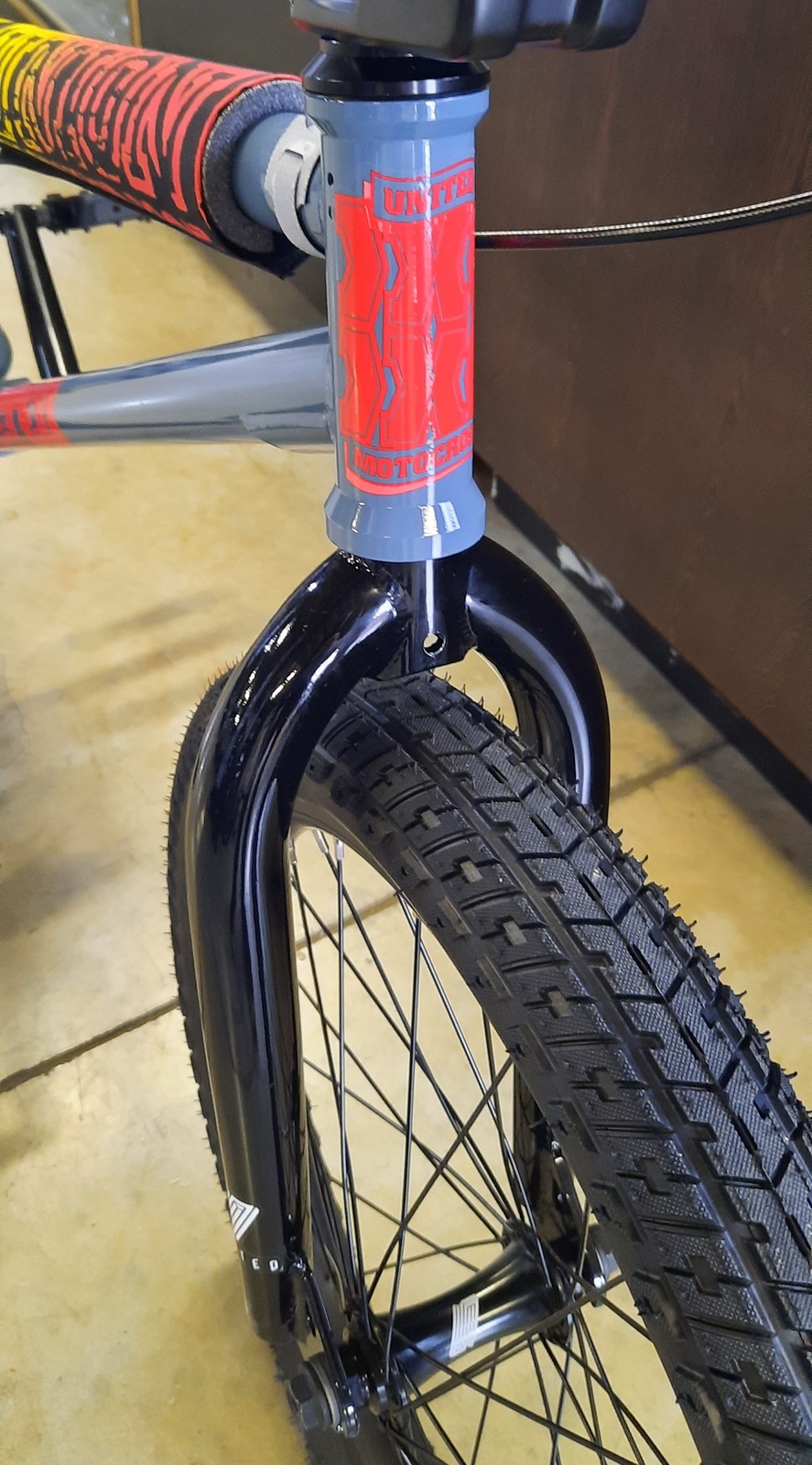

Forks Cromo Steerer Tube, Integrated Bearing Race, Tapered 1020 Hi Tensile Steel Legs
Handlebars 9” X 29” 1020 Hi Tensile Steel With 1° Up Sweep, 12° Back Sweep

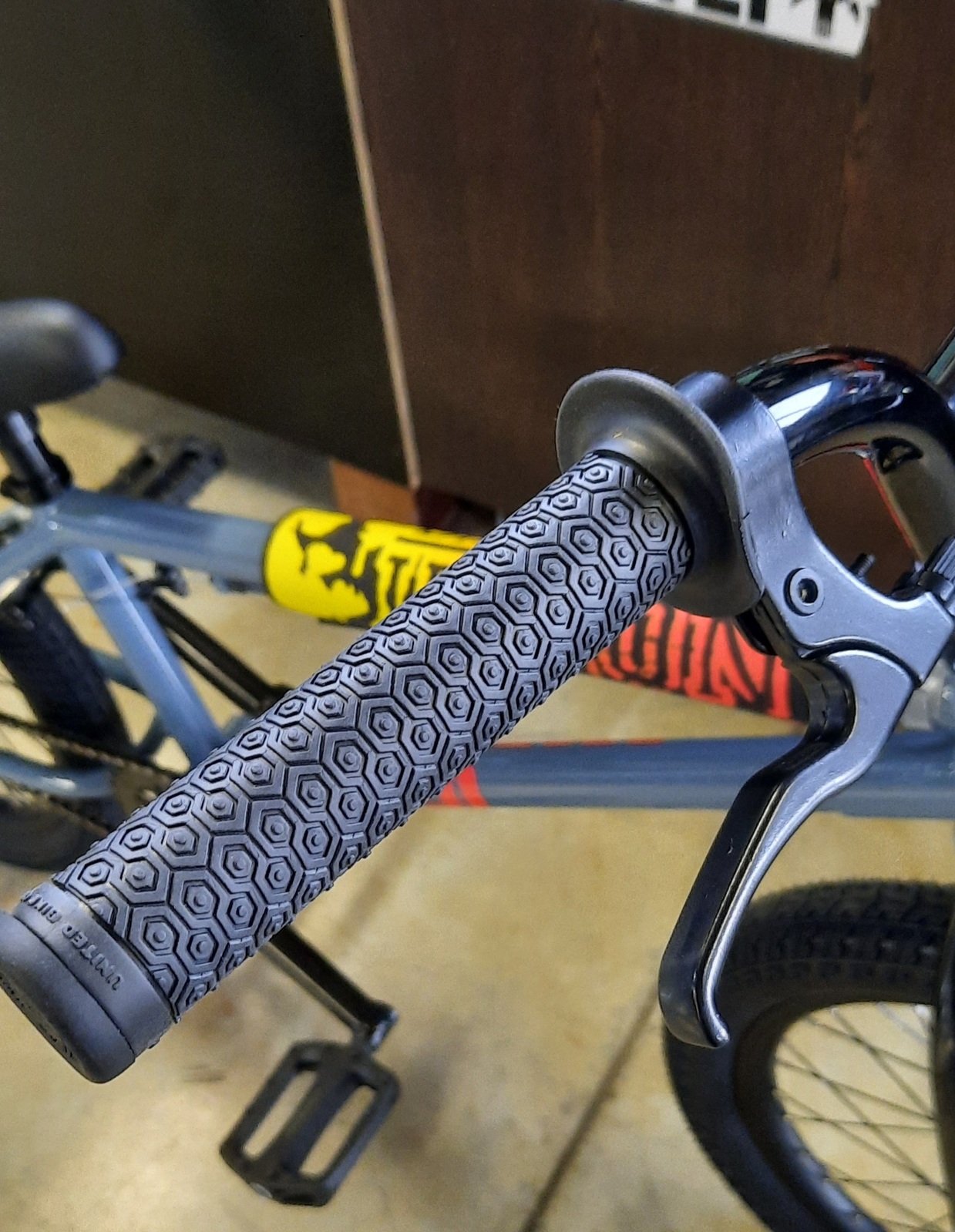

Grips United Jimmy Grips & United Bar Ends
Headset United Integrated Sealed Bearing
Stem United 50mm Reach Top Load Stem With Embossed United Logo On Faceplate And Forged Detailing On Sides
Rear Lever Alloy
Rear Brake 990
Cranks 3pc 170mm, Tubular Cromo, 8 Spline, Printed United Logo
BB United Sealed Bearing Mid
Sprocket 28t Steel
Pedals United Supreme PC
Chain X410
Rear Rim Alloy 36h, Single Wall
Front Rim Alloy 36h, Aero, Single Wall

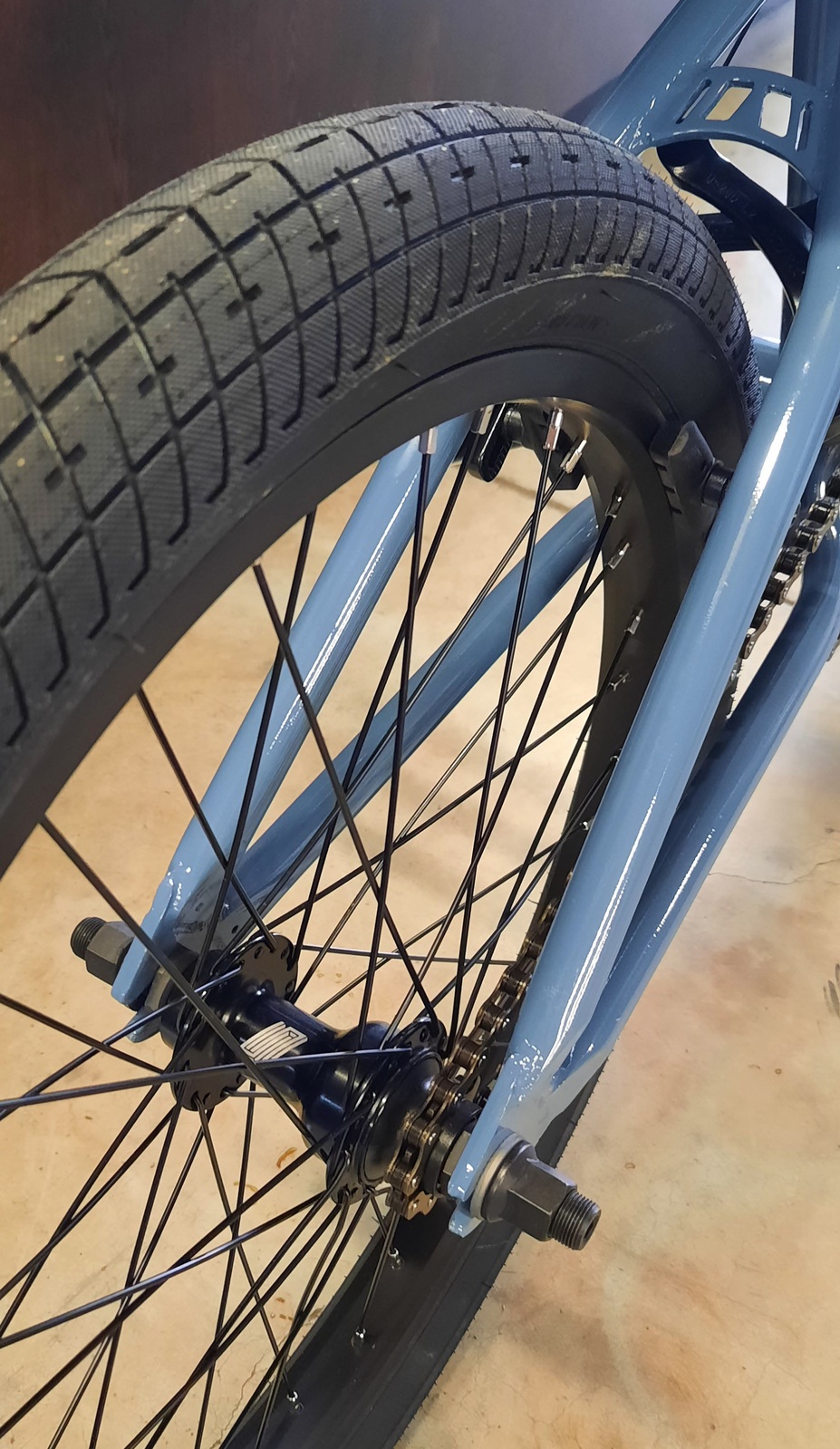

Rear Hub 36h United Supreme Sealed Alloy Cassette Hub With 14mm Axle, Sealed Bearing 9t Driver, 4 Pawl, Ultra Loud Mechanism
Front Hub 36h Alloy, Sealed Bearing, 10mm Female Axle
Rear Tyre United In-Direct 20 X 2.10”
Front Tyre United In-Direct 20 X 2.35”
Seat United Padded Seat/Post Combo With Custom Sewn Patch On Rear
Seat Post Integrated With Seat
Seat Clamp Alloy

(kab7384)

SKU kab7384
Brand United
Shipping Weight 15.0000kg
Shipping Width 0.550m
Shipping Height 0.880m
Shipping Length 1.200m
Shipping Cubic 0.580800000m3
