G-SPORT

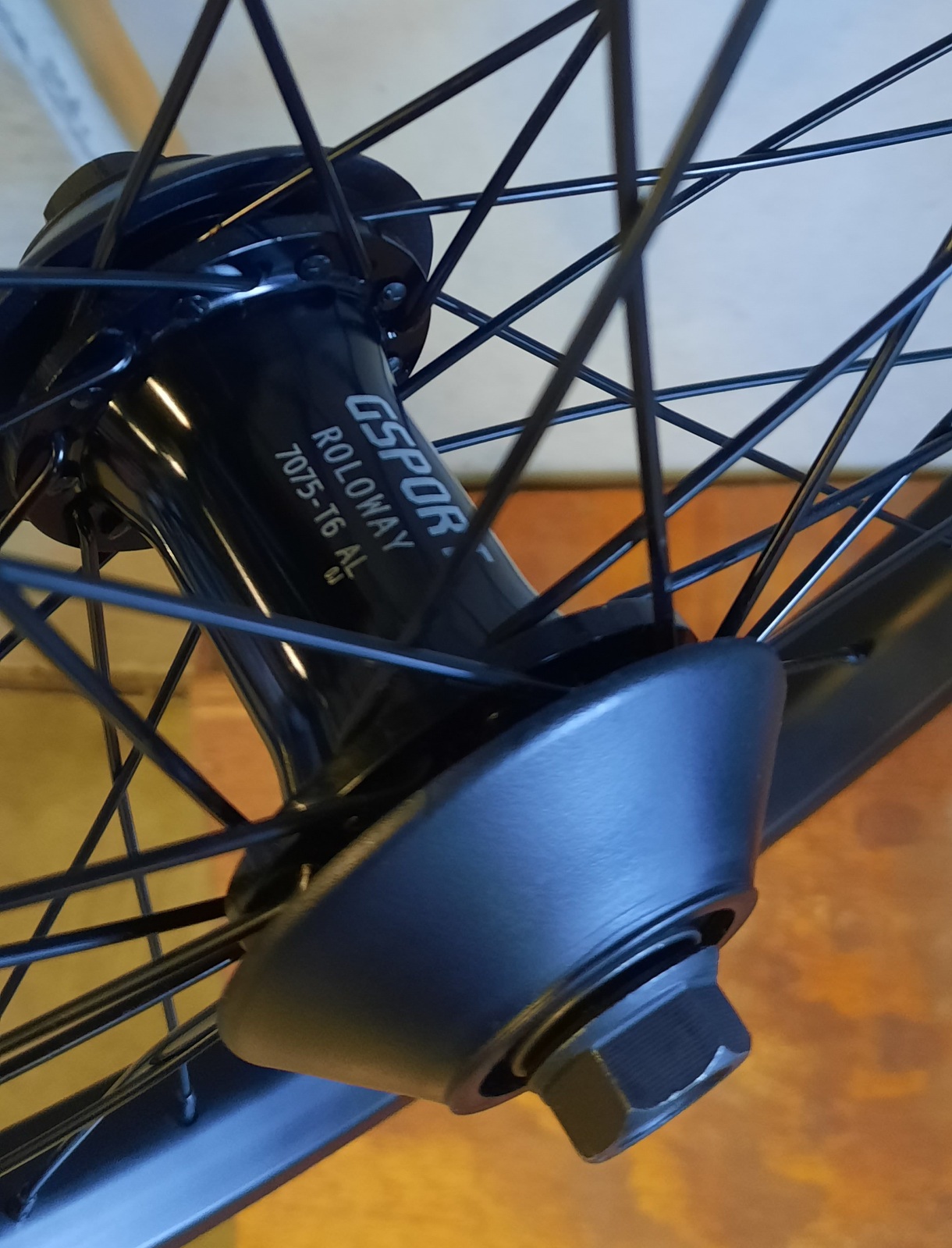

Roloway Front Hub

UNMATCHED DURABILITY

The new Roloway hub is a precision sealed front hub with 3/8” in-bound axle bolts and two removable plastic hub guards. An oversized axle, bearing configuration and 7075-T6 aluminum hub shell is used for unmatched durability.

7075-T6 ALUMINUM HUB SHELLFEATURES

6804RS sealed cartridge ball bearings

Precision bored fully concentric bearing seats for a smoother spin and prolonged bearing life

20mm 7075-T6 aluminum axle with steel helicoil thread inserts

3/8” heat-treated chromoly axle bolts with 17mm wrench flats and a 6mm hex slot

Replaceable plastic hub guards included

(Also sold separately)

TECHNICAL SPECIFICATIONS

Spoke Configuration: 36 hole

Hub Shell Material: 7075-T6 aluminum

Hub Shell Bearings: 6804RS sealed cartridge ball bearing

Axle: 20mm 7075-T6 aluminum female axle with steel helicoiled threads.

Axle Bolts: 3/8″ heat-treated 4130 chromoly axle bolts

Guard Option: Plastic hub guards included

Flange Diameter Left: 44mm

Flange Diameter Right: 44mm

Center to Flange Left:28mm

Center to Flange Right: 28mm

Weight: 340g

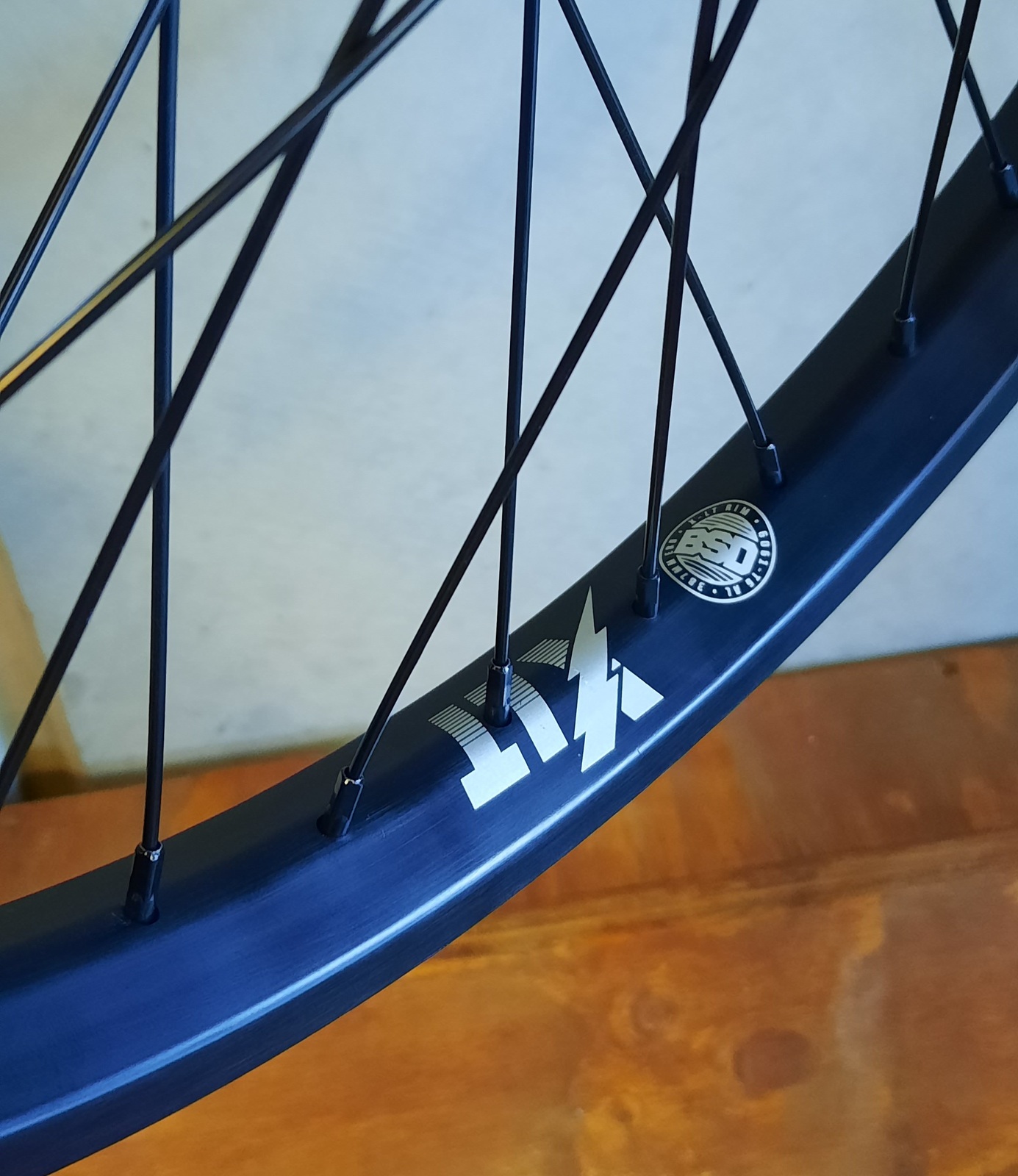

BSD

XLT Rim

If you’re trying to lighten your bike then rims and tires can make a big difference to how the bike handles due to the reduction of rotational mass. The XLT is BSD's new lightweight rim, designed around an X-section for increased stiffness, the rim has an aero style shape which further triangulates the design. With other proven features such as tapered sidewalls and patented cross over lacing this rim is light while remaining strong.

FEATURES

• Lightweight design

• Extra thick tapered sidewalls

• Extra thick tapered spoke seats

• Aligned cross over lacing

• X-section centre brace

• Can be used with brakes

• 34mm wide x 19mm tall

• 6061-T6 construction

SPEC

Outer Diameter - 419mm ERD: 384mm

Weight - 495g
