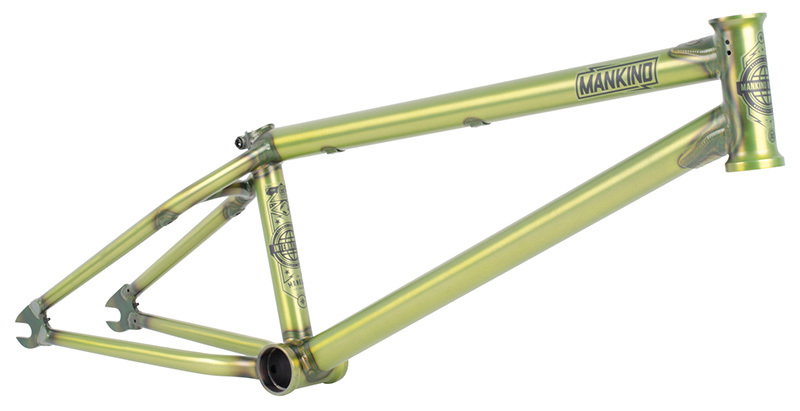

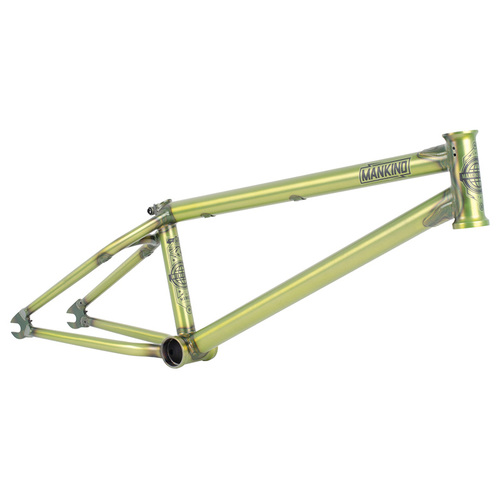

Designed to be a modern park frame with an ideal geometry and features for this riding style. The new Mankind International Park Frame is the latest addition to the Mankind frame fleet. Lower standover height, integrated chain tensioners on 6mm dropouts, TT & DT gussets, tapered SS & CS and shorter chain stays with 12.9” (slammed) & 13.2” (middle of dropout), give you all you need to have a perfect park machine.
Material: Full 4130 chromoly Sanko Japanese tubing
TT: ø 33.0mm Heat-treated
DT: ø 34.9mm Heat-treated
SS: ø 19.0mm Heat-treated, Tapered to 16mm
CS: ø 19.0mm Heat-treated Tapered to 16mm
Seat Tube: Single butt Heat-treated. Angle 71°
Stand Over: 7.4”
Head Tube: Heat-treated Integrated Headset, Removable Gyro tab holes
HT Angle: 75°
BB: Heat-treated Mid Size BB
BB Height: 11.5°
Dropouts: Heat-treated Laser cut, 6mm, 4130 cr-mo, 14mm slots Angled welded on caps on SS & CS.
CS-Length: 13,2” – middle of dropout – 12.9” slammed
CS-Width: 2,4” tires fit easily
U-Brake: Removable U-brake mounts and brake cable guides
Weight: 2.10 Kg / 4.63lbs for 21.0”
Specials: MK-Top & Down Tube Gussets, MK SS & CS Bridge, Integrated Seatclamp, Int. Chain Tensioners. CNC HT Logo
Brake mounts sold seperatly
