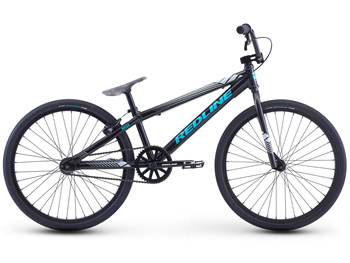

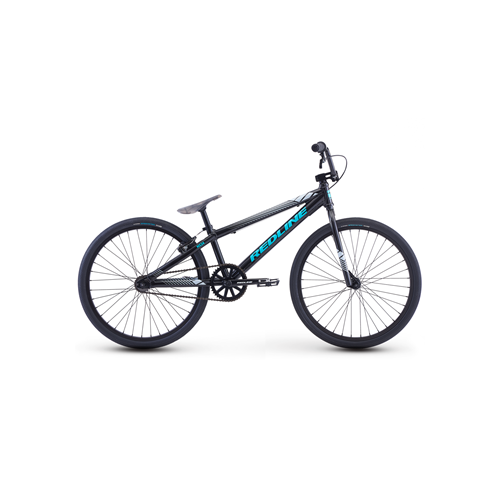

MX 24 Cruiser Bike

The Redline MX24 is lightweight and easy to maneuver. The MX24 features a high-quality 3-piece crank set, integrated headset, Pivotal Race saddle, and 24 inch wheels. The Redline MX24 is top of class for value and quality, and best of all, it’s race-ready out of the box.



Specifications

• Frame - 6061 alloy w/integrated headtube

• Fork - rl race hi-ten w/ tapered legs

• Headset - integrated 1 1/8"

• Cranks - race chromo 175mm 3pc cranks

• Sprocket - 41t, alloy

• Bottom bracket - euro

• Cogset - 18t

• Chain - kmc z410

• Front hub - redline aluminum

• Rear hub - rl aluminum flip-flop

• Spokes - 14g steel

• Rims - alloy race 24 x 1.75, 36h

• Tires - vee speedster 24 x 1.75"

• Brake levers - tektro

• Pedals - rl aluminum 9/16" platform

• Handlebar - rl race, 5.5" rise / 12° back / 1° up

• Grips - redline hex expert w/plugs

• Stem - rl hollow point aluminum 1 1/8" threadless

• Seat - pivotal race

• Seatpost - pivotal 26.8

• Brakes - tektro bx310 linear

Geometry

Frame Size - 24"

Bike Top Tube Length - 21.8 "

Bike Head Angle - 74.0 °

Bike Seat Angle - 70.0 °

Bike Chain Stay Length - 15.1 "

Bike Bb Height - 12.0 "

Bike Stem Length - 55.0 mm

Bike Handlebar Width - 28.0 "

Bike Crank Length - 175.0 mm

(31029)

SKU 31029
Brand REDLINE
Shipping Weight 15.0000kg
Shipping Width 0.220m
Shipping Height 0.560m
Shipping Length 1.200m
Shipping Cubic 0.147840000m3
