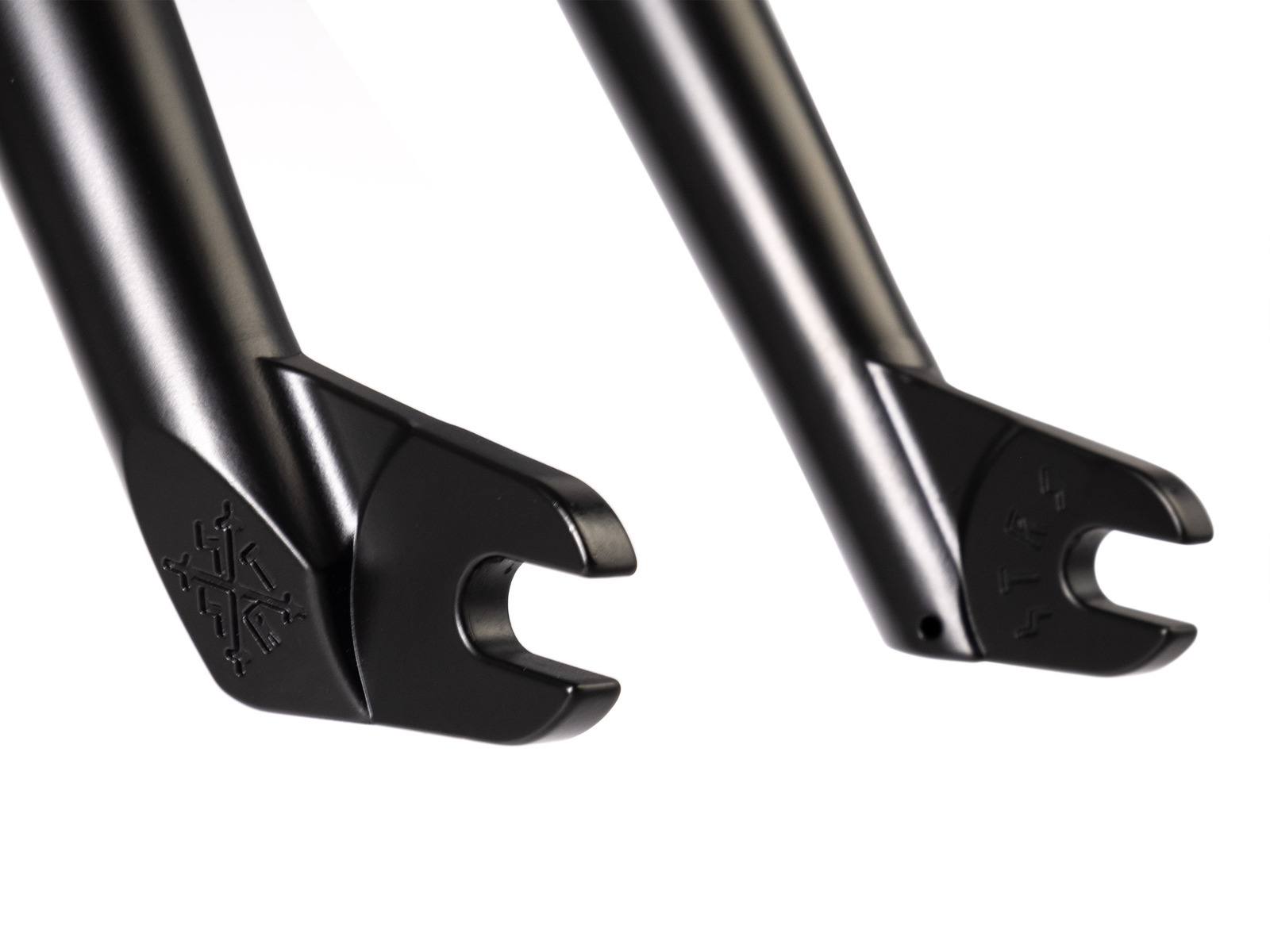

For the Stress Voskhod fork, with specifically designed cast 8mm dropouts from chromoly Japanese steel 4130. Casting not only made the fork more beautiful, reduces the problem of dropouts being torn off during unsuccessful grinds.



With the collective decision of the STRS team, the classic offset was chosen to be 28 mm. In our opinion, it is optimal for the absolute majority of bike riders who ride street and in the plazas.



The attachment area of the legs with the steerer tube is one of the most high-loaded spots of the fork. To strengthen it, Stress first maximized the area of the seams where the legs are welded to the steerer tube. This is a simple and effective solution. But this was not enough for us, so we put an aluminum spacer on the bottom of the steerer tube. This spacer makes the steerer tube harder and it helps to redistribute part of the load on the legs. Thus, the load is spread across the fork and not concentrated at one point, which affects the strength.



There is not a single random detail in the Voskhod fork. Most brands use a bolt with a thread diameter of 25 mm. We reduced the bolt thread diameter to 24 mm to make the steerer tube walls 30% thicker in the second most breakable spot – the attachment point of the stem or the top headset bearing. The Voskhod fork bolt matches both 6 mm and 8 mm Allen keys.

  • Heat-treated Japanese steel 4130

  • Aluminium spacer in the steerer tube

  • Variable thickness cast dropouts

  • Offset 28 mm

  • Steerer tube length 160 mm

  • Topbolt for 6 mm and 8 mm Allen key

  • Weight 1050 grams

(E02-190006)

SKU E02-190006
Brand STRESS BMX
Shipping Weight 1.2000kg
Shipping Width 0.540m
Shipping Height 0.080m
Shipping Length 0.190m
Shipping Cubic 0.008208000m3
