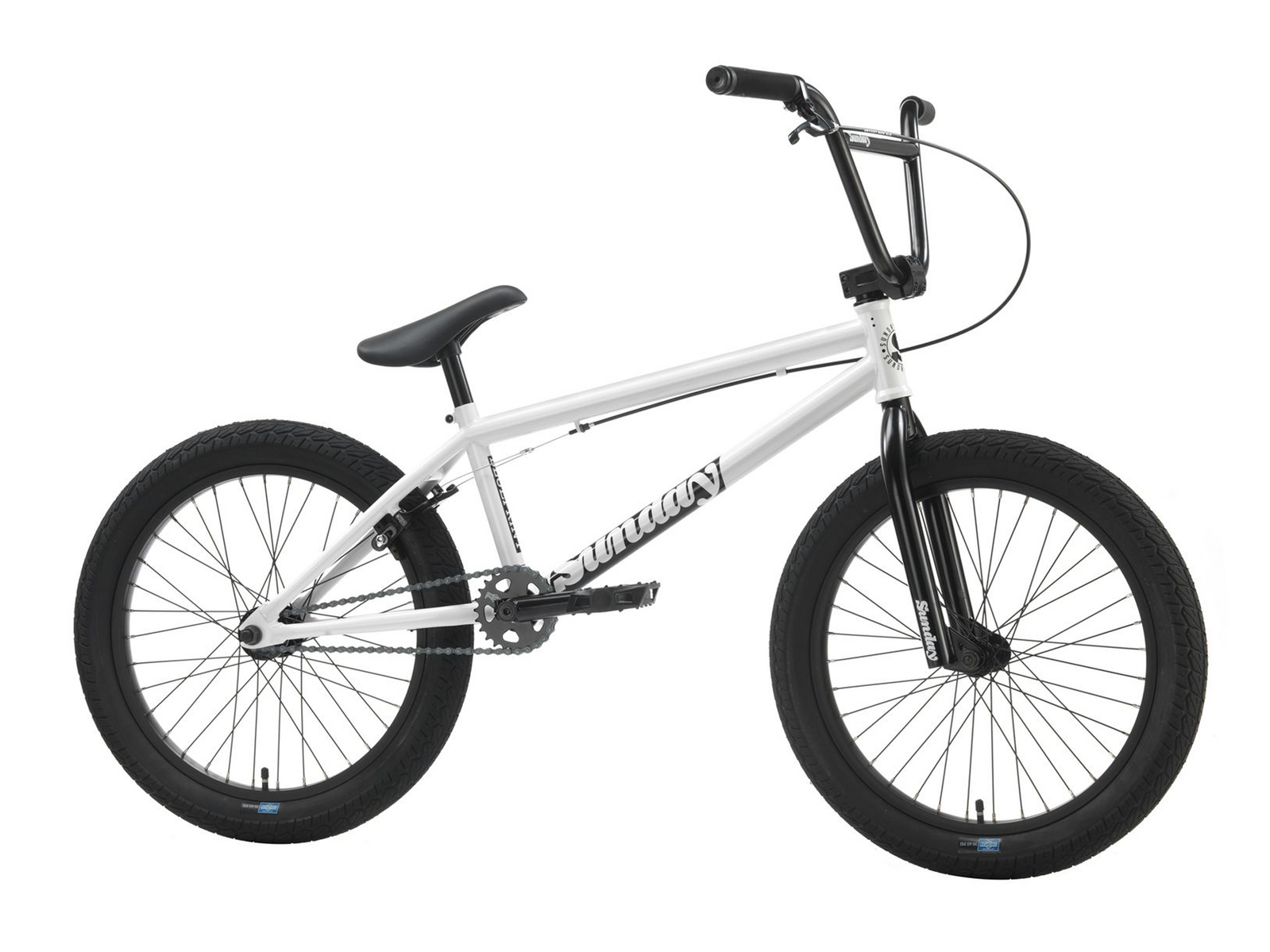

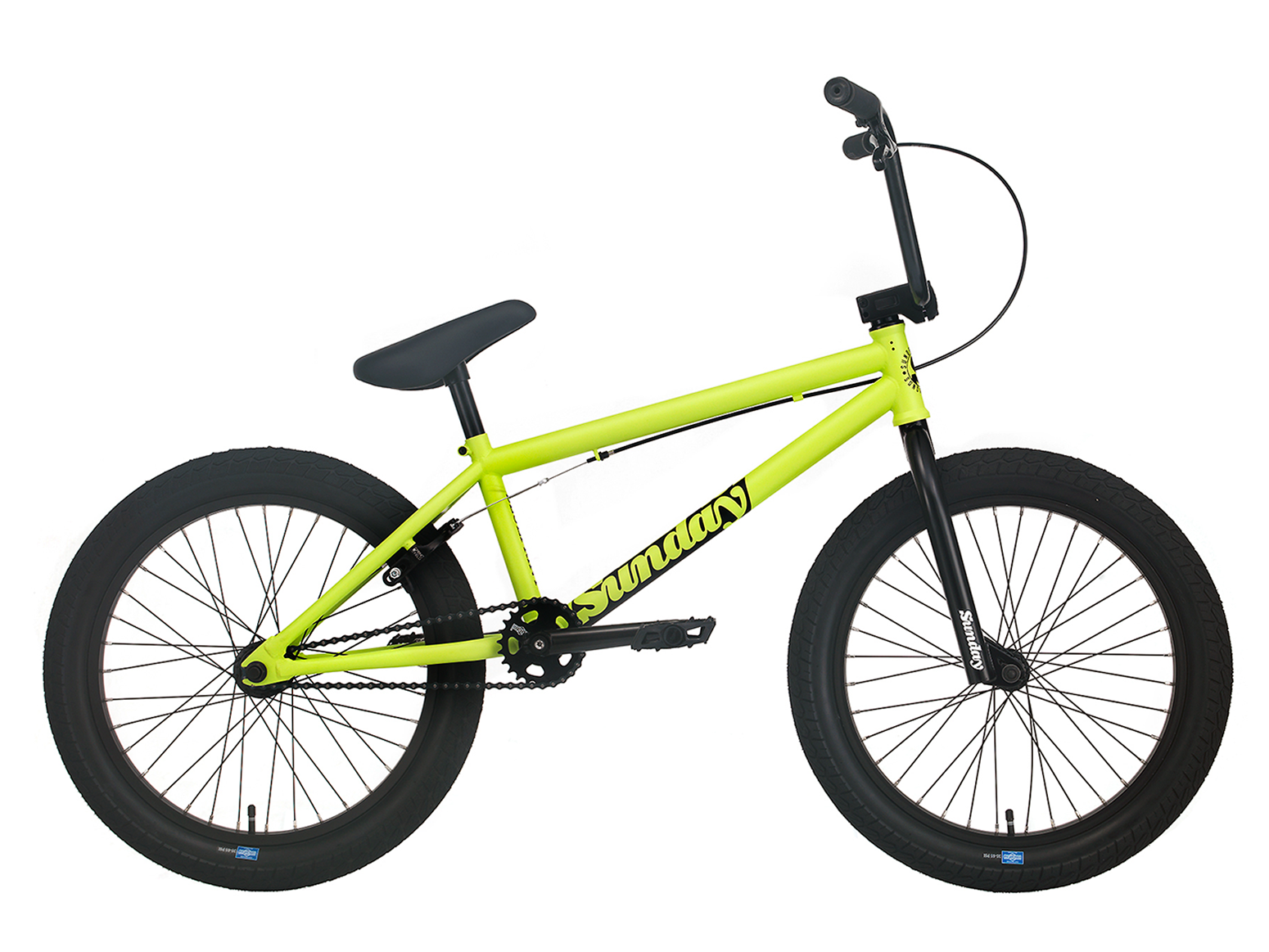

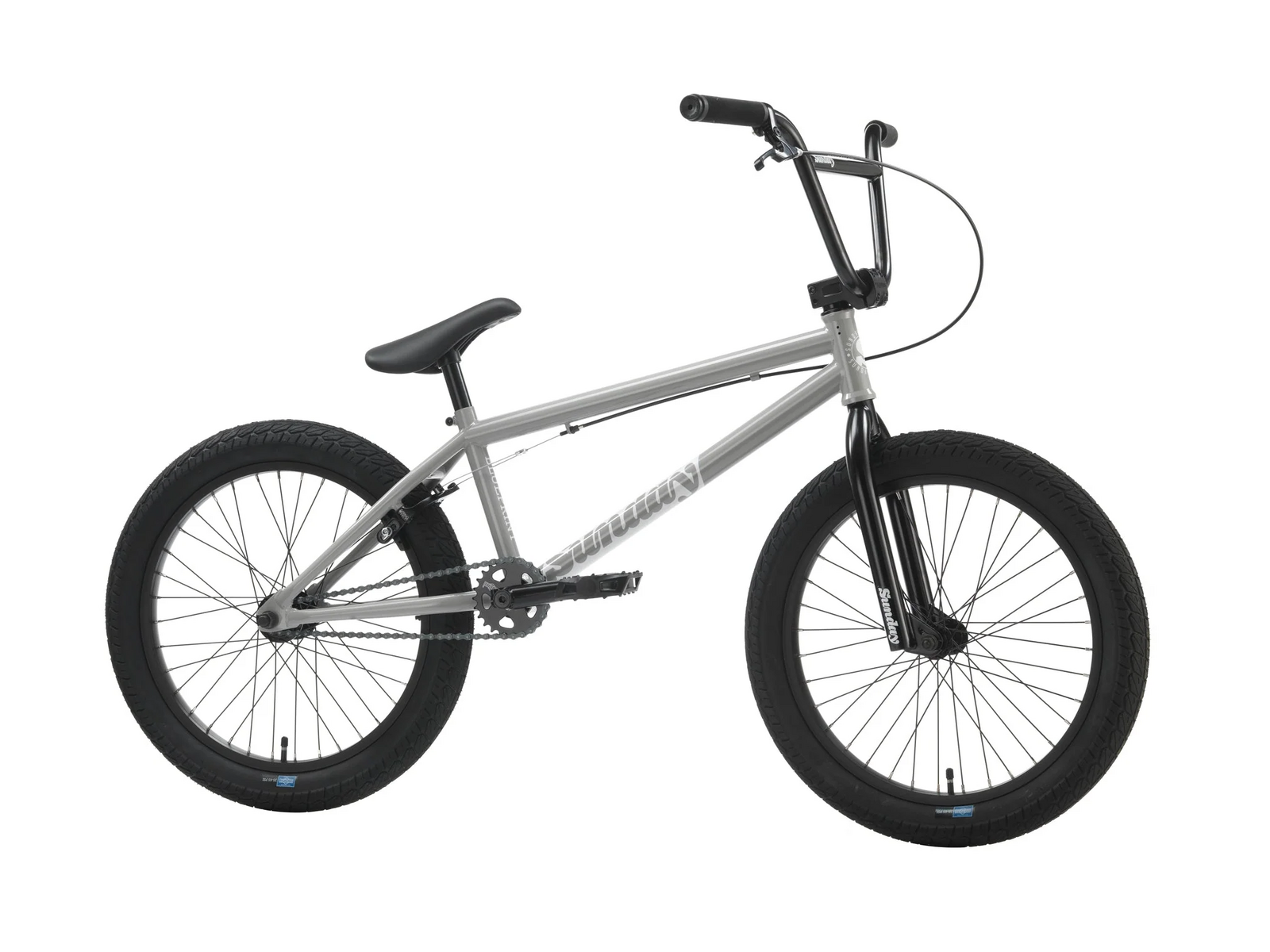

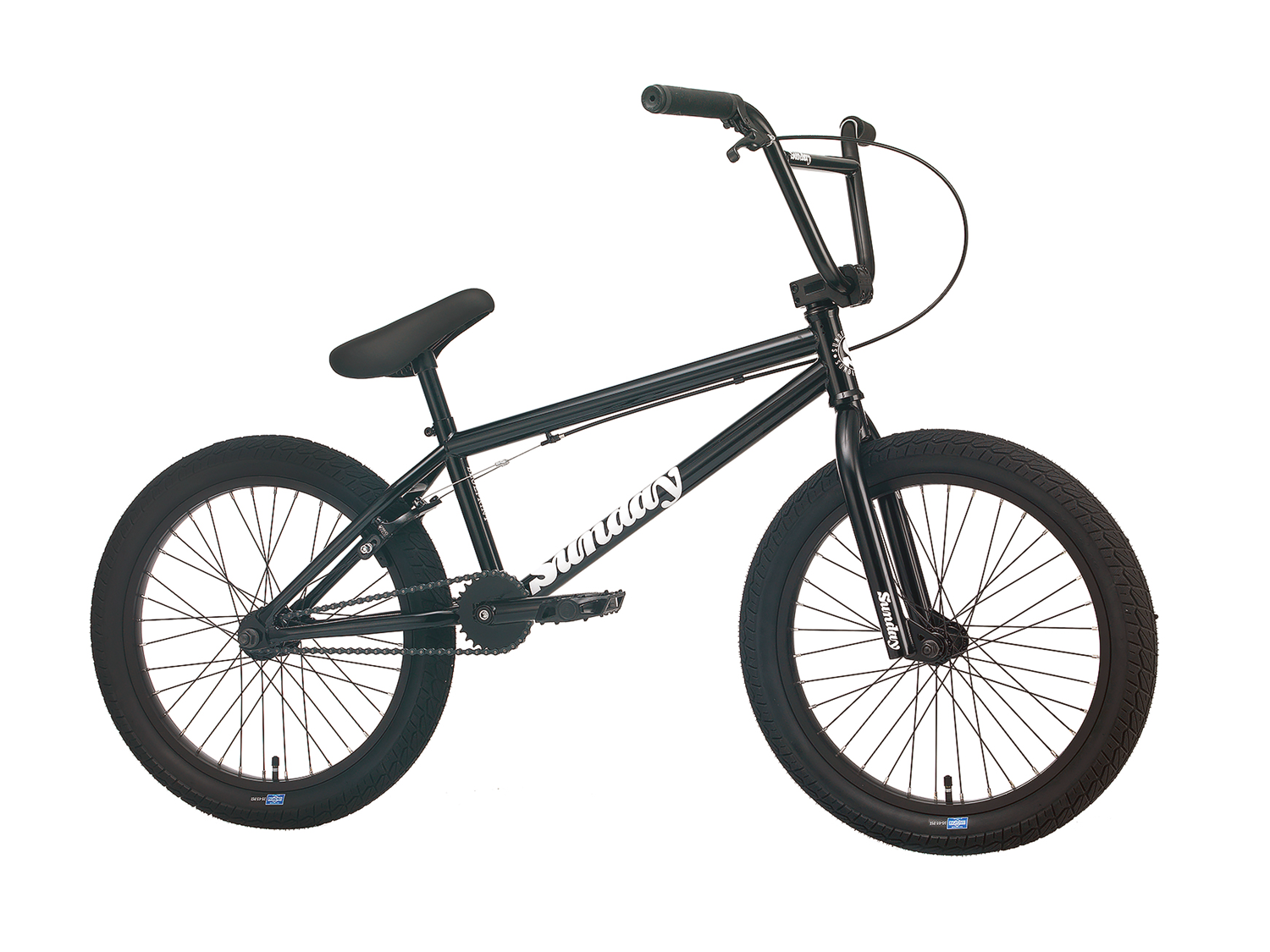

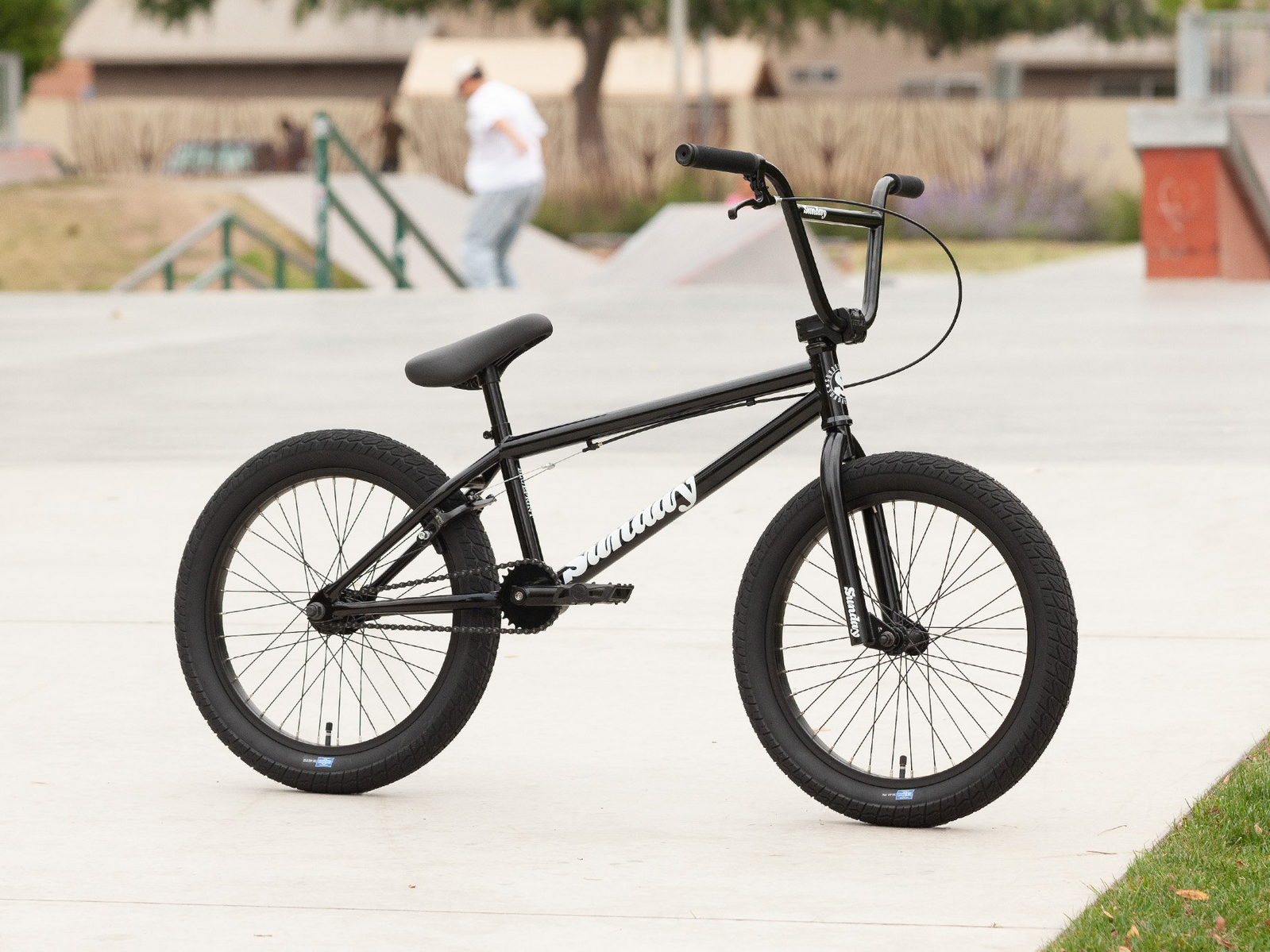

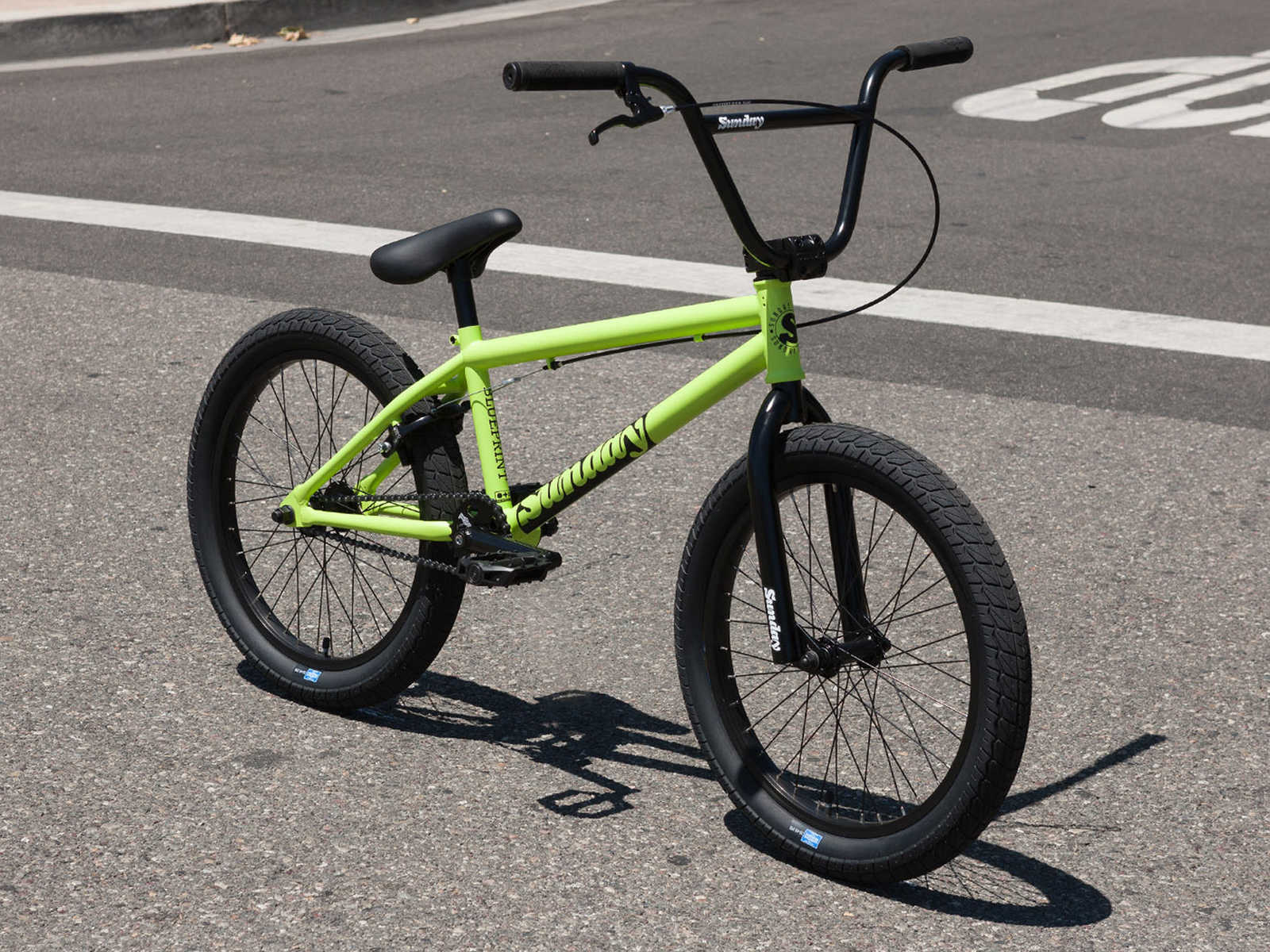

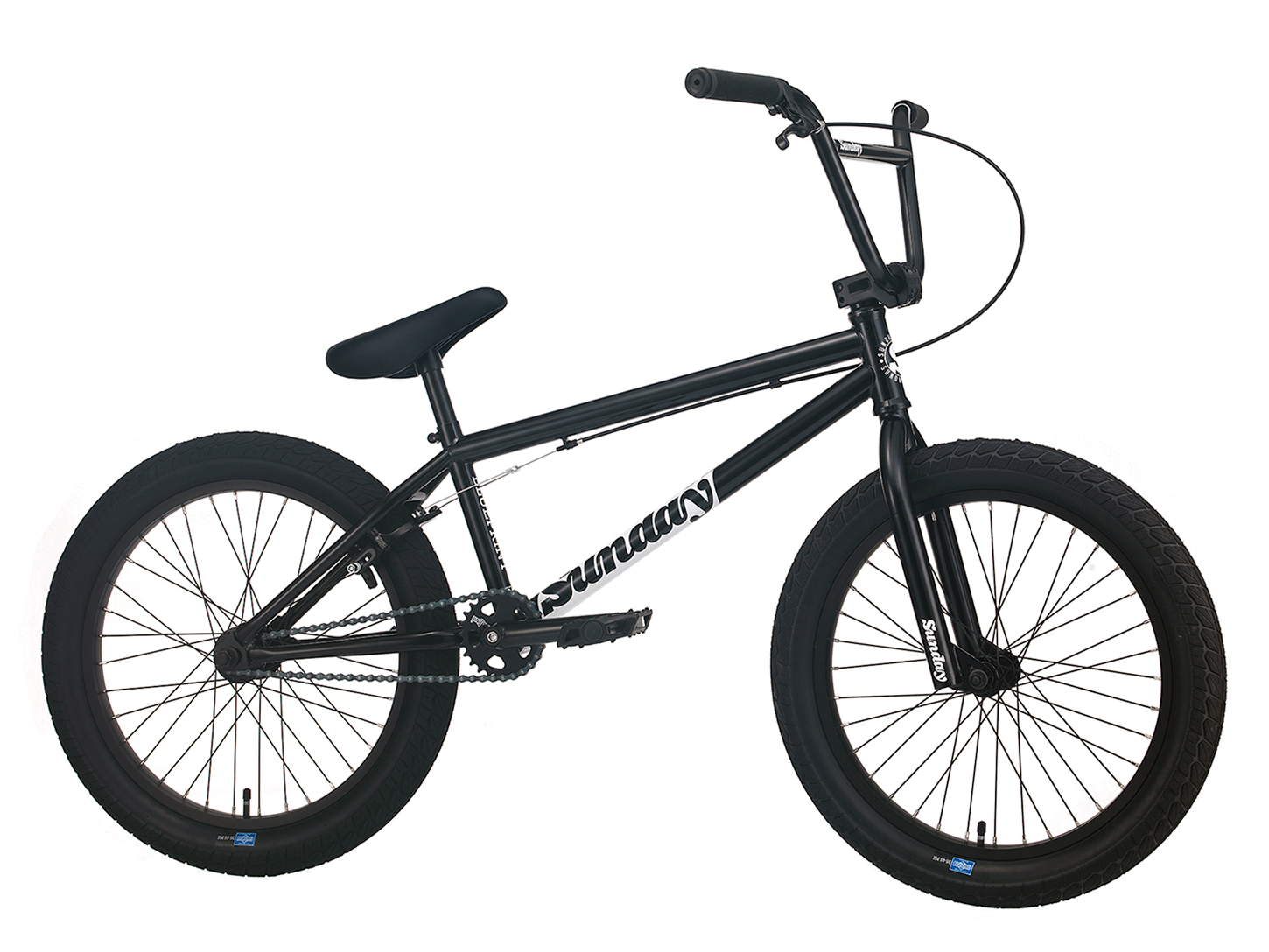

20" Blueprint 2023 Bike

The Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.



This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you focused on the important part - riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.



Key Features

  • Sunday Current v2 2.4"
  • Odyssey Springfield Brakes
  • FSA Integrated Headset
  • Sunday Cornerstone Grips
  • Sunday Freeze Front Load Stem
  • Sunday Sabretooth Sprocket
  • KMC S1 Chain

Specifications

  • Frame: Sunday Blueprint, 20"/20.5" top tube, integrated 1-1/8" head tube
  • Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load
  • Handlebar: Sunday, 2-piece

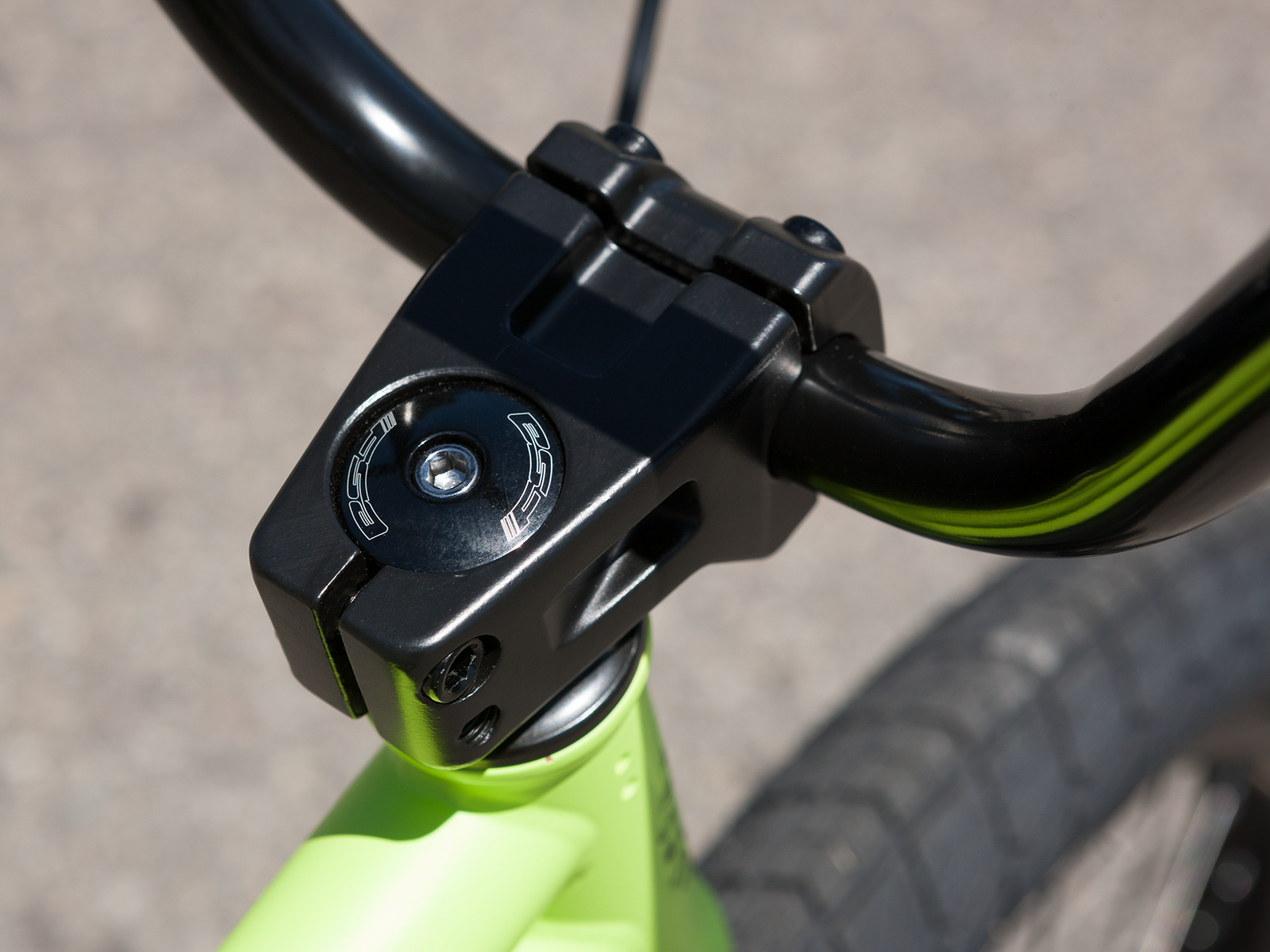

  • Stem: Sunday Freeze front load, 48mm
  • Headset: FSA integrated, 1-1/8"
  • Alloy Cap: FSA aluminum cap
  • Brake Lever: Aluminum, U-brake compatible

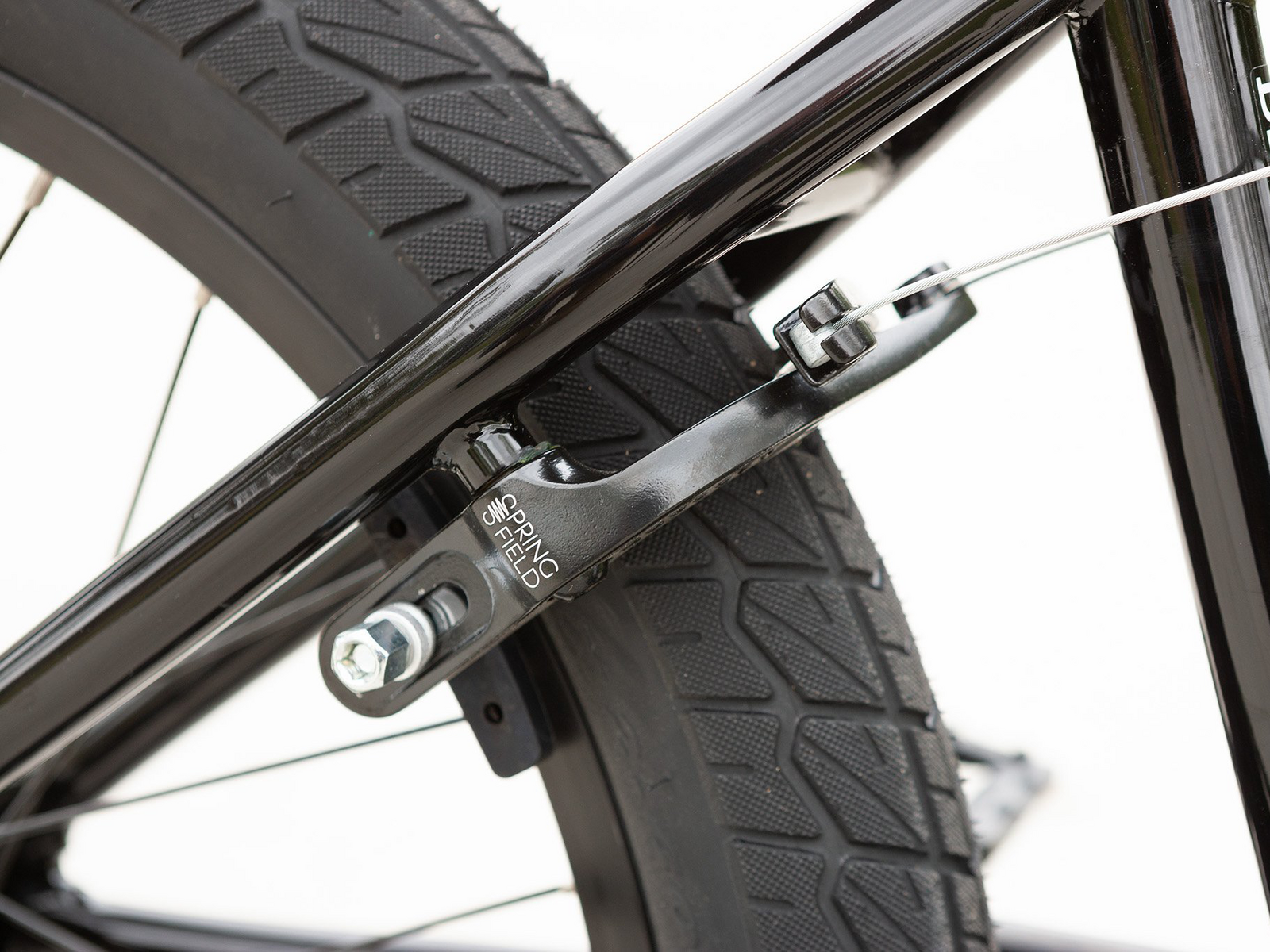

  • Brakes: Odyssey Springfield U-brake
  • Brake Cable: Odyssey Quik Slic

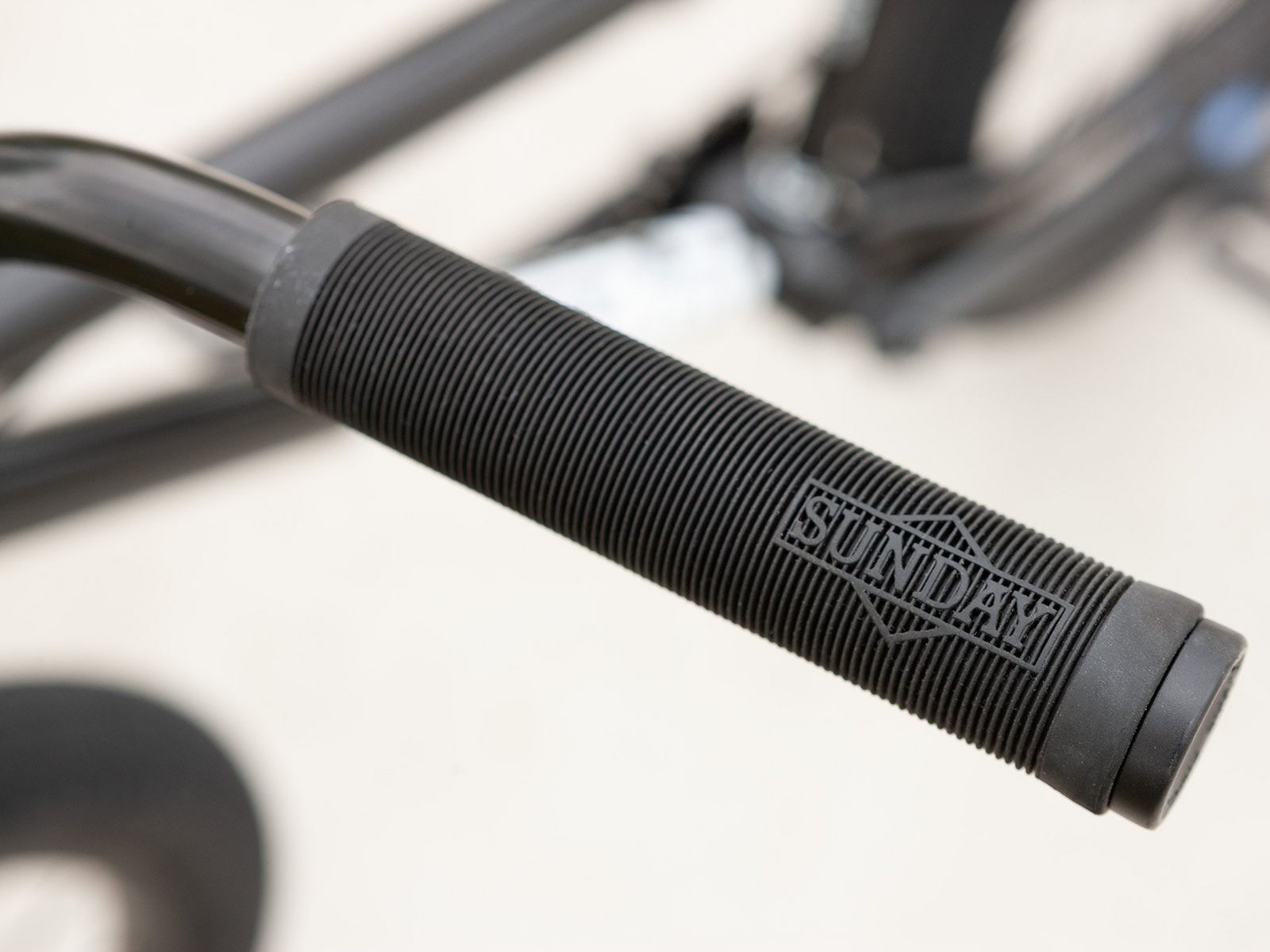

  • Grips: Sunday Cornerstone
  • Seat: Sunday Badge, seat and post combo
  • Seat Post: Integrated
  • Seat Clamp: Integrated
  • Sprocket: Sunday Sabretooth V2, 25T, steel
  • Cranks: 160mm, 3-piece, chromoly
  • BB Parts: Loose-ball, American, 19mm
  • Pedals: Wellgo platform, plastic
  • Rims: P-7X aluminum, 20", 36H
  • Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle

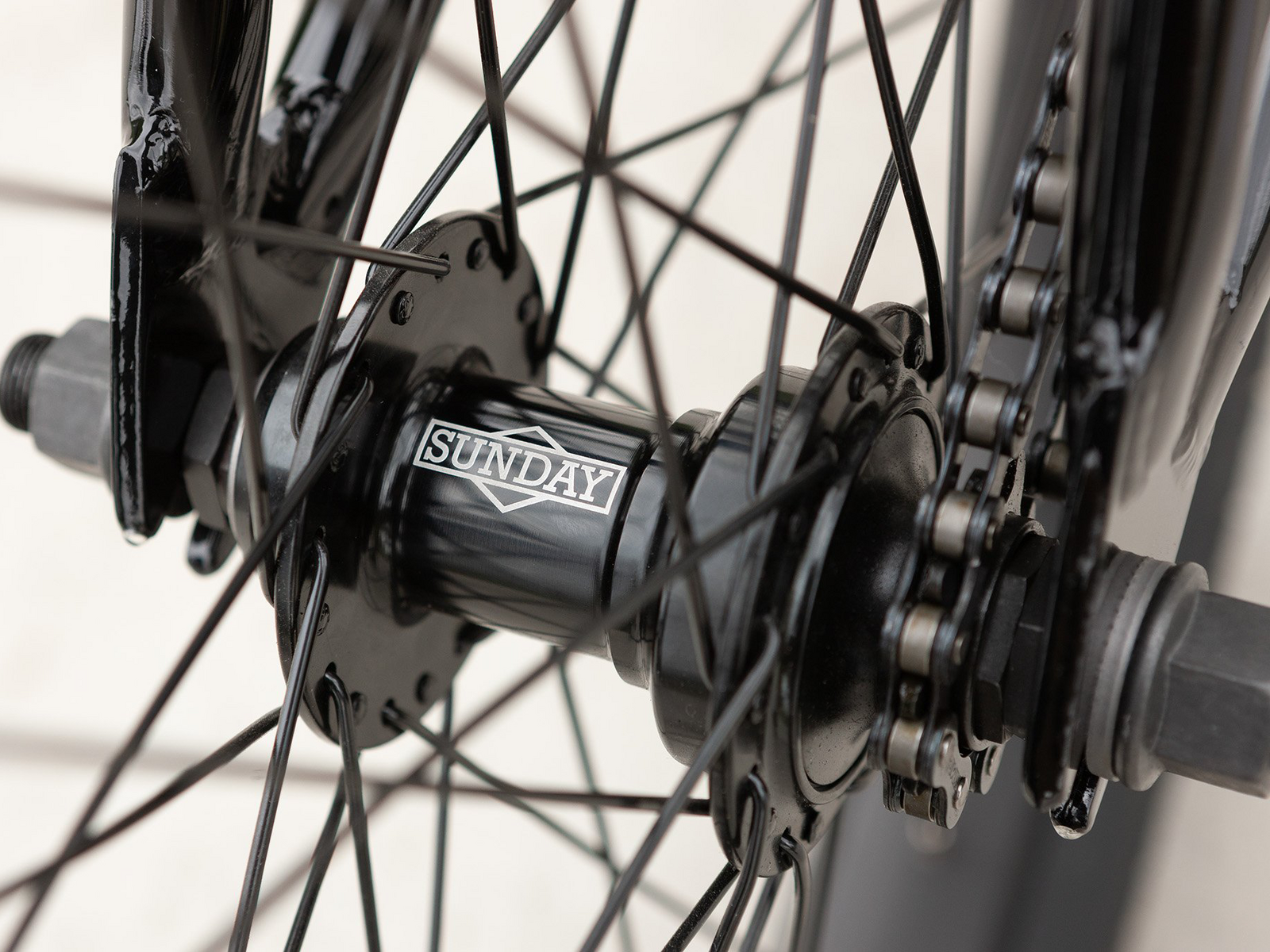

  • Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
  • Spokes: 14g steel, black

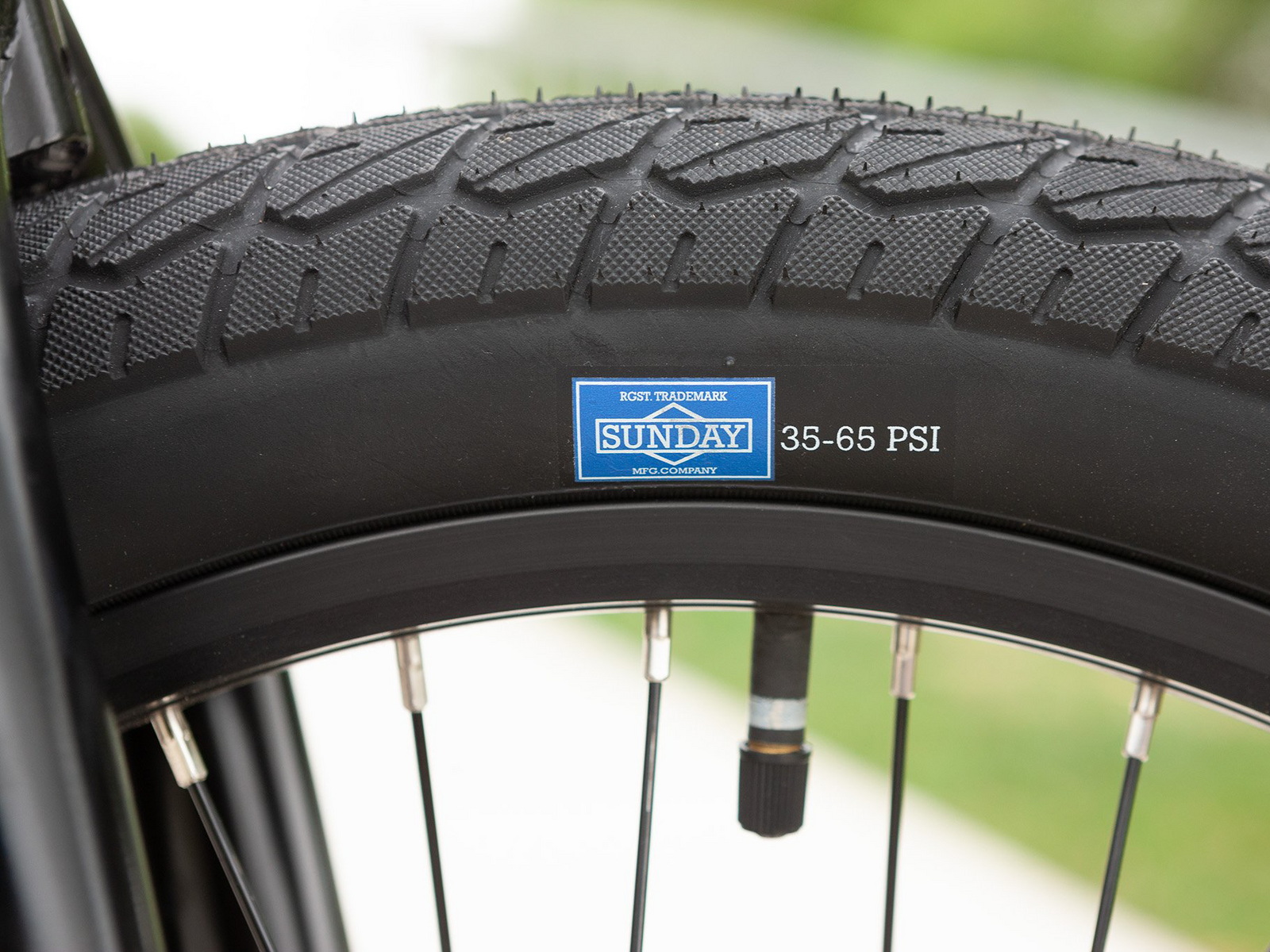

  • Tires: Sunday Current, 20 x 2.4" (F & R)
  • Chain: KMC S1
  • Approx. Weight: 11.7kgs (with brakes)

Frame Geometry

  • Top Tube Length: 20"/20.5"
  • Head Tube Angle: 75°
  • Seat Tube Angle: 71°
  • Chainstay Length: 13.2-13.5”
  • Bottom Bracket Height: 11.5"
  • Standover: 8.75"

Handlebar Geometry

  • Rise: 9"
  • Width: 28.5"
  • Backsweep: 12°
  • Upsweep: 4°
