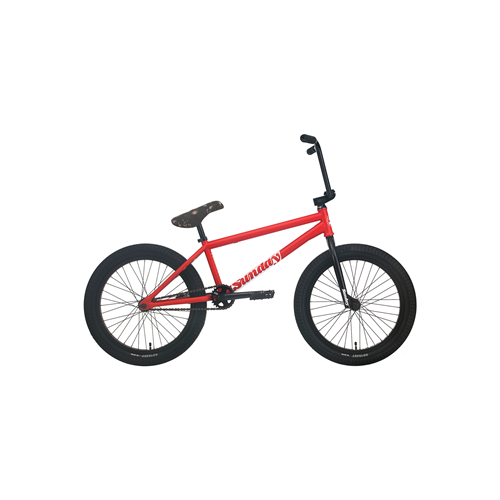

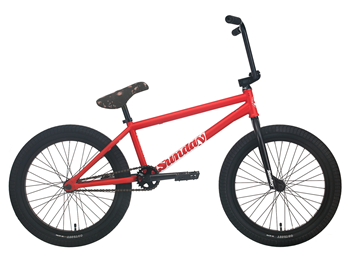

20" Forecaster (Brett Silva) 2023 Bike

The Forecaster is a model that rides, feels and looks like a pro-level bike and for 2022, it's been upgraded to a full 100% chromoly frame.

This one being Brett Silva's signature model. You’ll find Signature spec’d design cues like the Odyssey Broc Signature Grips, combined with incredible parts like Odyssey Twisted Pro pedals, and Path Pro tires.

A truly dialed bike for every style of riding. Follow @brettsilva.

Highlights

• 100% Chromoly Frame
• Sealed Front and Rear Hubs
• Odyssey Stage 1 Rims
• Removable Brake Hardware
• Sunday Seeley Signature Grips
• Odyssey Twisted Pro Pedals
• Sunday Freeze Top Load Stem
• Odyssey Springfield Brakes and Lever
• Odyssey Path Pro OEM 2.40" Tires
• Sunday Silva Pivotal Seat
• FSA Conical Headset

Specifications

• Frame: Sunday Forecaster, 20.75" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
• Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
• Handlebar: Sunday, 2-piece
• Stem: Sunday Freeze front load, 48mm
• Headset:  FSA integrated conical, 1-1/8"
• Alloy Cap: Sunday M16, aluminum
• Brake Lever:  Odyssey Springfield
• Brakes: Odyssey Springfield U-brake
• Brake Cable:  Odyssey Quik Slic
• Grips: Odyssey Broc Raiford

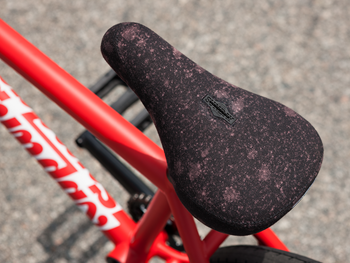

• Seat: Sunday Silva, Pivotal
• Seat post:  Sunday Pivotal
• Seat Clamp: Sunday

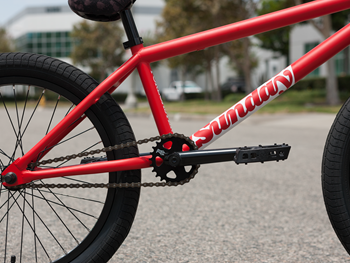

• Sprocket: Sunday Sabertooth v2, 25T, steel
• Cranks: 170mm, 3-piece, chromoly
• BB Parts: Sealed, Mid, 19mm
• Pedals: Odyssey Twisted PC Pro

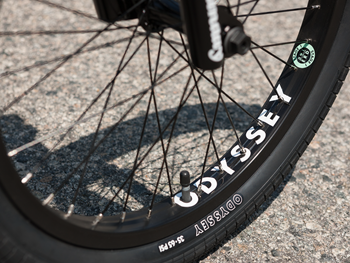

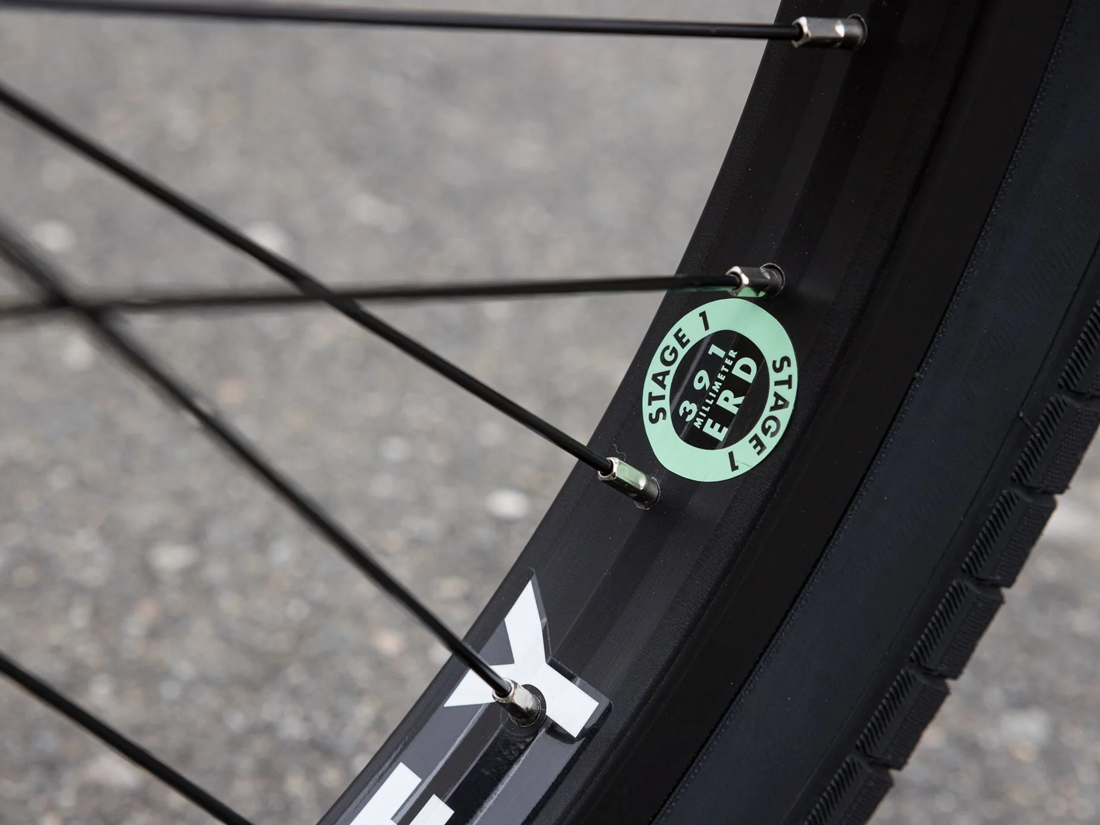

• Rims: Odyssey Stage 1, 20", 36H

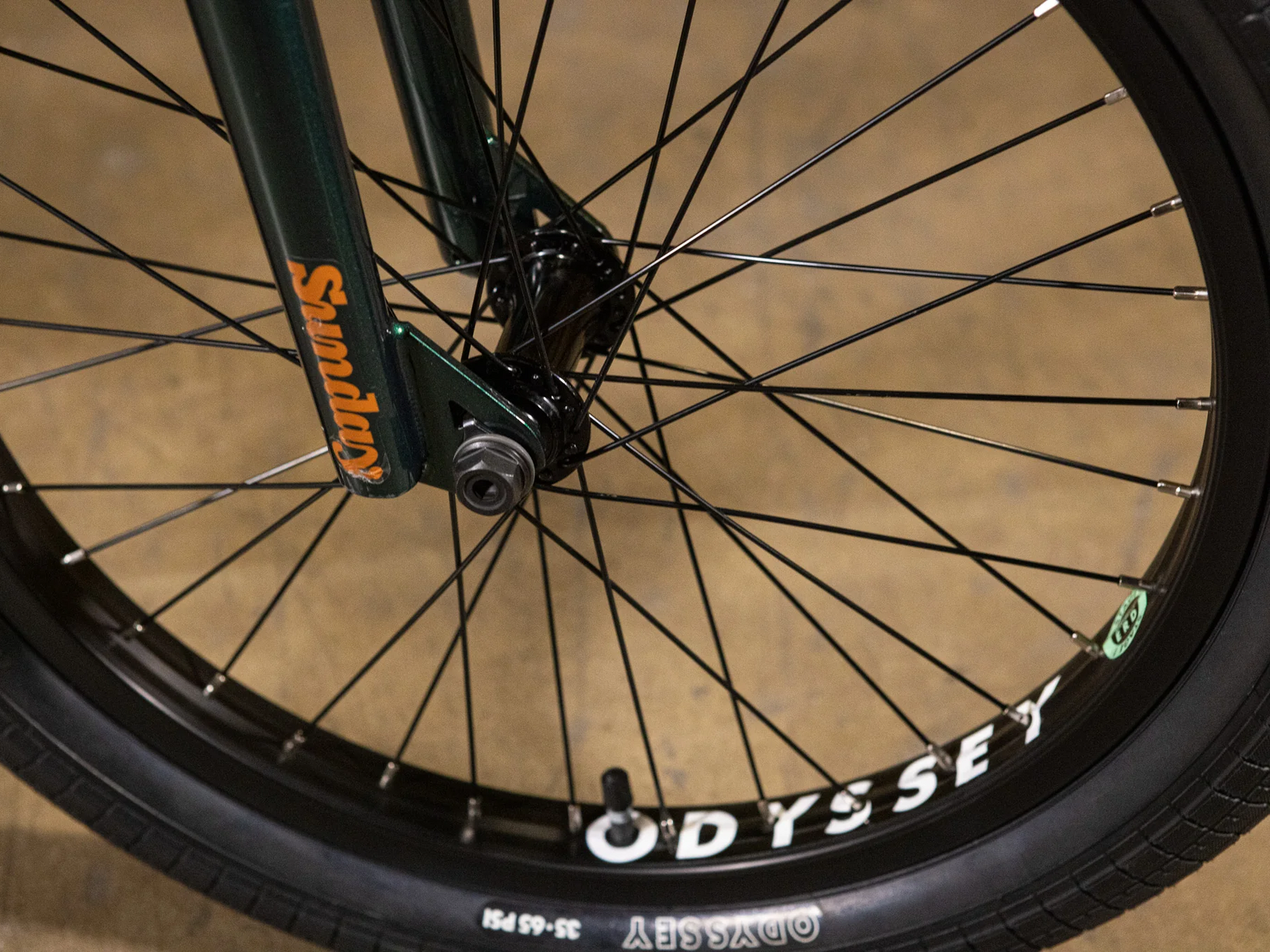

• Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
• Rear Hub: Sunday 36H, sealed, 14mm male axle w/ 9T Driver
• Spokes: 14g steel, black
• Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
• Chain: KMC Z1 wide
• Approx. Weight: 12.14kgs (with brakes)

Frame Geometry

• Top Tube Length: 20.75"
• Head Tube Angle: 75.5°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2-13.5”
• Bottom Bracket Height: 11.7"
• Standover: 9"

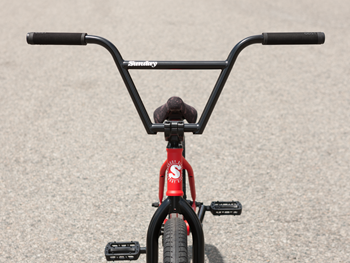

Handlebar Geometry

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
