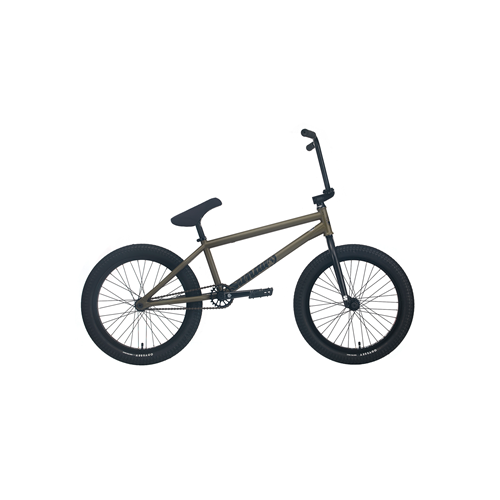

20" Wavelength (Young) 2023 Bike

All-new for this year is the Gary Young Wavelength complete.

This model features Gary’s new signature frame along with an amazing aftermarket parts package including right-hand, left-hand switchable Odyssey Calibur V2 Cranks, switchable Antigram V2 Cassette hub, Evo 2.5 brakes, Aitken Street tires and loads of aftermarket parts for a build similar to the previous Soundwave Special cassette bike.

Follow @garybyoung.

Key Features

• Sunday Wavelength 100% Chromoly Frame
• Sunday Darkwave 41-Thermal Forks
• Odyssey BROC 41-Thermal Bars
• Odyssey Calibur Cranks
• Odyssey Evo 2.5 Brakes
• Odyssey Antigram v2 Cassette
• Odyssey Vandero Pro Front Hub
• Odyssey Hazard Lite Rims
• Odyssey Aitken Street Tires

Specifications

• Frame: Sunday Wavelength, 21" TT, 100% chromoly, aftermarket frame, w/ removable brake hardware
• Fork: Sunday Darkwave, 20", 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
• Handlebar: Odyssey Super Highway Bar, 41-Thermal, aftermarket bar
• Stem: Sunday Freeze top load, 48mm
• Headset:  FSA integrated conical, 1-1/8"
• Headset Cap:  Sunday aftermarket, aluminum
• Brake Lever:  Odyssey Monolever
• Brakes: Odyssey Evo 2.5
• Brake Cable:  Odyssey Linear Quik Slic
• Grips: Odyssey Warnin'
• Seat: Odyssey Slugger Stitch, Pivotal
• Seat Post:  Odyssey Pivotal
• Seat Clamp: Sunday aftermarket
• Sprocket: Odyssey BOYD Sprocket, 25T
• Cranks: Odyssey Calibur V2, 170mm, 100% chromoly, RHD/LHD Compatible
• BB Parts: Sealed, Mid, 22mm
• Pedals: Odyssey Twisted PC Pro
• Rims: Odyssey Hazard Lite, 20", 36H
• Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
• Rear Hub: Odyssey Antigram V2 cassette, 36H, 14mm female axle w/ 9T driver, RHD/LHD Switchable, non-drive side plastic guard
• Spokes: 14g steel, black
• Tires: Odyssey Aitken Street, 2.45" (F & R)
• Chain: KMC Z1 eHX-W

Frame Geometry

• Top Tube Length: 21"
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Chainstay Length: 13.65"-14"
• Bottom Bracket Height: 11.5"
• Standover: 9"

Handlebar Geometry

• Rise: 9.5"
• Width: 29"
• Backsweep: 11°
• Upsweep: 1°
