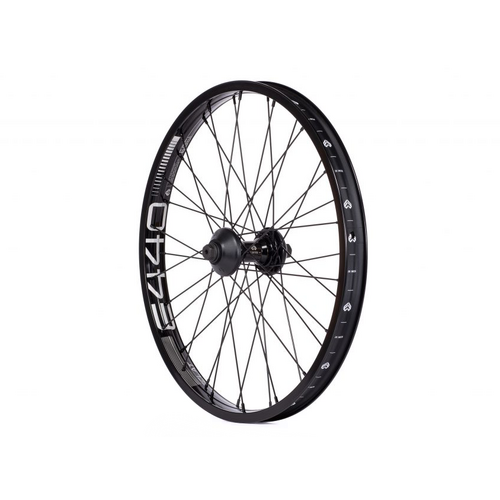

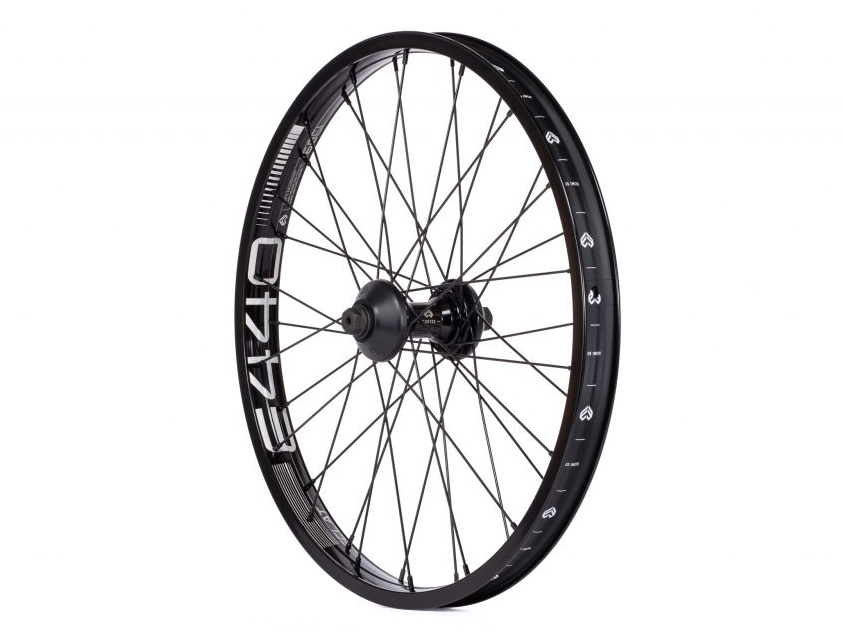

E440 Rim

The E440 Rim is the result of a two-year quest to make the lightest possible rim, that could still hold up to the pure savagery that Eclat's PRO team put their wheels through. Weighing in at a measly 440g, the E440 is a great ‘lighter weight’ solution for riders wanting a tough, dependable rim that helps reduce rotational weight.

Tested to destruction by Jordan Godwin and Jordan O’kane during all of 2019, these rims are designed to hold up to even the most brutal of riding conditions.

The E440 Rim is also available as a complete wheelset laced up to Eclat's game-changing Seismic Hub set, making what they can honestly say is the most advanced BMX wheelset ever laced up.

Material

6061-T6 alloy, flash welded

Size

34 x 16mm 36h only

Features

• super stiff street rim with unique rim profile

• strong, lightweight double wall design

• very thick side walls less likely to dent on hangups

• taller profile for ridgidity but straight side walls for brake use

Weight

440g

Cortex Front Hub

Much like Eclat's Freecoaster, the Cortex front hub was designed for the streets. Using the same proven narrow flange spacing as their famous Dynamic front hub, the Cortex comes out of the box with x2 Nylon fibreglass hubguards which are long lasting and replaceable for a very low cost. This hub has been tested by the team over the past year and is designed to keep you grinding on and on and on…

This hub features a longer 35mm bolt to accommodate plastic pegs and for a stronger female bolt setup.


Material:

6061-T6 alloy refined hub-shell

Axle:

4130 crmo female axle. 3/8″ threadBearings:

2 sealed high-quality bearings

Spokes:

36h

Features:

allen key inner axle for easy maintenance / narrow flange for better spoke clearance when grinding

Measurements:

PCD: 38mm, Flange offset 26.75mm

Weight:

302g
