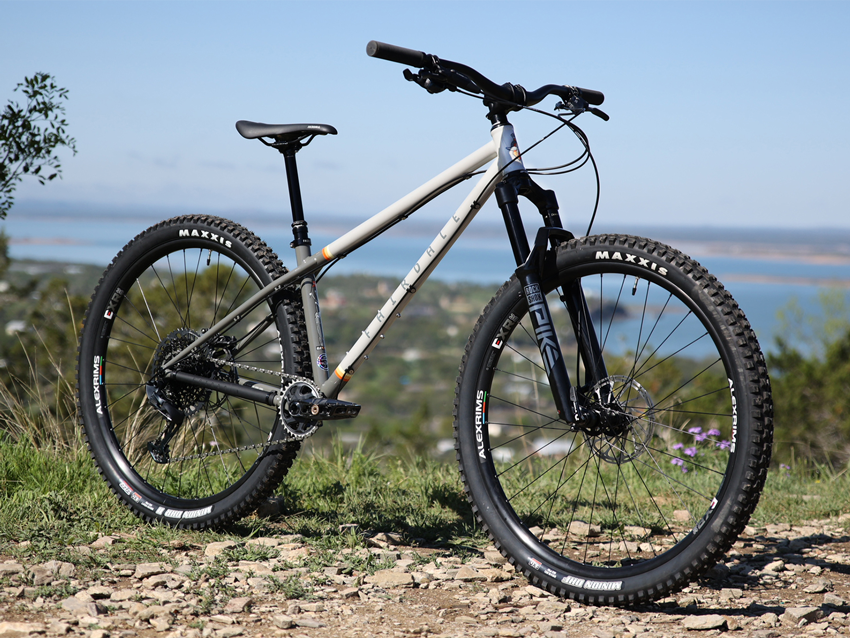

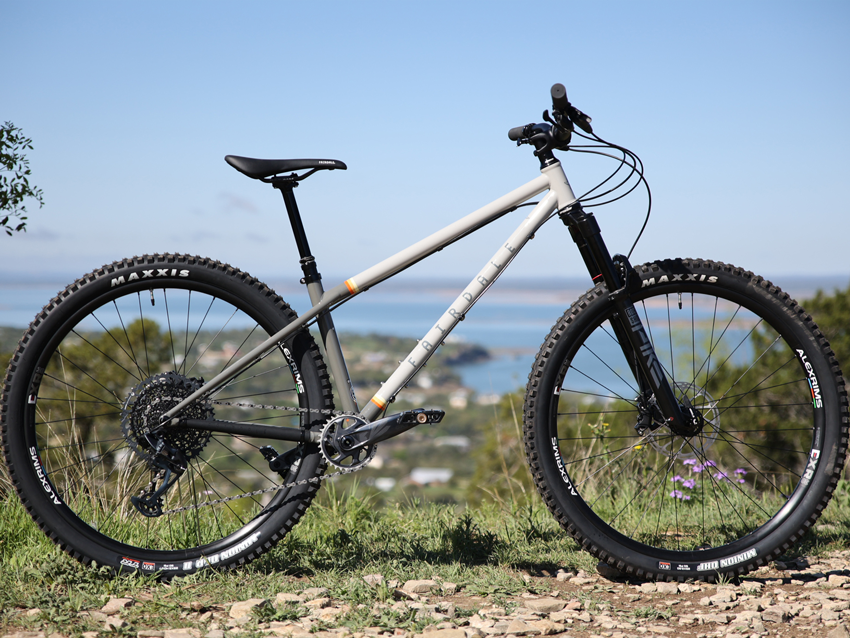

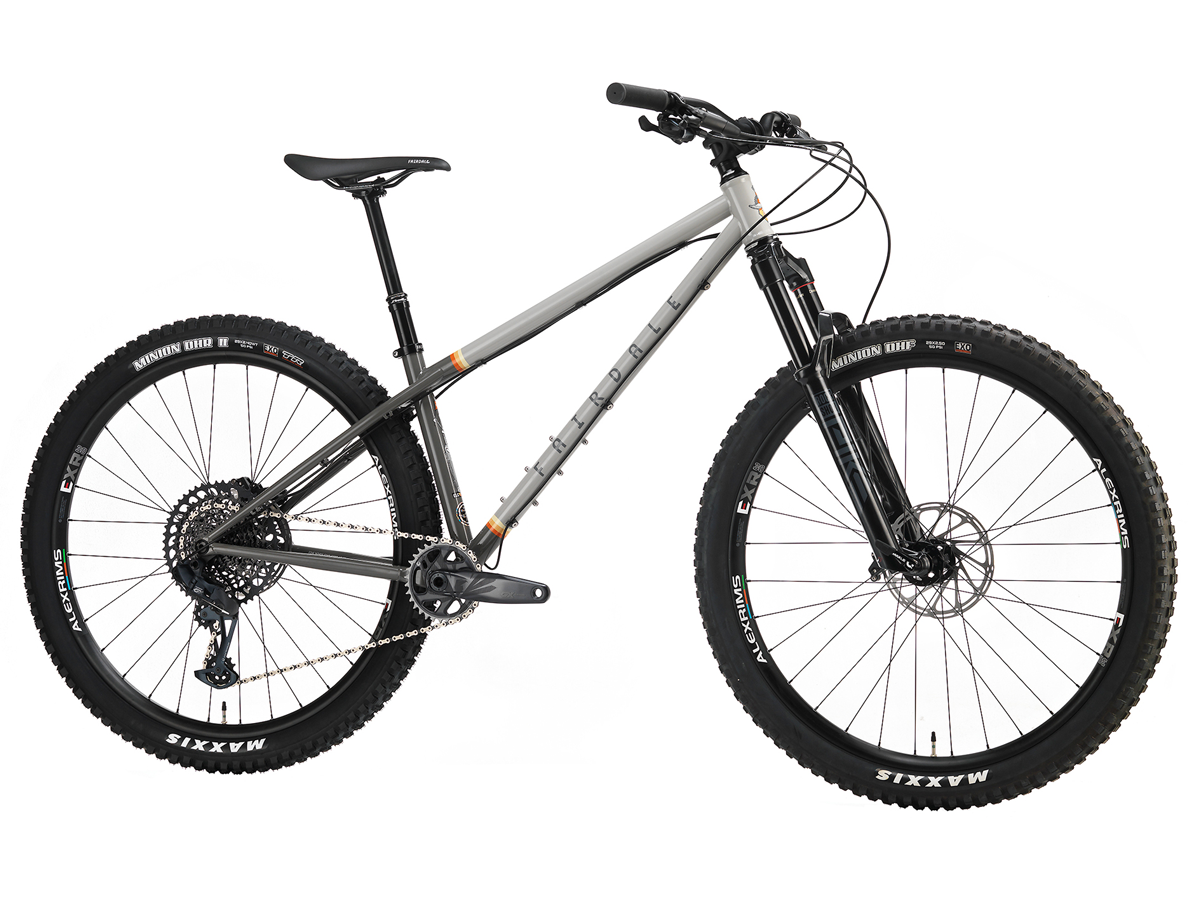

Fairdale 29" Elevator 2025 Bike Gloss Battleship Grey
$4,999.99
In Stock
Fairdale is happy to introduce the Elevator; A 29" hardtail mountain bike that comes fully equipped with a SRAM GX Eagle groupset, a RockShox Pike fork, Alex wheels, Maxxis tyres and more.
The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.
As always, making the ride fun is Fairdale's main priority. This is a bike that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.
Features

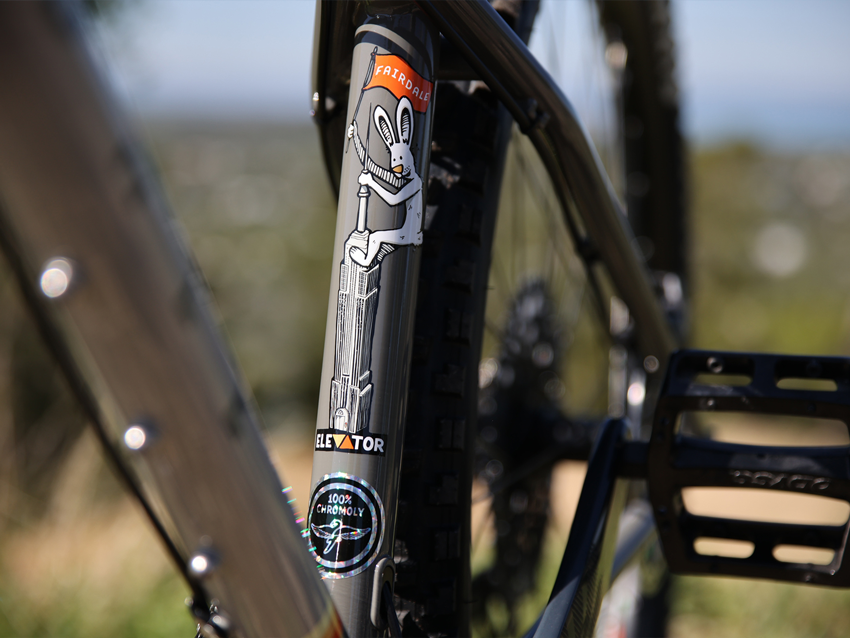

- 100% 4130 chromoly 29” rigid frame
- Highly maneuverable BMX-inspired geometry
- Investment cast yoke allows for extra short chain stays and 2.5” tyre clearance
- External brake, derailleur, and dropper post routing with removable hardware
- Extensive hardware for bottles, accessories and ISCG mounting
Specifications
Sizing
Medium - 5'7" - 5'10" height
Large - 5'9" - 6'1" height
Frame - Fairdale Elevator Frame with SRAM UDH

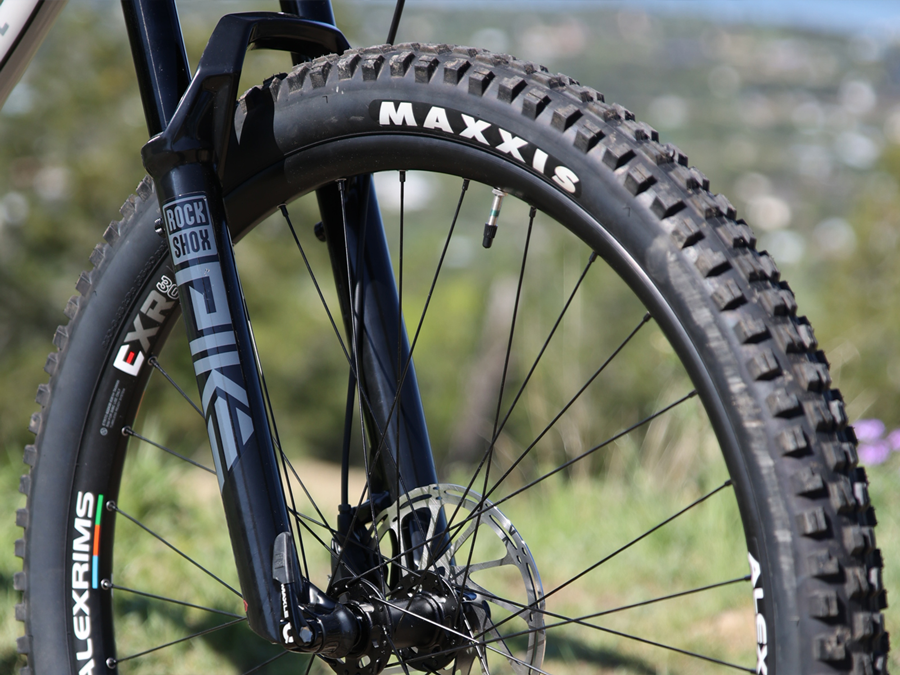

Fork - RockShox - Pike, 130mm Travel, 44mm Offset, 15mm x 110mm Boost Spacing
Handlebar - 30mm Rise, 9° Back, 5° Up, 35mm clamp, 7000 series AL
Stem - 50mm, 35mm Bore
Headset - FSA Orbit ITA

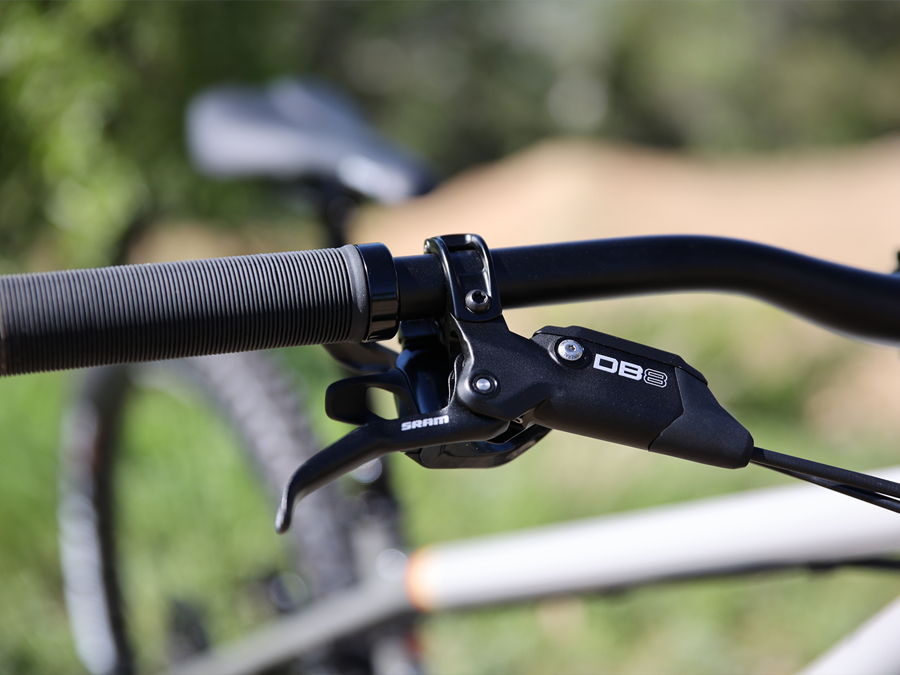

Brake Lever - SRAM DB8 Hydraulic

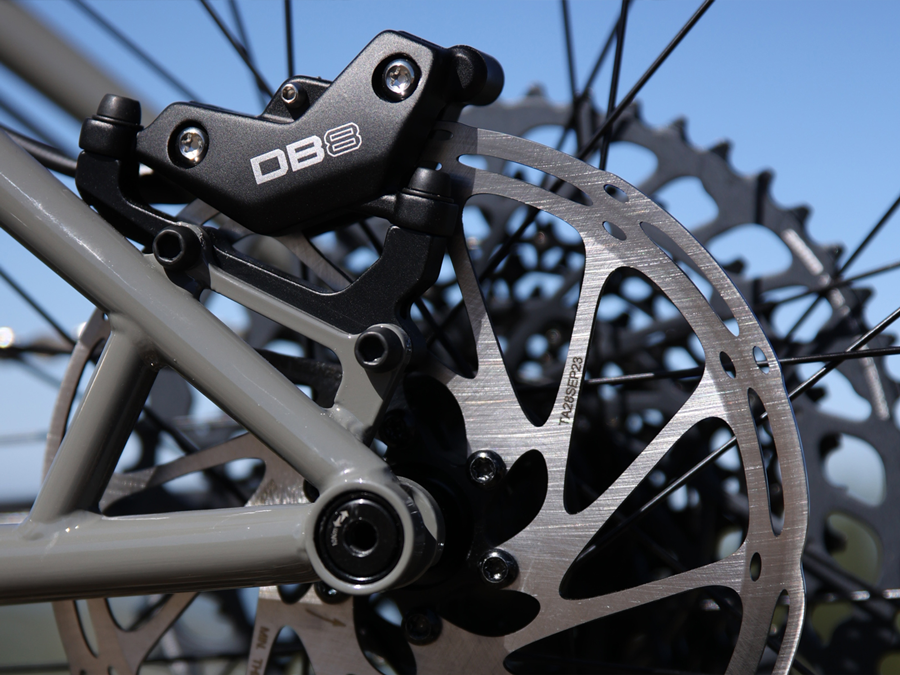

Brakes - SRAM DB8 Hydraulic
Grips - Lock-on
Saddle - Fairdale

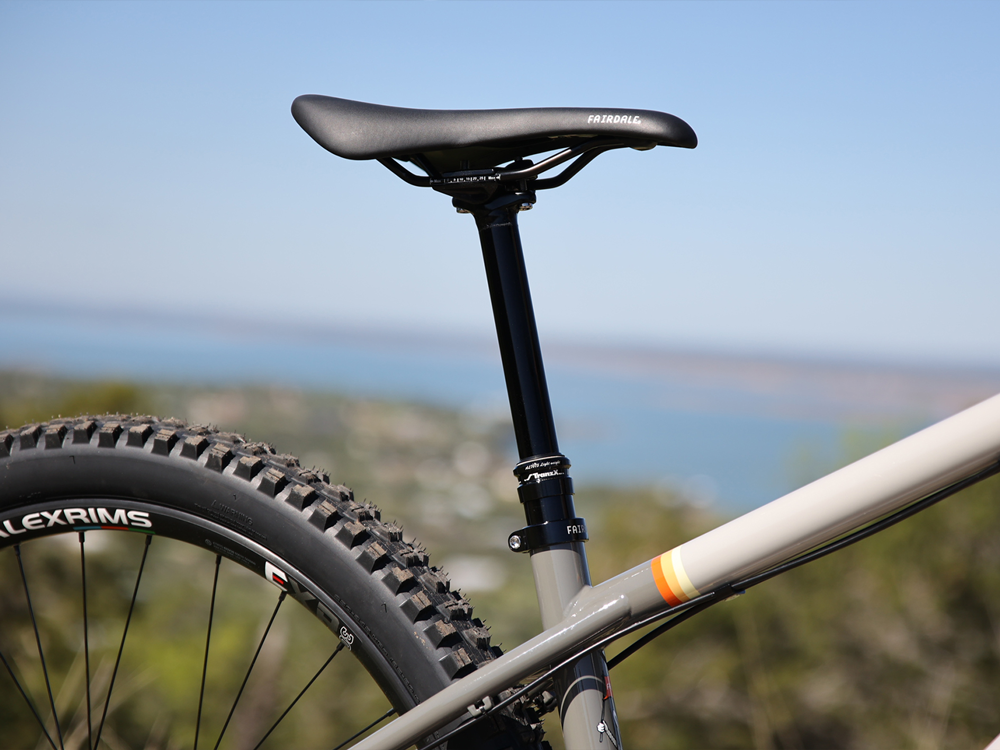

Seat Post - TranzX Kitsuma Dropper Post (150mm M, 170mm L)
Seat Clamp - 35mm Fairdale Clamp

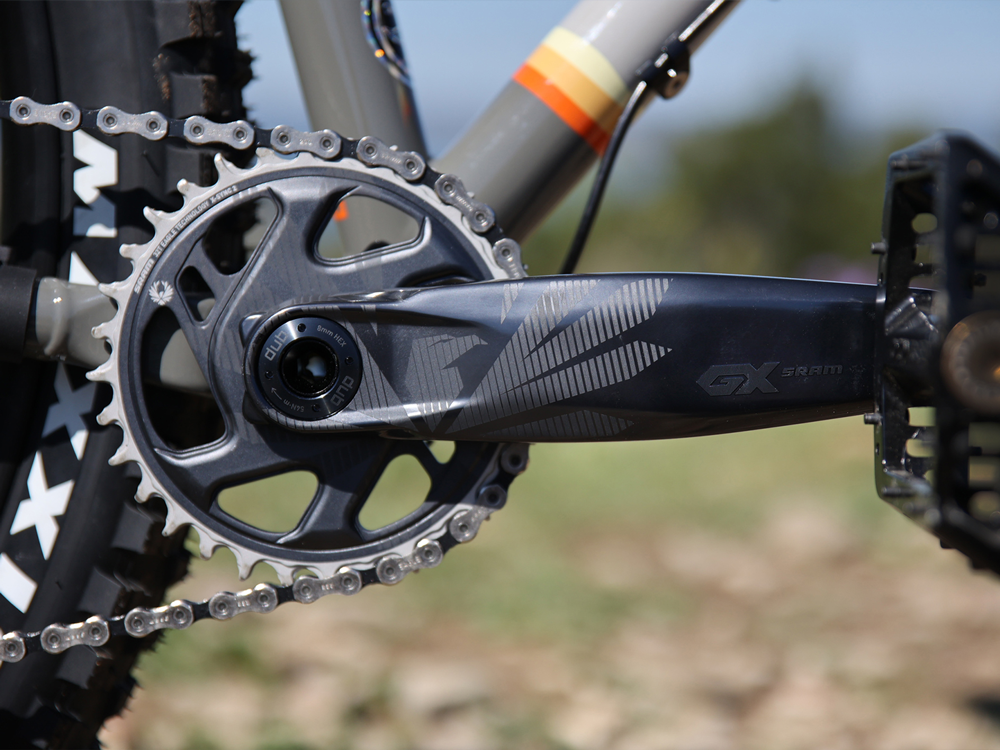

Cranks - SRAM GX, 170mm, DUB, Boost
Chainwheel - 32T X-SYNC™2
BB Parts - DUB, BSA
Pedals - Odyssey Twisted Pro PC
Rims - Alex EXR 30
Front Hub - Bear Pawls, 32H, Sealed, 6-Bolt, 15x110mm BOOST
Rear Hub - Bear Pawls, 32H, Sealed, 6-Bolt. 12x148mm BOOST, SRAM XD Driver
Front Tyre - Maxxis Minion DHF, 29 x 2.50WT, Dual Compound, EXO
Rear Tyre - Maxxis Minion DHR II, 29 x 2.40WT, Dual Compound, EXO/TR
Chain - GX Eagle, 12-speed
Cassette - GX Eagle, 10-52T, 12-Speed, Black
R. Shift Lever - SRAM GX EAGLE Trigger, X-actuation, 12-speed
R. Derailleur - SRAM GX EAGLE, Long Cage
Geometry
Fork Travel - 130mm
Fork Axle-to-crown - 541mm
Fork Offset - 44mm
Wheelbase - 1177mm (Medium) & 1200mm (Large)
Front-Center Length - 776mm (Medium) & 799mm (Large)
Top Tube (Effective) - 620mm (Medium) & 639mm (Large)
Seat Tube (BB Center To TT Center) - 380mm (Medium) & 400mm (Large)
Seat Tube Angle - 76°
Head Tube Length - 102mm (Medium) & 112mm (Large)
Head Tube Length (W/Lower Headset Cup) - 115mm (Medium) & 125mm Large
Head Tube Angle - 65.5°
Chain Stay Length - 406mm
Standover - 729mm (Medium) & 745mm (Large)
Stack - 627mm (Medium) & 636mm (Large)
Reach - 463mm (Medium) & 482mm (Large)
BB Drop - 50mm
Rear Dropout Spacing (Boost Thru-Axle) - 12x148mm
Derailleur Hanger - SRAM UDH
BB Type - 73mm Threaded
Seat Post (Dropper Ready) - 31.6mm
Seat Clamp - 35mm
Rear Tyre Max Clearance - 29x2.50"
Sprocket Max Clearance - 32-T Round
Brake Rotor Clearance (IS Mount) - 203mm
Wheel Size - 29"
