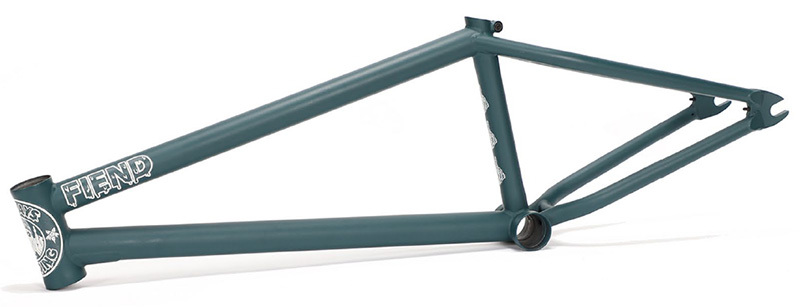

Designed by Garrett Reynolds. Constructed from heat-treated 4130 chromoly with an internal gusset in the toptube and an external gusset on the downtube. The frame’s tubing is double butted with a heat-treated Mid BB shell and headtube, externally butted seat tube with integrated post clamp and integrated chain tensioners. This frame has a stand over height of 9” and is available with removable seat stay brake mounts and cable guide which are sold separately.

New for th3 V3 are elevated chain stays and an updated 8mm dropouts with a new shape for hang free grinds. Chainstay length has also been shortened to 12.75".

12.75" chain stay length
75.5 degree head tube angle
71 degree seat tube angle
9" stand over height (bottom bracket to top tube, centre to centre)
BB 11.625"
Internally gusseted double-butted top tube
Double butted down tube
Integrated chain tensioners and post clamp
Weighs 5lbs / 2.26kg for the 20.75"
Brake mounts sold separately

(28985)

SKU 28985
Brand FIEND
Shipping Weight 3.0000kg
Shipping Width 0.180m
Shipping Height 0.350m
Shipping Length 0.950m
Shipping Cubic 0.059850000m3
