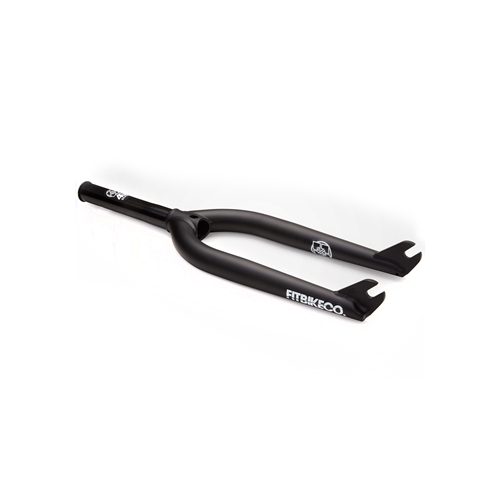

Shiv V.3 Fork

Fit's goal was to design and produce an extremely strong fork with plenty of tire clearance. After 2 years of R&D and a lot of investment in tooling, the Shiv V.3 is available with a quick 25mm offset. Here are a few features that make these forks so strong.

  • Using left and right specific investment cast drop-outs instead of traditional Cr-Mo plate, we’ve eliminated the weld gap on the inside of the drops, and were able to thicken up the drops toward the top making a much stronger drop-out/leg connection.
  • Seamless, swaged legs provide more strength than welded or fused caps-especially if pegs are installed. The ends of these legs are formed, not capped and welded so there is nothing to fracture.
  • A longer 166mm CNC’d steerer tube with increased wall thicknesses wherever possible and a 24mm x 1.5 compression cap with integrated race.
  • Tapered and butted legs provide tons of strength, crown weld surface, and peg clearance./li>
  • Post weld 4Q Baked heat-treatment
  •

SPECS >

  • Legs
  • Dropouts
  • Steerer Tube
  • Steerer Tube Length
  • Compression
  • Axle to Crown
  • Offset
  • Weight
  • Heat Treat
  • Seamless Swaged (No Welded Cap)
  • Investment Cast
  • 1 Piece CNC-Machined 4130 CrMo
  • 166mm
  • M24 X 1.5 Thread – 6mm Allen Slot
  • 320mm
  • 25mm
  • 2.25 lb (1.02 kg)
  • 4Q Baked Post-Weld






(FTFO004)

SKU FTFO004
Brand FIT BIKE CO
Shipping Weight 1.5000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.800m
Shipping Cubic 0.006000000m3
