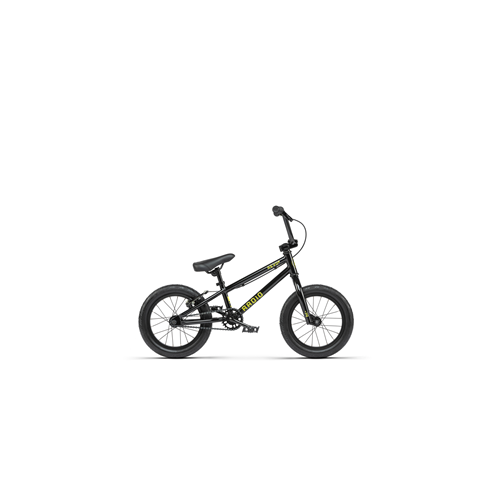

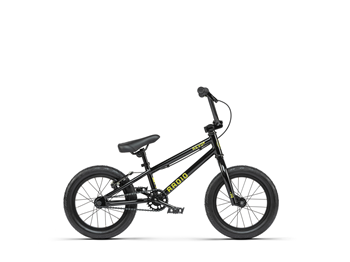

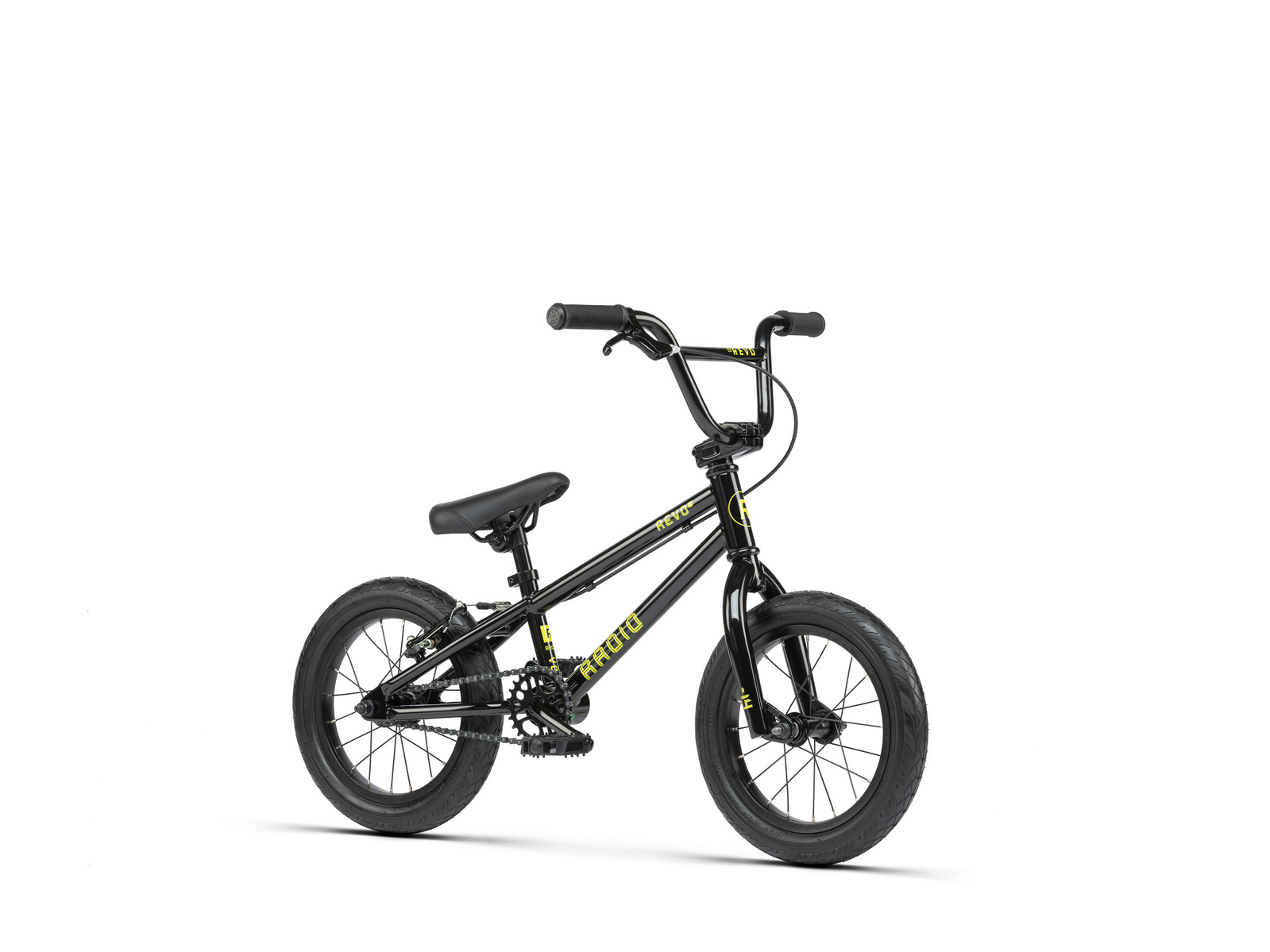

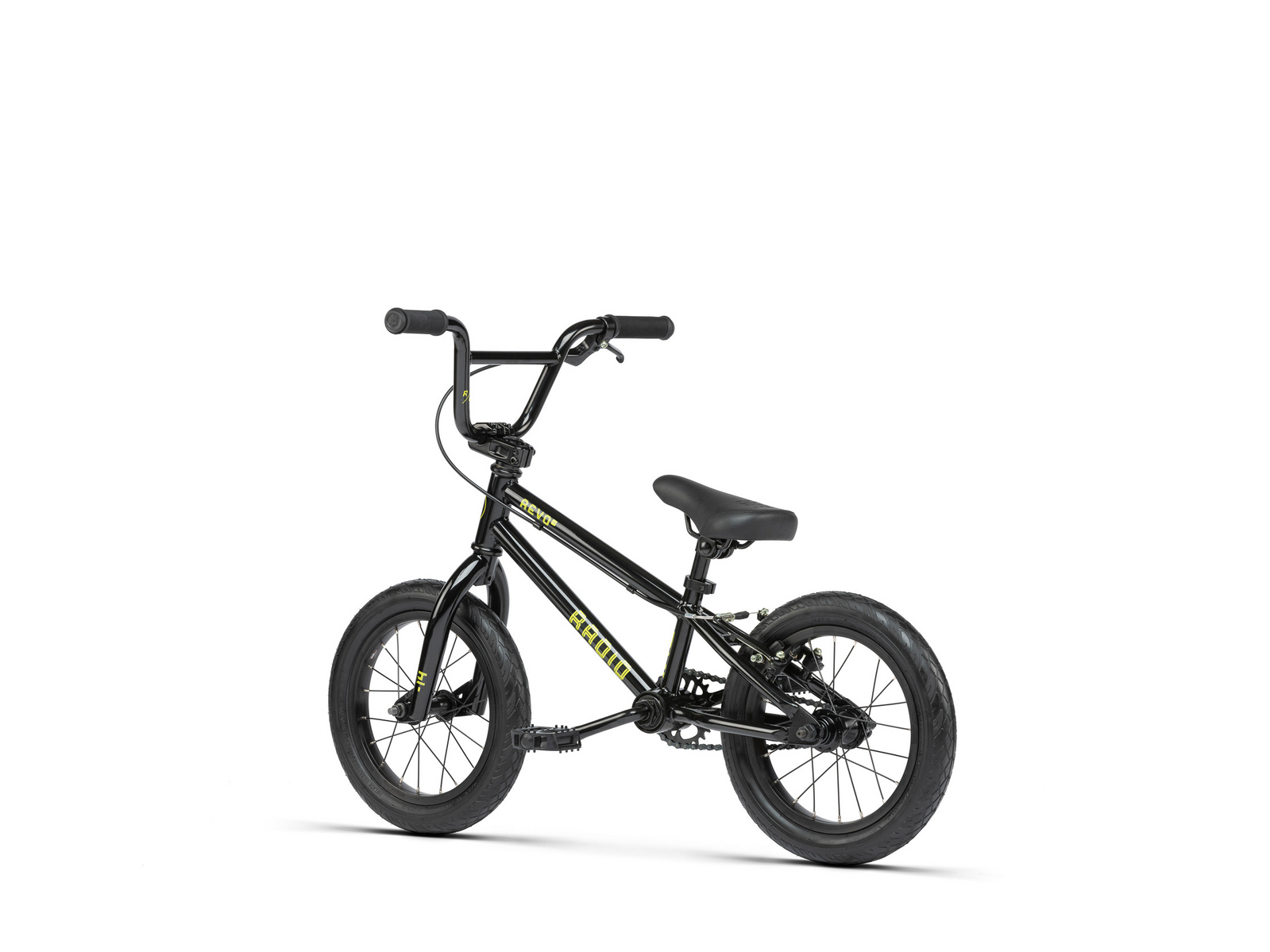

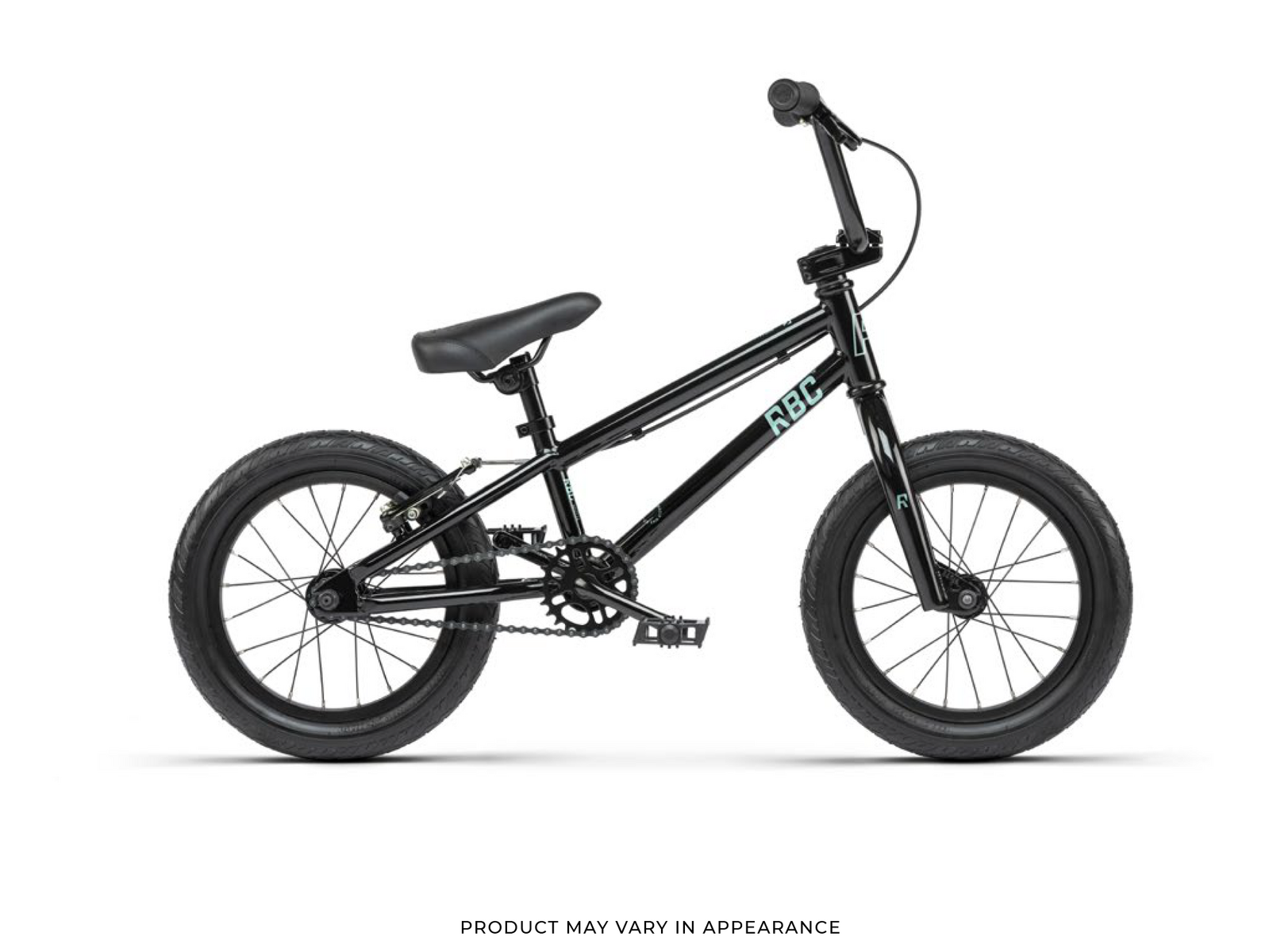

14" Revo Bike

The Revo line allows you to get your first taste of the bmx world on a solid and well-designed bike. Radio took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the Revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.

The Revo 14″ could be that “first bike”, and for that very reason, Radio were dedicated to ensuring it was as perfect as it possibly could be. The railed seat and v-brake make this bike safe and comfortable for the first-time user, but the small details like slimmed down tubing allow the little shredder to take their wheels to the skatepark and start pumping.


Frame - Radio “revo 14” frame, full 1020 hi-ten

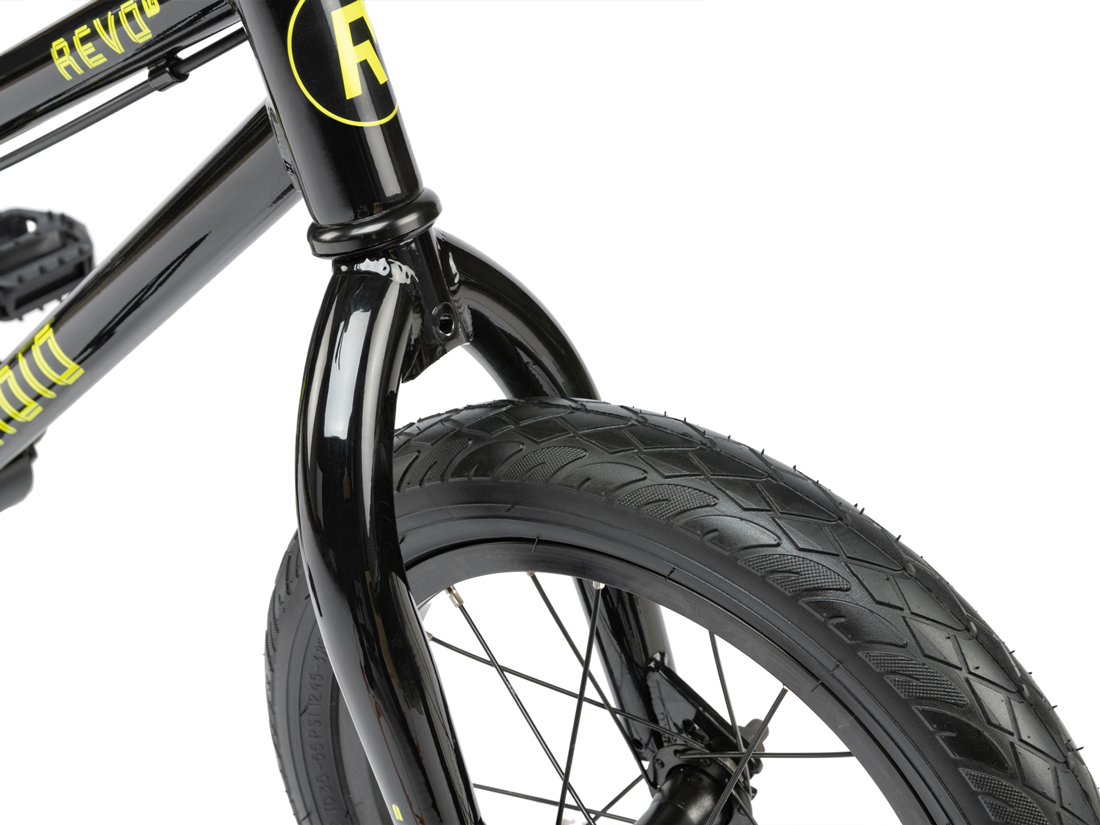

Fork - Radio “rookie 14” 1020 hi-ten fork, tapered legs

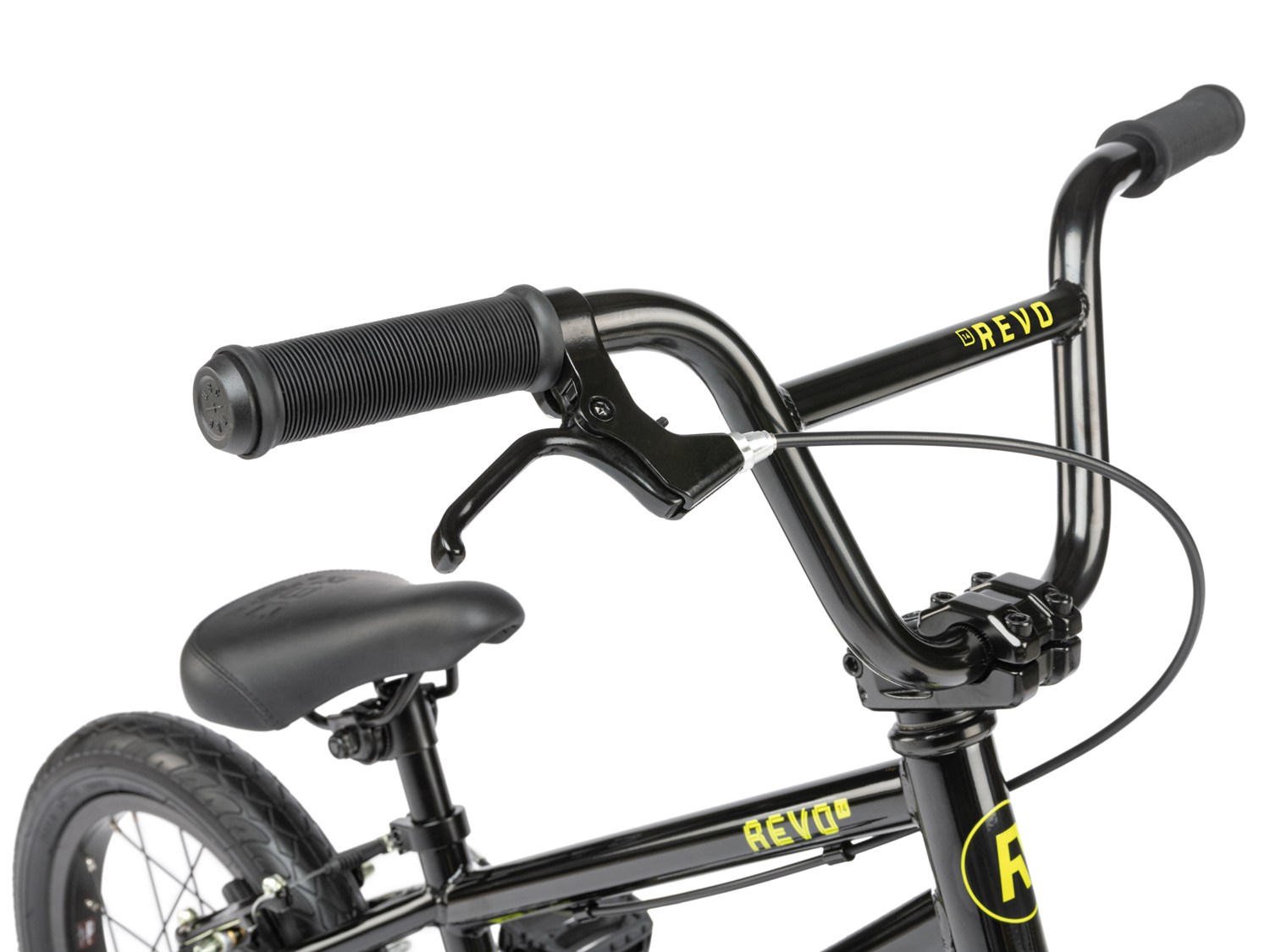

Handlebar - Radio “revo 14” bar, hi-ten

Grips - Radio “junior” grips, flangeless, 110mm

Stem - Salt “junior” topload stem, 40mm reach

Headset - FSA “a-head-set” loose ball

Brake lever - Radio “junior” alloy brake lever

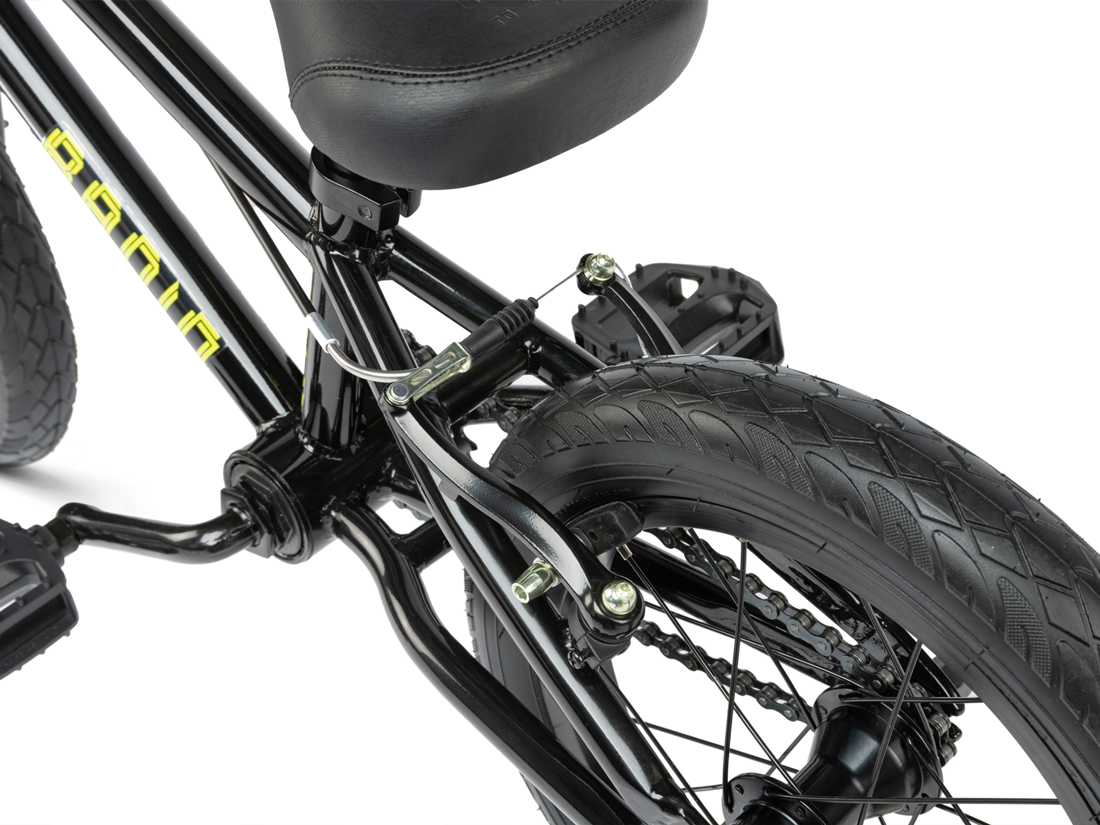

Brake - Radio “am” caliper brake, alloy, front / radio “am-v” v-brake, alloy, rear

Crank - Radio “rookie” 1pc crank, forged, crmo, 102mm

BB - Radio “us” bb set, loose ball

Pedals - Radio “junior” pedals, nylon

Chain - KMC “s1” chain

Sprocket - Radio “rookie” steel 25t sprocket

Driver â€“ 9T, cassette

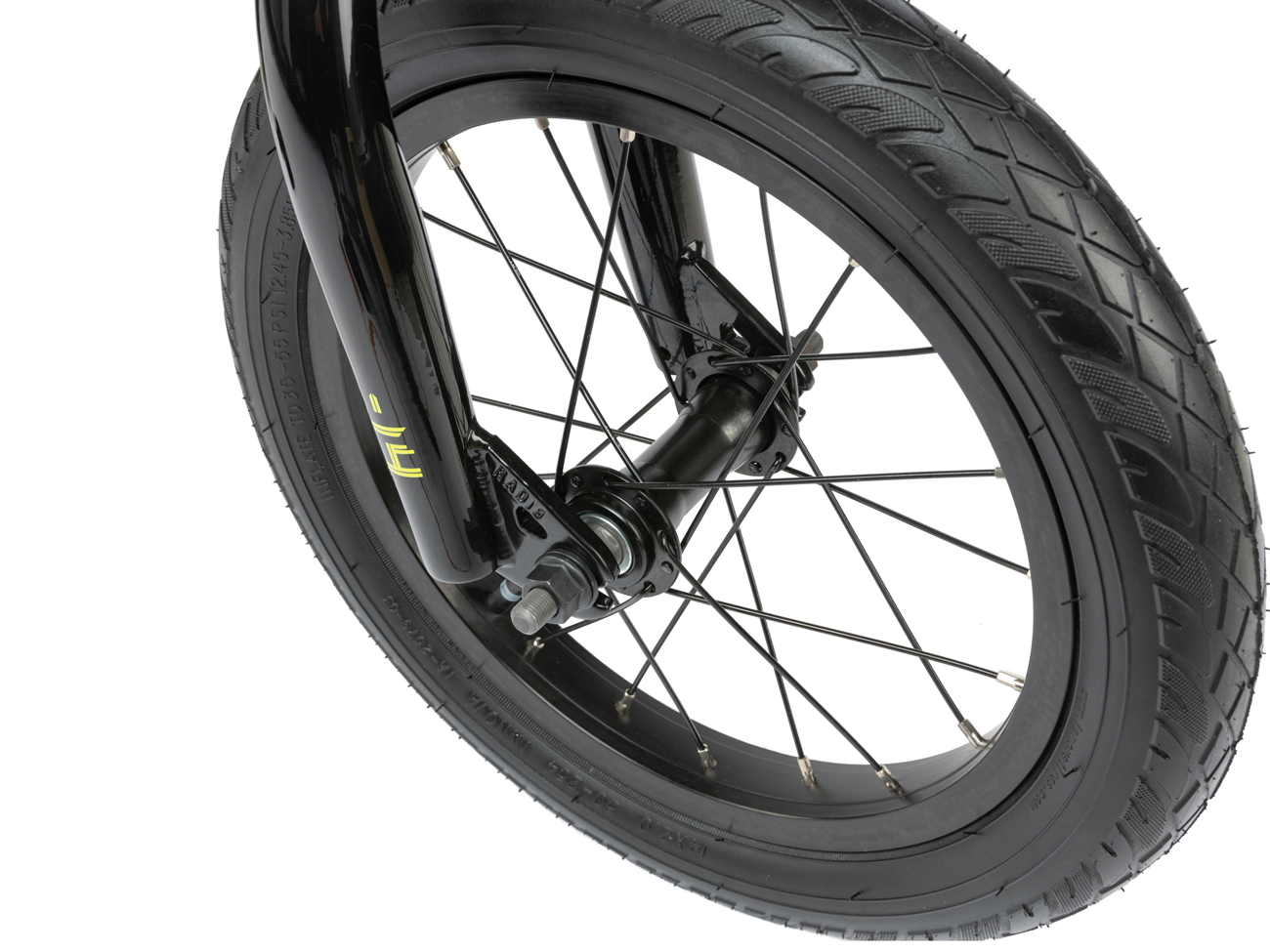

Front hub - Radio “rookie” steel hub, lb, 20h

Rear hub - Radio “rookie” steel hub, lb, 20h

Front rim - Salt “am” rim, straight single wall, 20h

Rear rim - Salt “am” rim, straight single wall, 20h

Seat - Radio “century” railed seat

Seat post â€“ Radio “am” alloy seat post 250mm

Seat clamp - Radio slim alloy seat clamp

Tires - Radio “rookie” tires, 2.0″ front & rear

Weight - 8.825kg / 19.46lbs

Frame geometry

Top tube length - 13.7″

Chain stay length - 10.55″

Head tube angle - 72°

Seat tube angle - 73°

Bottom bracket height - 7.5″

Standover height - 5.5″


Handlebar geometry

Rise - 6.5″

Width - 22.4″

Backsweep - 8°

Upsweep - 2.5°
