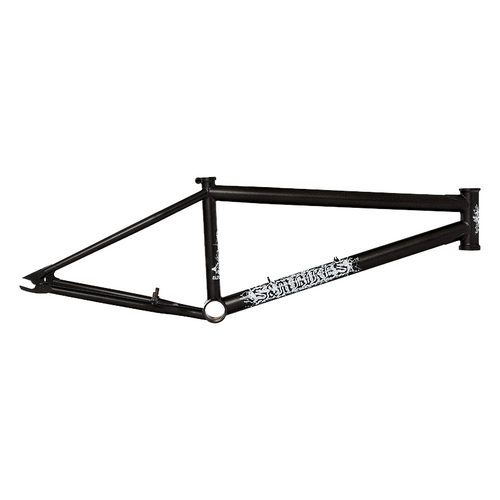

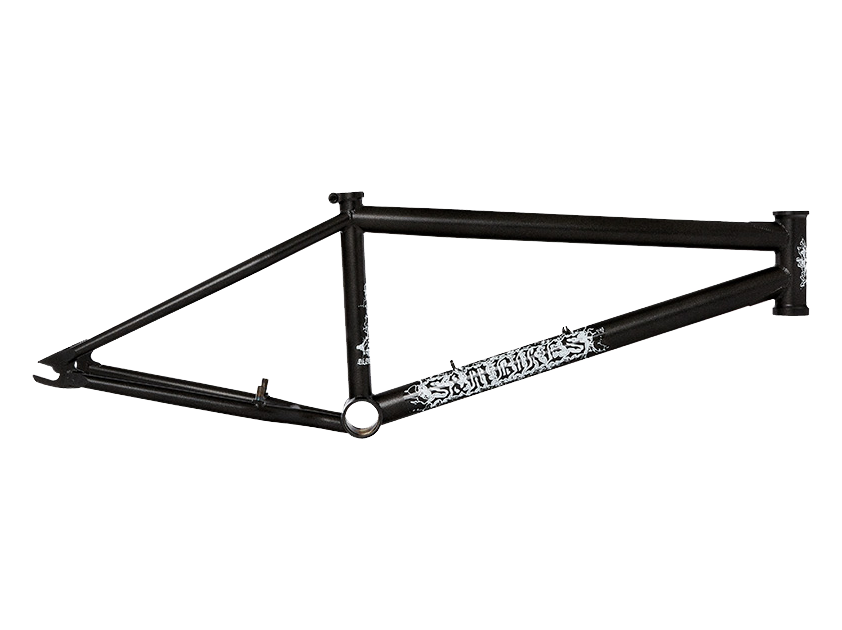

Black Magic Frame
Matty Aquizap’s signature frame is designed to roast and do the most!


The frame is made in the U.S.A with full Butted Thermal X 4130 chromoly tubing,
a 74-degree head tube angle, 71-degree seat tube angle, 11.6″ bottom bracket height,
9.30″ standover height and a 14.10″ – 14.75″ chainstay length!

You can find a taller 5" Integrated head tube, gussets on the top and down tubes,
a Mid bottom bracket, integrated seat post clamp with an S&M Bikes logo,
a wide rear triangle for 2.40″ tire clearance, tapered seat stays with end caps
that have the S&M Logo, heat-treated 14mm dropouts
and welded on chain stay brake mounts and guides.

The Black Magic Frame comes in Metallic Black
with 21″, 21.25″ and 21.5″ top tube lengths, a weight of 2.5 kg

TOP TUBE LENGTH - 21″, 21.25″, 21.5″
REAR END LENGTH - 14.10″ - 14.75″
HEAD TUBE ANGLE - 74°
HEAD TUBE STYLE - Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE - 71°
SEAT CLAMP - Integrated
SEAT POST SIZE - 1″ (25.4mm)
BB HEIGHT - 11.6″
BB STYLE - Mid
STANDOVER HEIGHT - 9.30″
BRAKE MOUNTS - Welded Chainstay 990
DROPOUTS - 14mm Slot, 4Q-Baked
GYRO TABS - None
WEIGHT - 2.45kg
TUBESET - Butted Thermal-X



(SMFR003)

SKU SMFR003
Brand S&M
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.500m
Shipping Length 1.000m
Shipping Cubic 0.100000000m3
