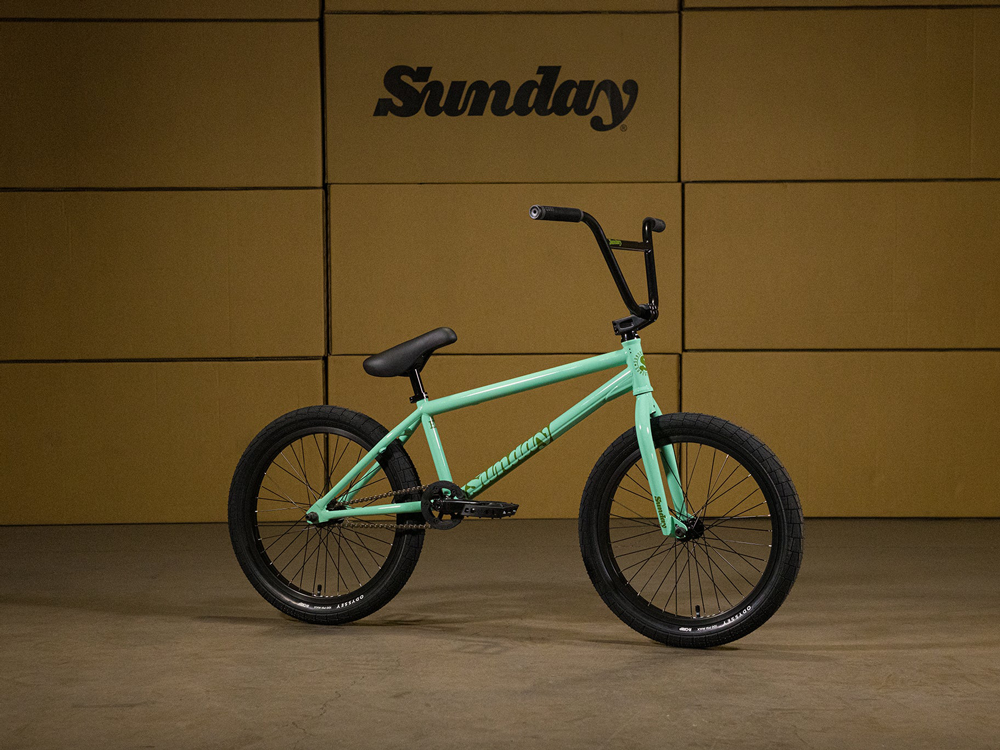

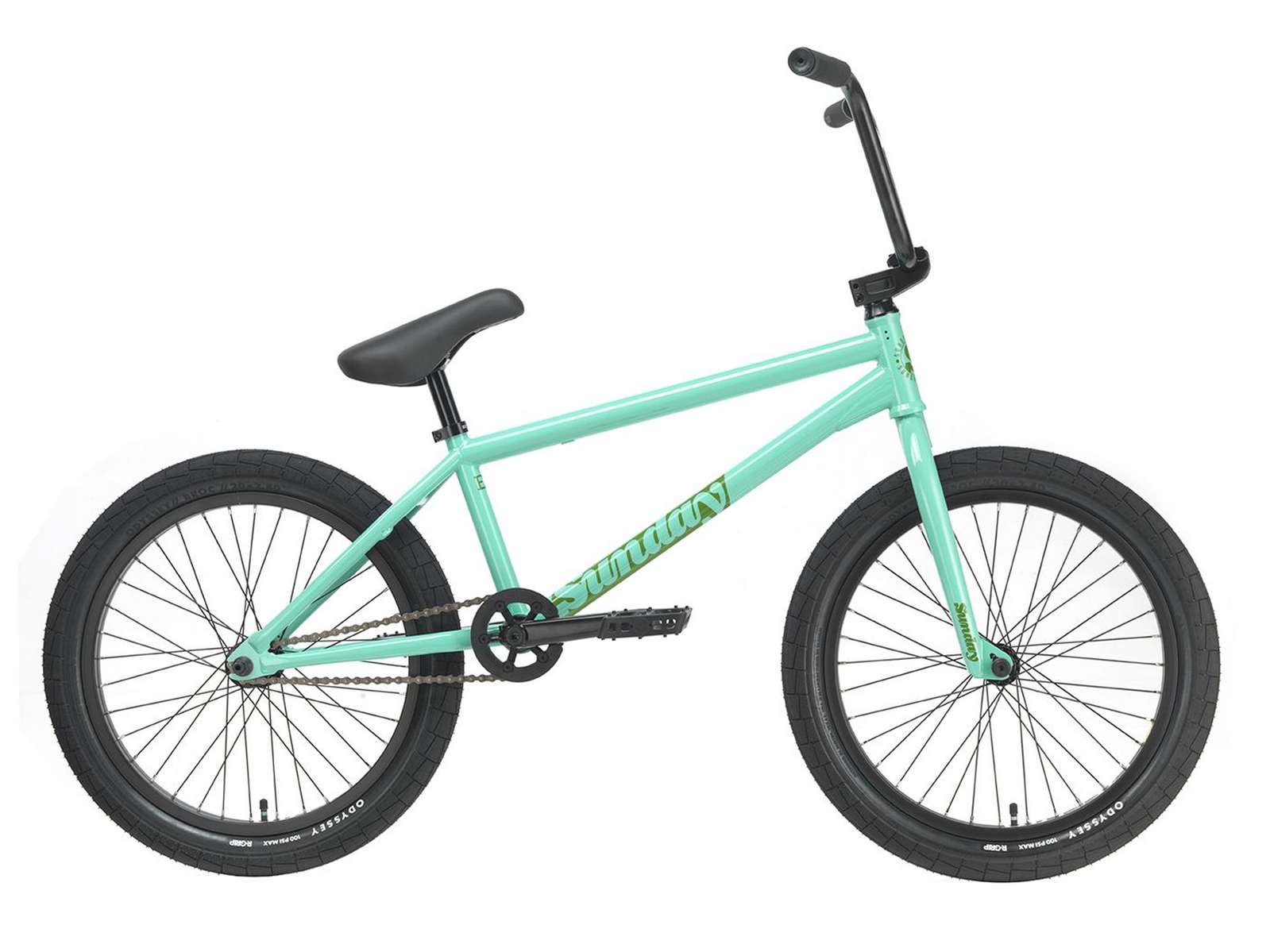

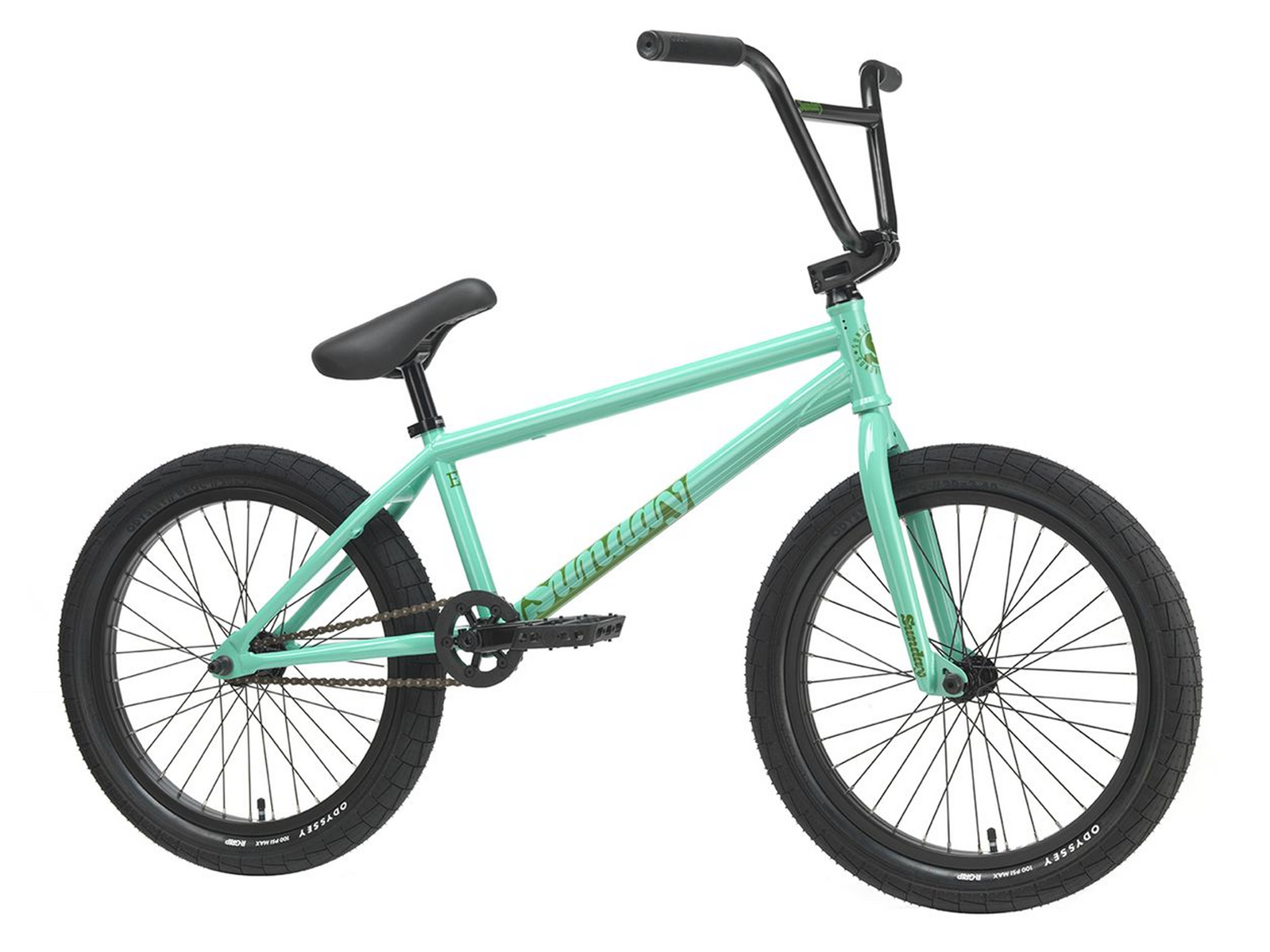

Sunday 20" EX Erik Elstran Signature Bike
With a 100% chromoly frame/fork/bar, the EX is a BMX bike that is difficult to match at this price point. This is the first tier to include Sunday's trusted signature Wave downtube as well.
Erik Elstran’s signature EX features removable braking, along with a pro-level Odyssey/Sunday parts package. This includes Odyssey C5 cassette, Stage 2 rims, Broc tires, Twisted Pro pedals, Utility Pro sprocket, Sunday Freeze stem, Seeley grips and more.
This bike means business, even when your approach to riding is all about having fun - just like Erik’s.
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
Features
-
100% Chromoly Frame, Fork, and 2-piece Bars
-
Sunday Signature Wave Down Tube
-
Sunday Saker 3-PC Cranks, 165mm
-
Odyssey Utility Pro 25t Sprocket
-
Odyssey C5 Cassette Hub
-
RHD/LHD switchable
-
Odyssey Stage 2 Rims
-
Odyssey Broc 2.40" Tyres
Specifications
-

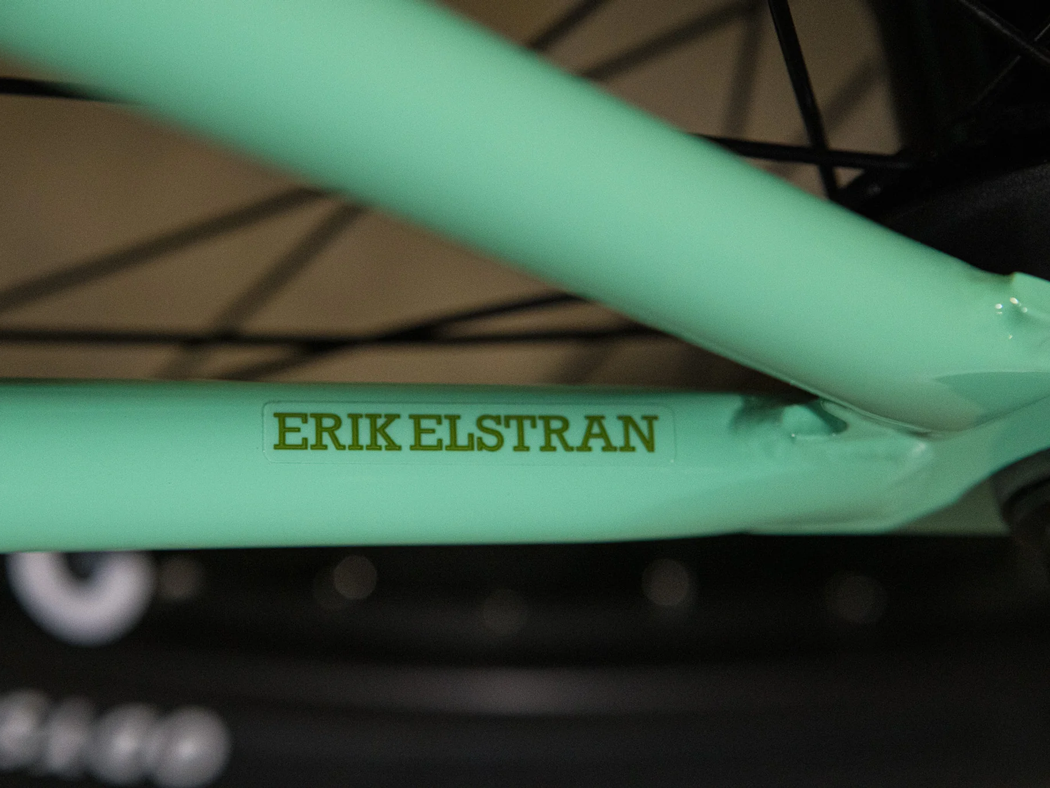

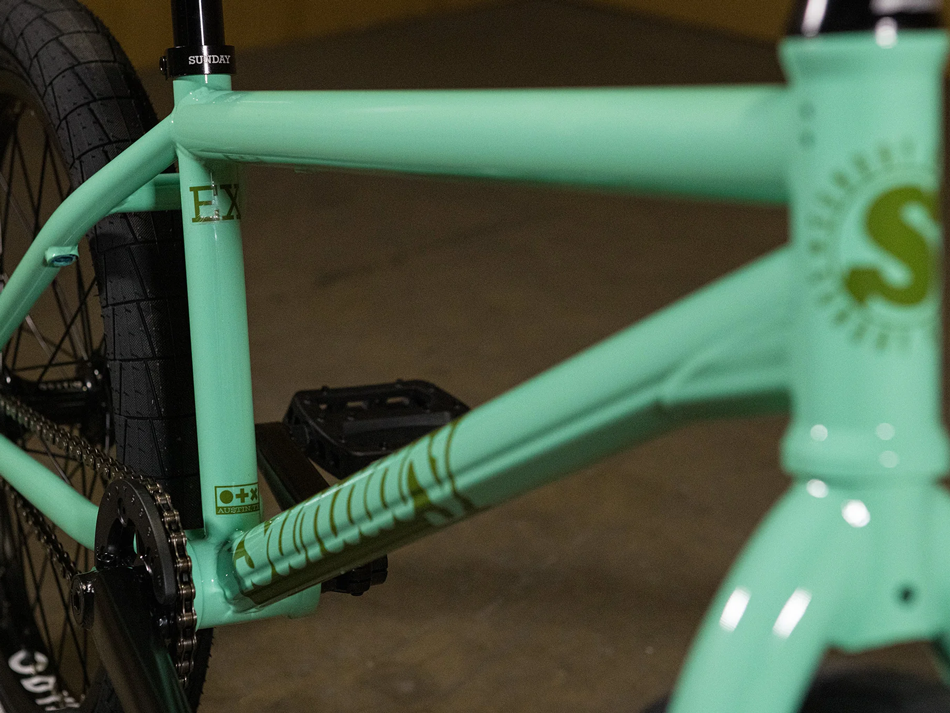

Frame: Sunday EX, 21" TT, 100% chromoly frame with wave downtube, w/ removable brake hardware
-
Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
-

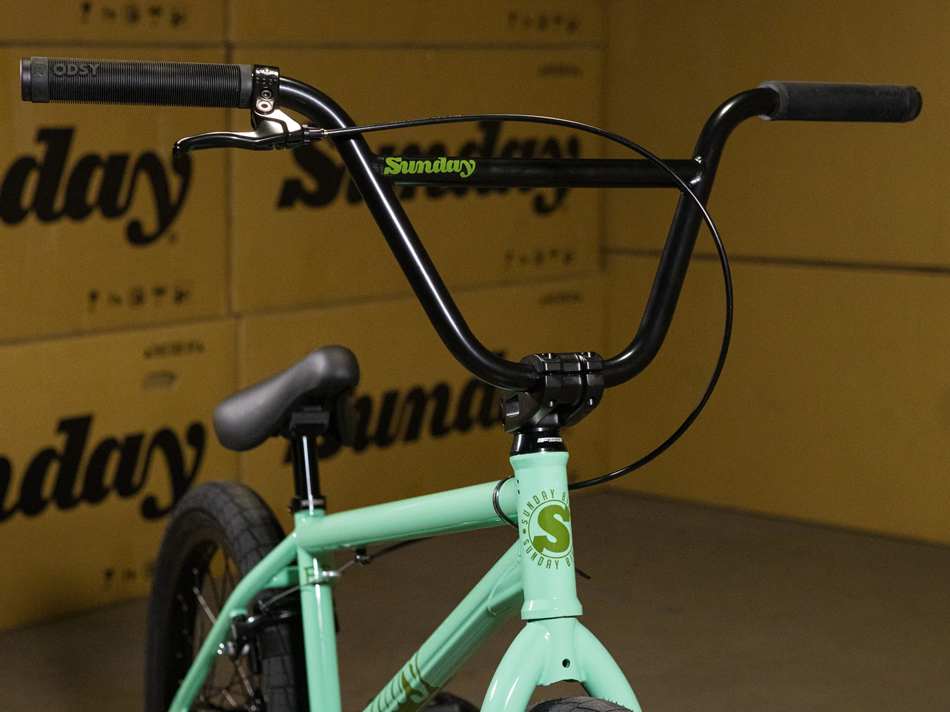

Handlebar: Sunday, 100% chromoly, 2-piece
-

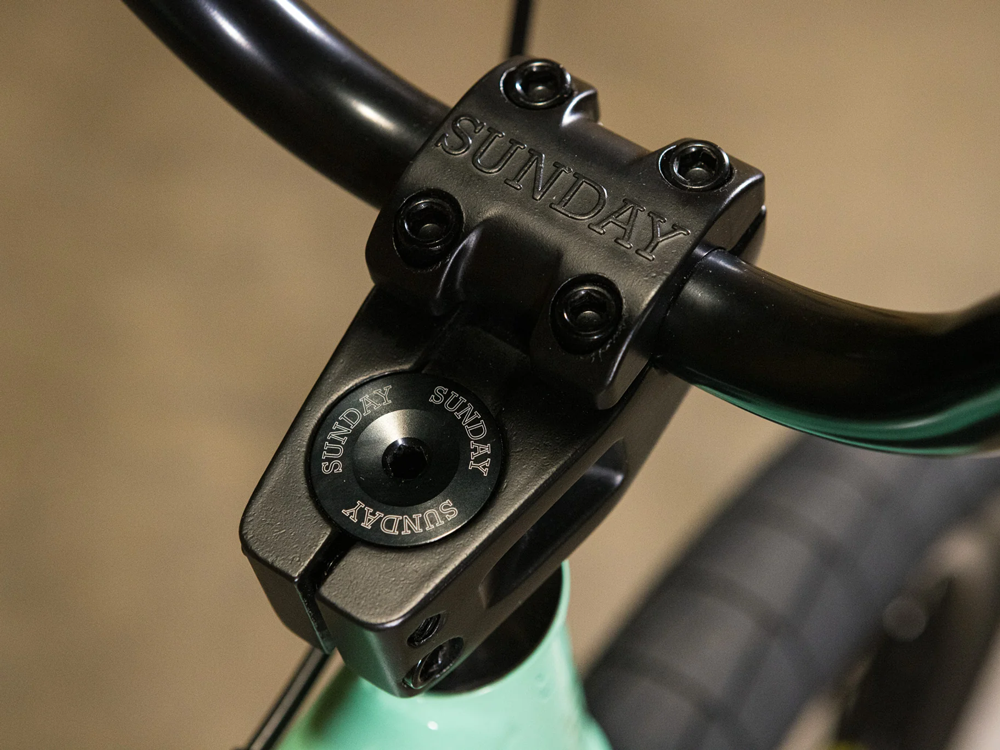

Stem: Sunday Freeze top load, 48mm
-
Headset: FSA integrated conical, 1-1/8"
-
Alloy Cap: Sunday M16, aluminium
-
Brake Lever: Odyssey Springfield
-

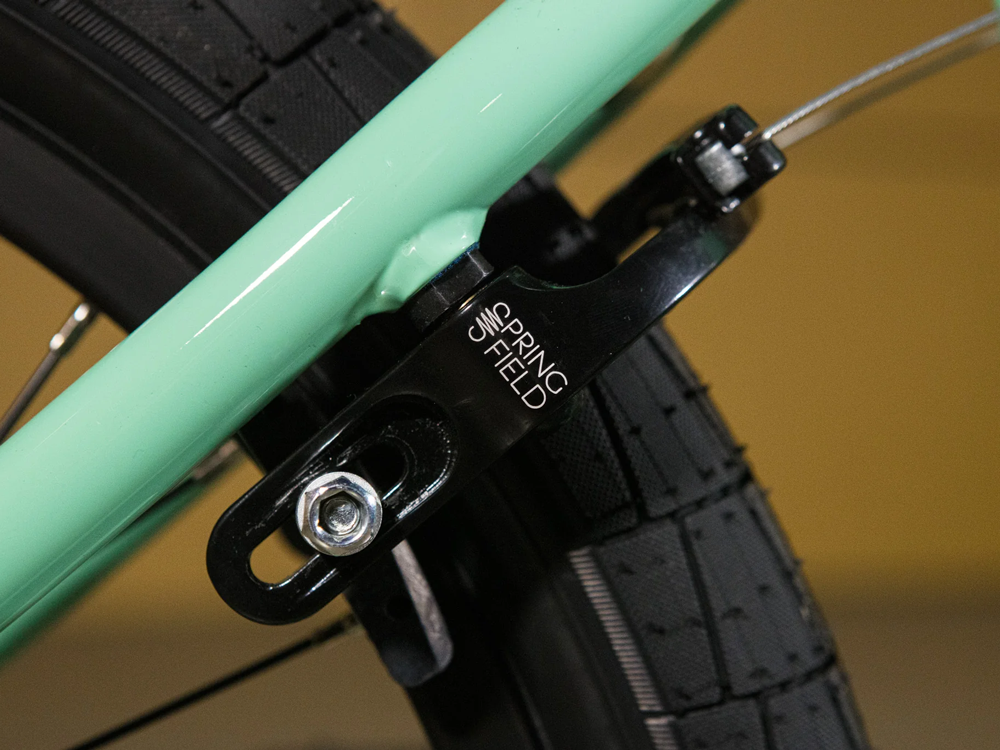

Brakes: Odyssey Springfield U-brake
-
Brake Cable: Odyssey Linear Quik Slic
-

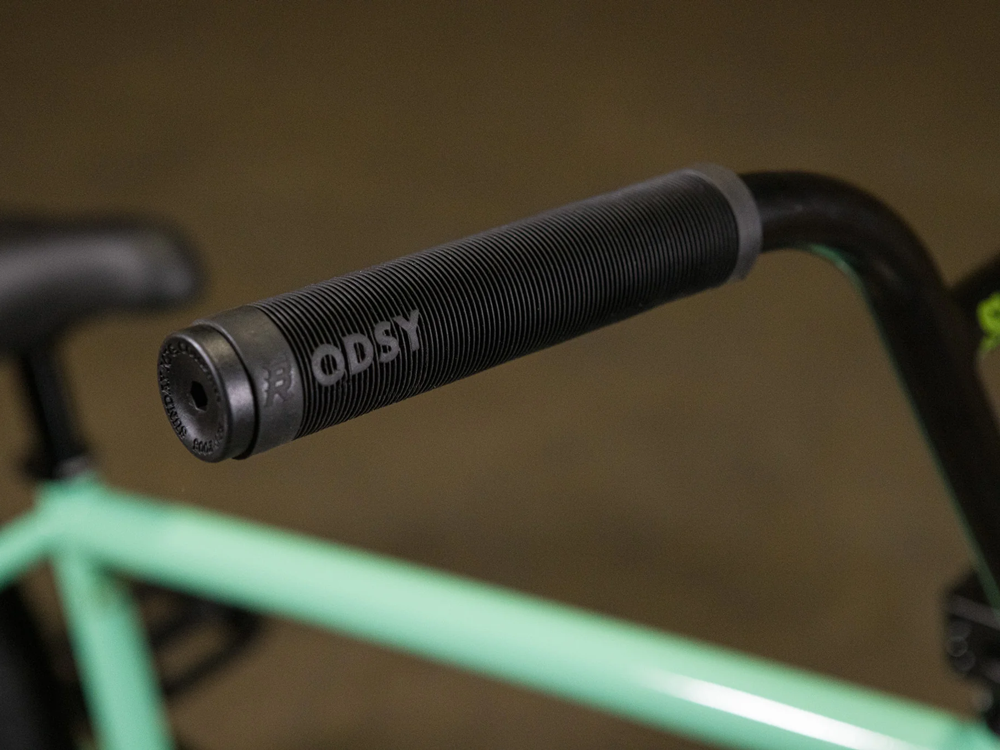

Grips: Odyssey Broc Raiford Signature
-

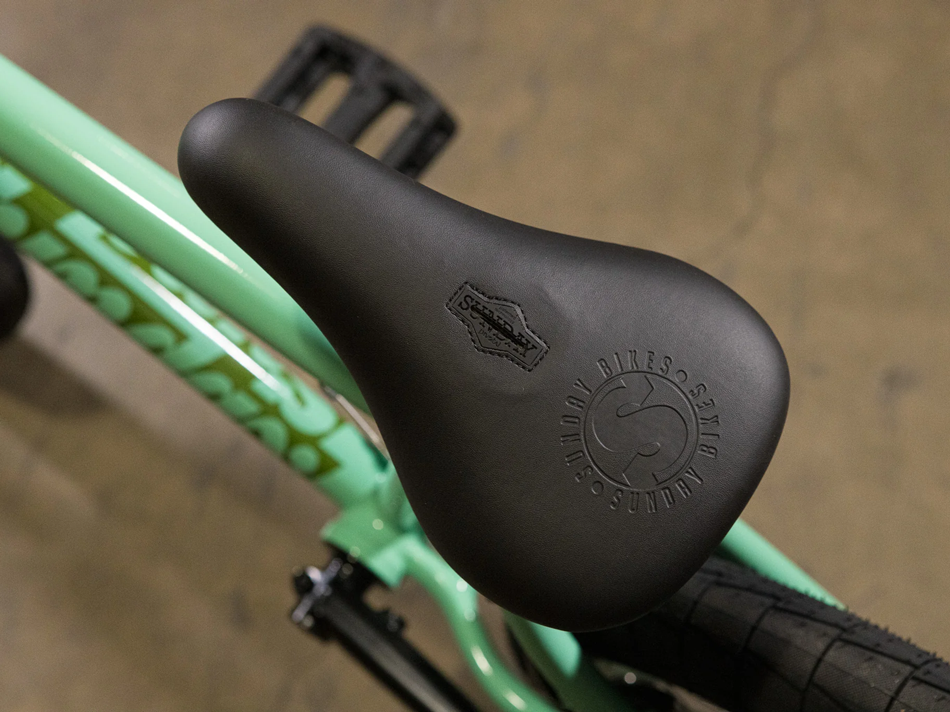

Seat: Sunday Badge, Pivotal
-
Seat post: Sunday Pivotal
-
Seat Clamp: Sunday
-

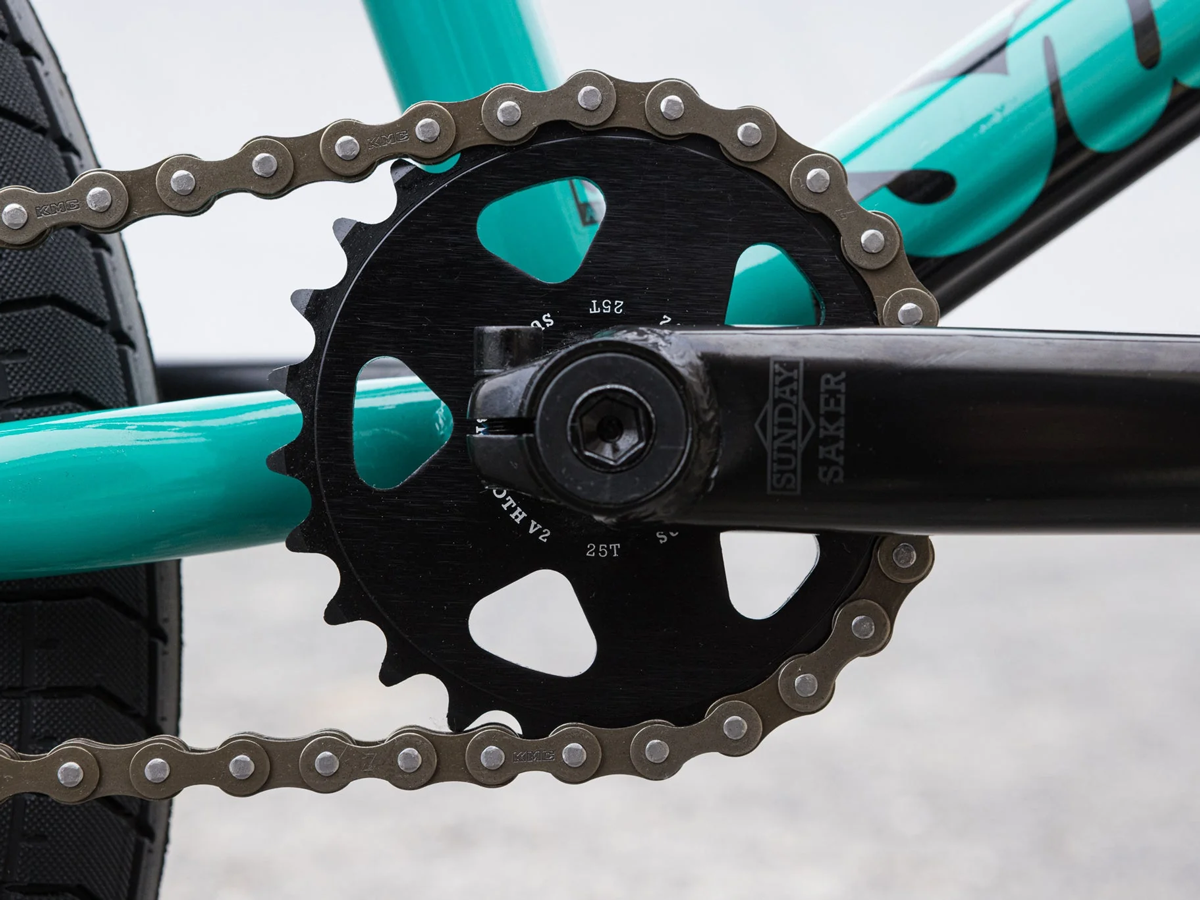

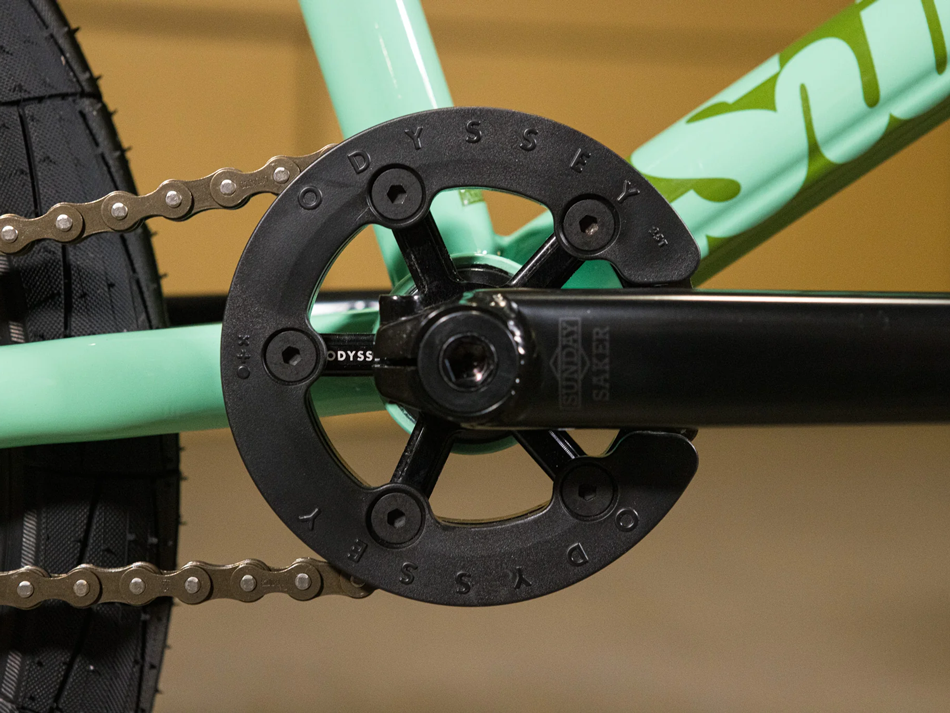

Sprocket: Odyssey Utility Pro, 25T, w/Plastic Guard
-
Cranks: Sunday Saker, 165mm (LHD/RHD Compatible)
-
BB Parts: Sealed, Mid, 19mm
-

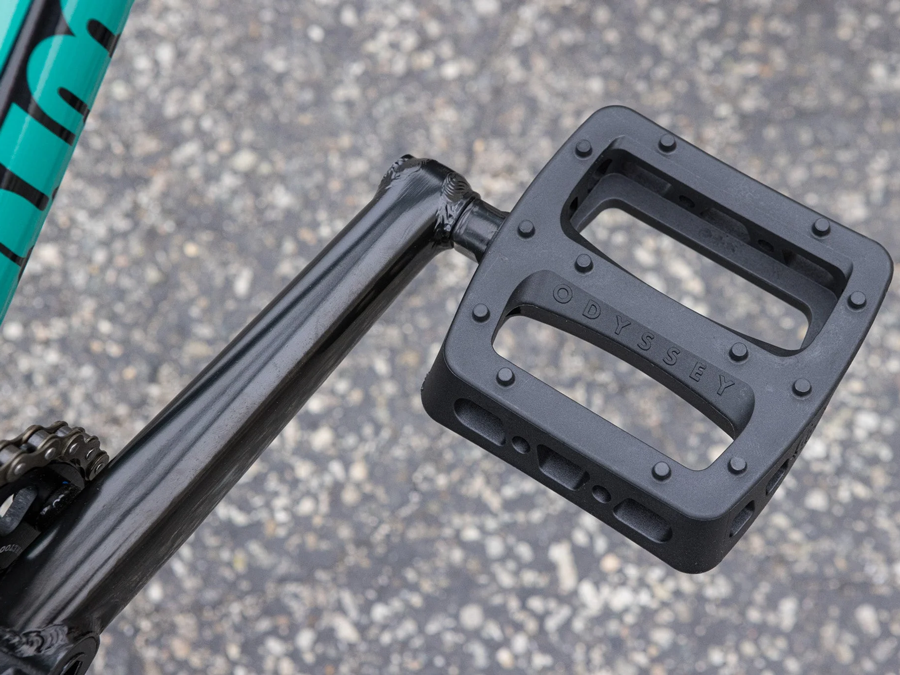

Pedals: Odyssey Twisted PC Pro
-
Rims: Odyssey Stage 2, 20", 36H
-
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts
-

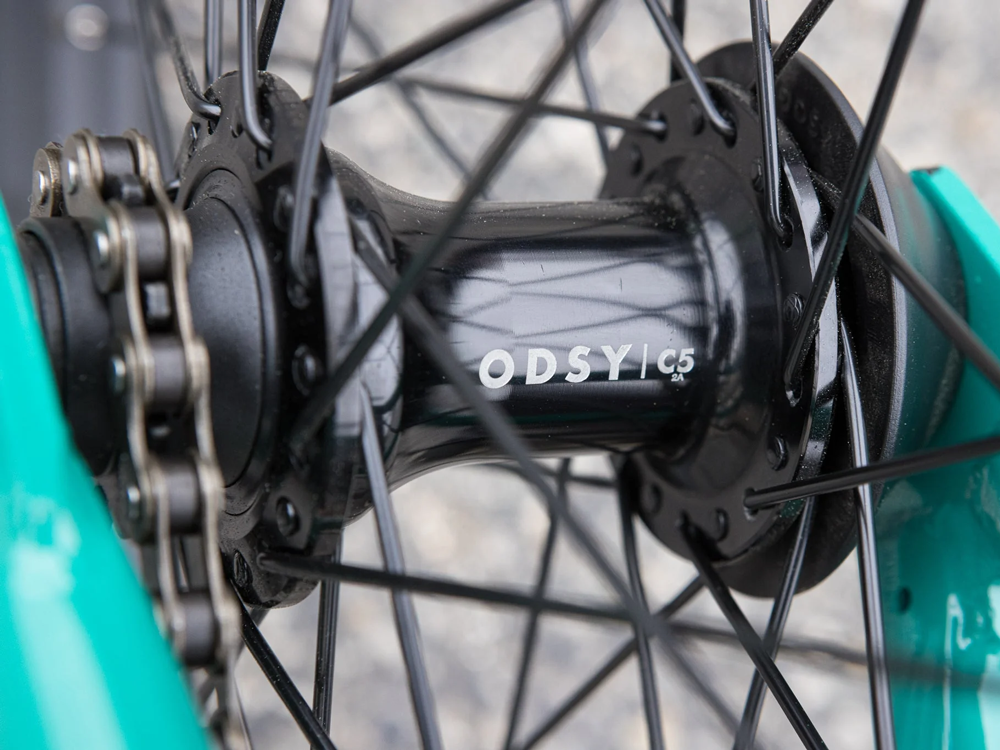

Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm axle, 9T Driver, non-drive side plastic guard, RHD/LHD Switchable
-
Spokes: 14g steel, black
-
Tyres: Odyssey Broc Tyre, 20 x 2.4" (F & R)
-
Chain: KMC Z1 wide
-
Approx. Weight: 25.75lbs (with brakes)
Frame Geometry
-
Top Tube Length: 21"
-
Head Tube Angle: 75°
-
Seat Tube Angle: 71°
-
Chainstay Length: 13.2-13.5”
-
Bottom Bracket Height: 11.5"
-
Standover: 9"
Handlebar Geometry
-
Rise: 9"
-
Width: 28.5"
-
Backsweep: 12°
-
Upsweep: 4°
