Sunday 20" Forecaster Broc Raiford Signature Bike
The Sunday Forecaster BMX bike is a model that rides, feels and looks like a pro-level bike. It features a full 100% CrMo frame, removable brake hardware, incredible spec and fully sealed front and rear hubs.

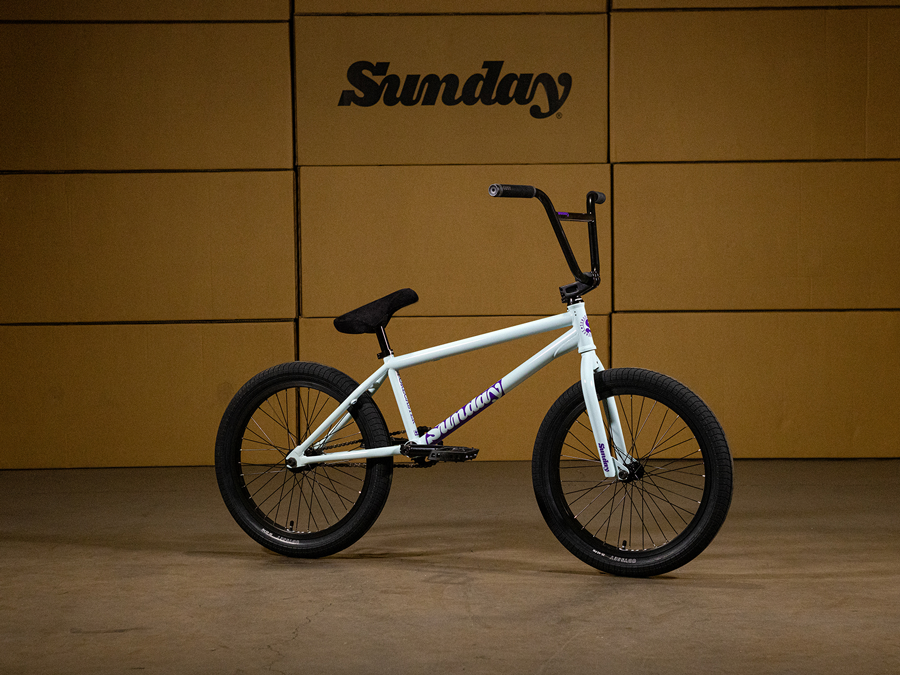

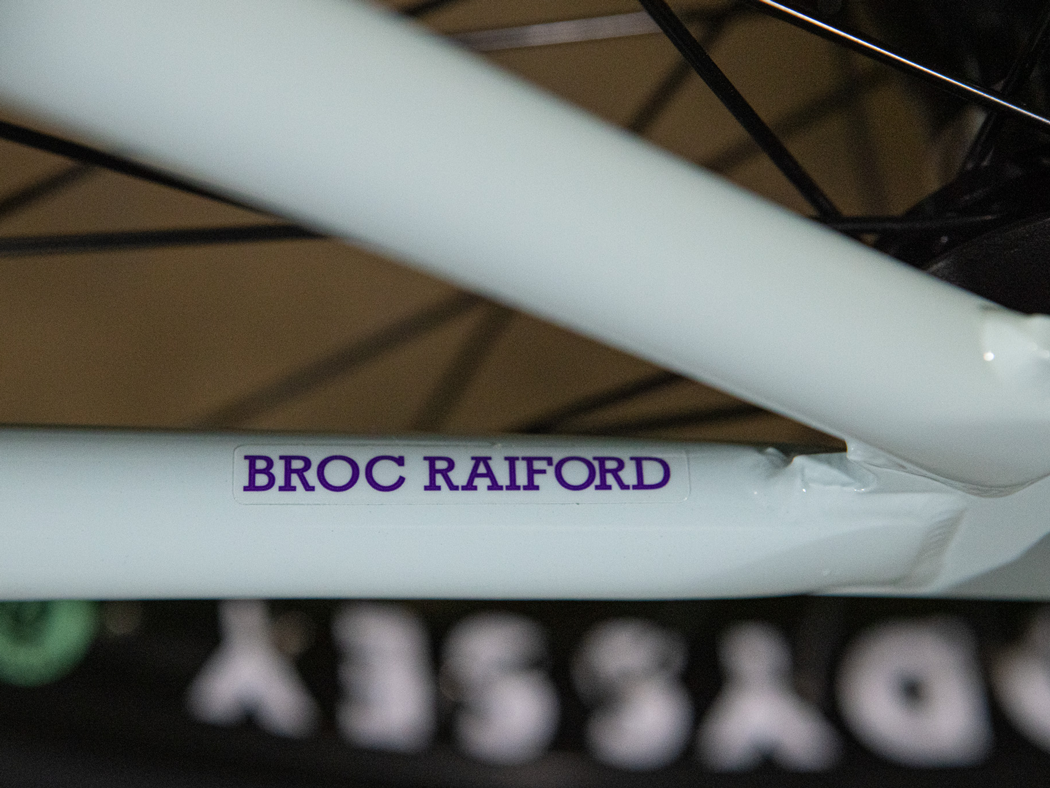

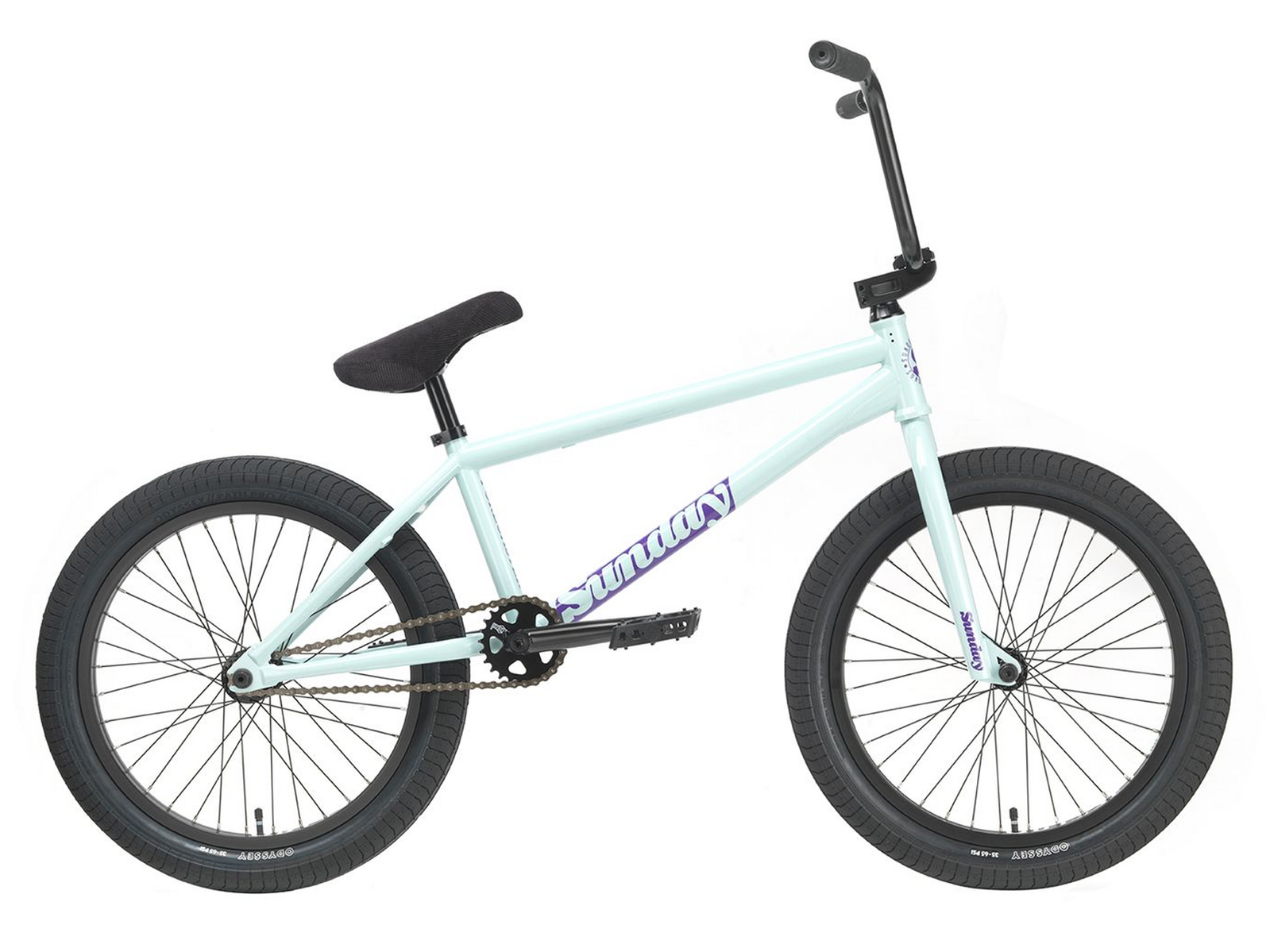

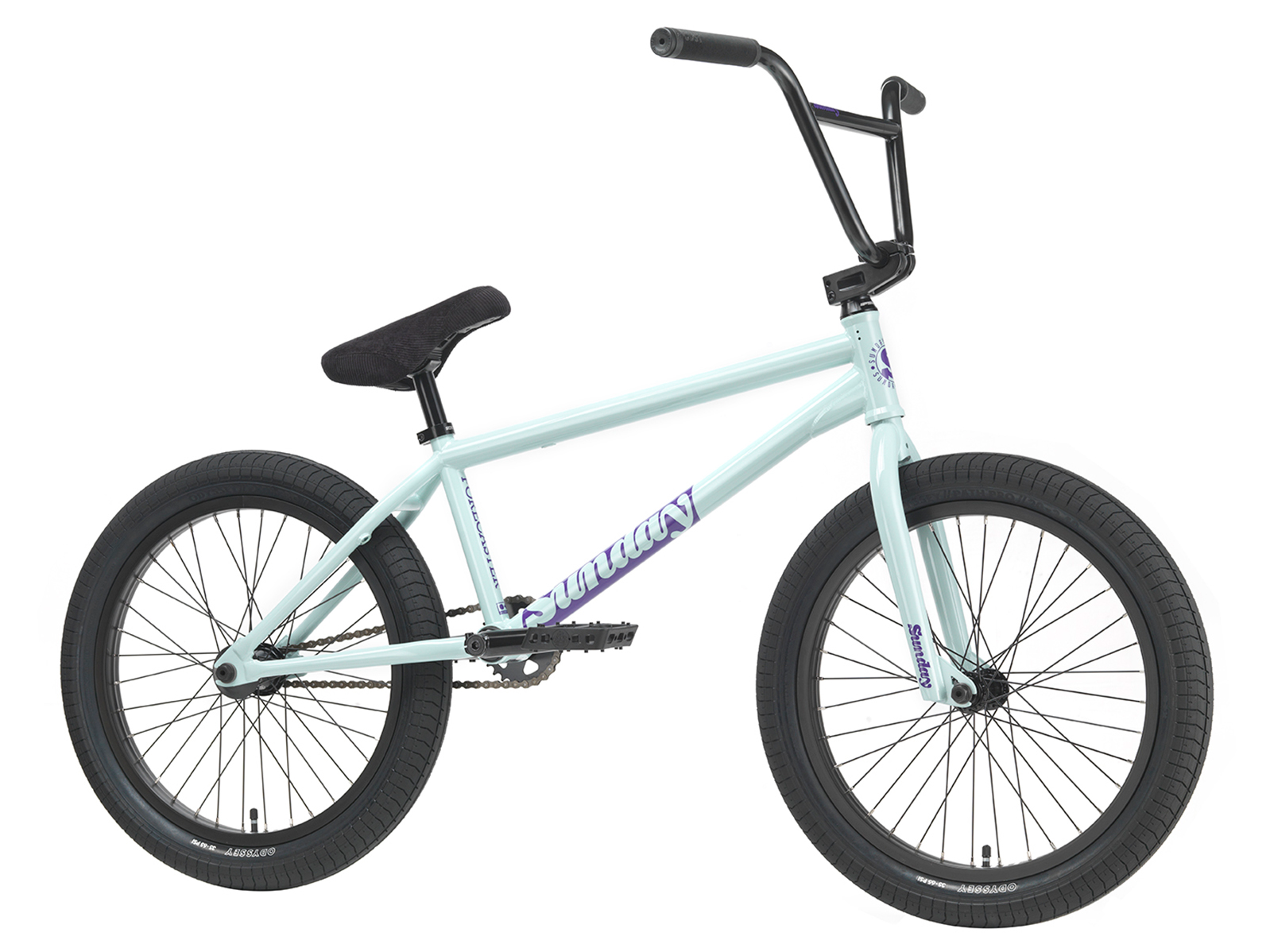

Broc Raiford’s signature Forecaster in Gloss Sky Blue is available in both RHD and LHD options. It’s spec’d with his very own Odyssey signature grips and saddle, and paired with incredible Odyssey parts including a Clutch v2 Freecoaster hub, Twisted Pro pedals, Path Pro tyres and Stage 1 rims.
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
Key Features
-
100% Chromoly Frame
-
Sunday Freeze Top Load Stem
-
Odyssey BROC Grips
-
Odyssey Broc Pivotal Seat
-
Removable Brake Hardware
-
Odyssey Clutch v2 Freecoaster
-
Available in LHD or RHD
-
Odyssey Stage 1 Rims
-
Odyssey Path Pro OEM 2.40" Tyres
Specifications
-

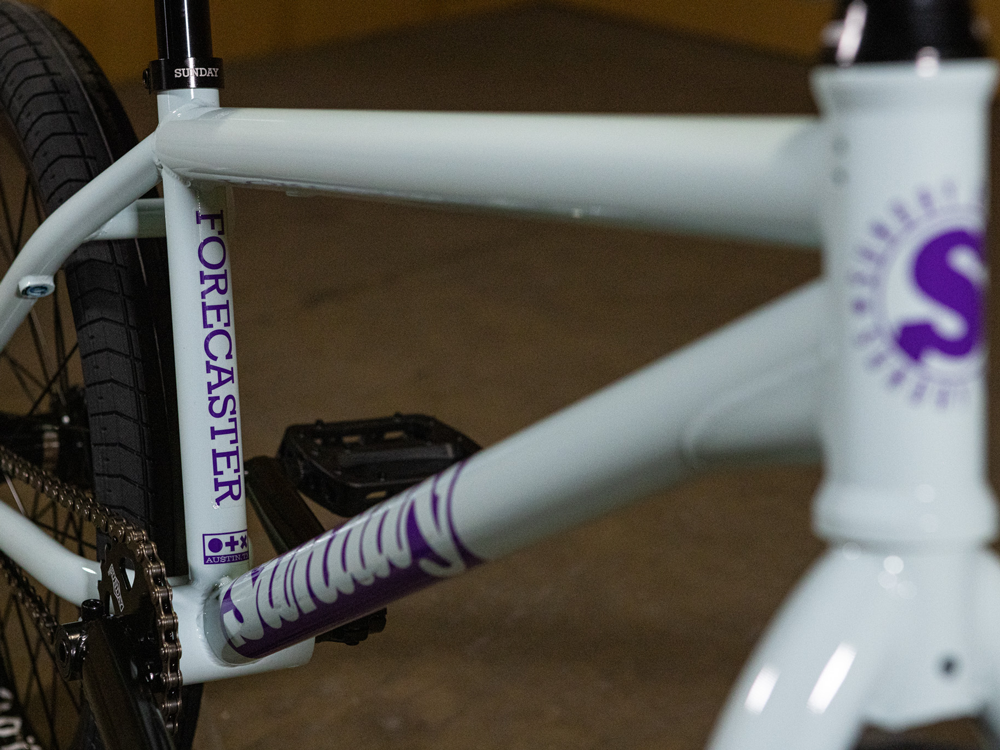

Frame: Sunday Forecaster, 21" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
-
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
-

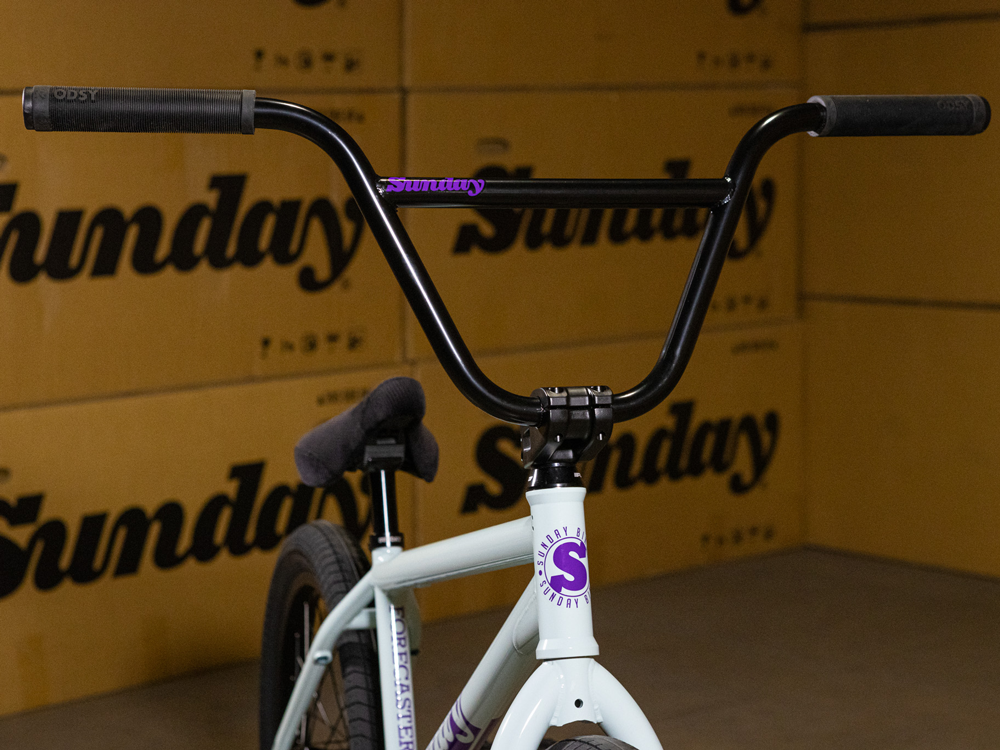

Handlebar: Sunday, 2-piece
-

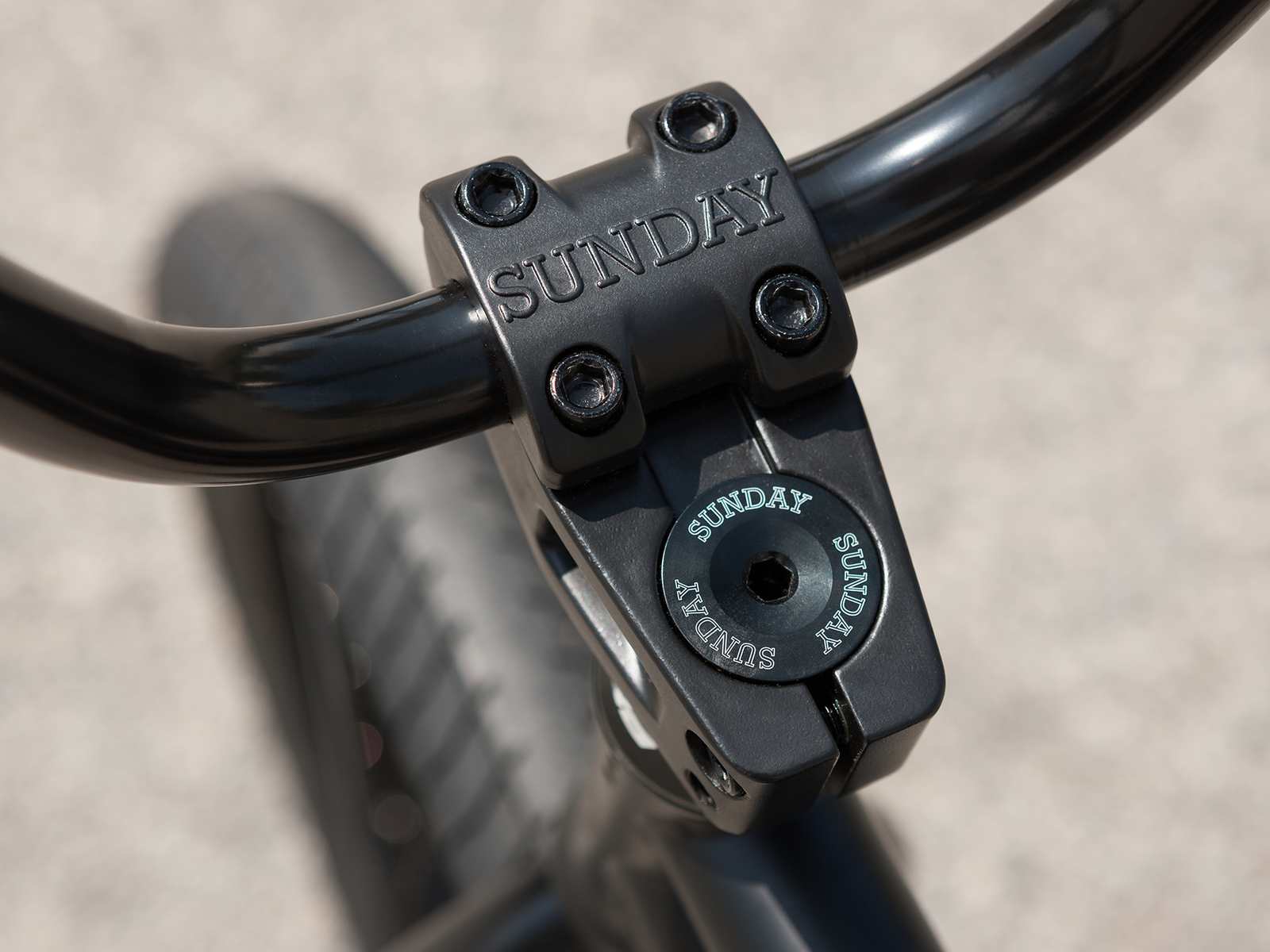

Stem: Sunday Freeze front load, 48mm
-
Headset: FSA integrated conical, 1-1/8"
-
Alloy Cap: Sunday M16, aluminium
-
Brake Lever: Odyssey Springfield
-
Brakes: Odyssey Springfield U-brake
-
Brake Cable: Odyssey Quik Slic
-

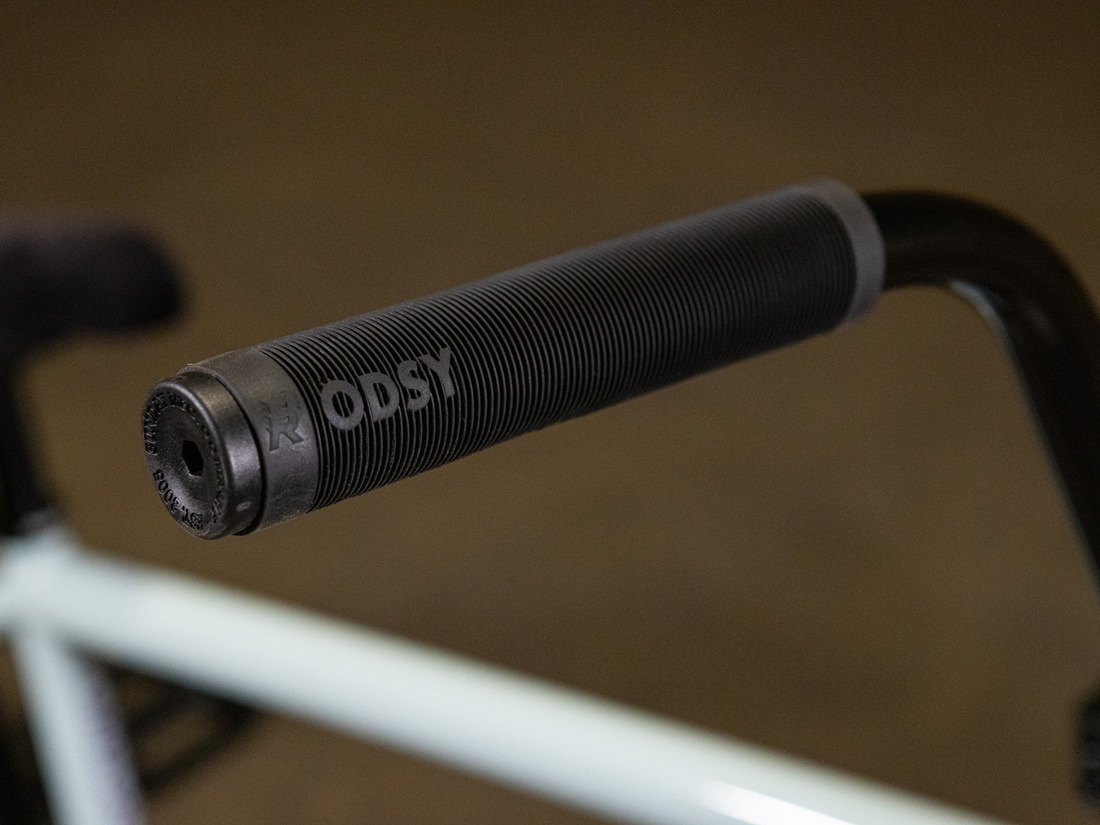

Grips: Odyssey Broc Raiford
-

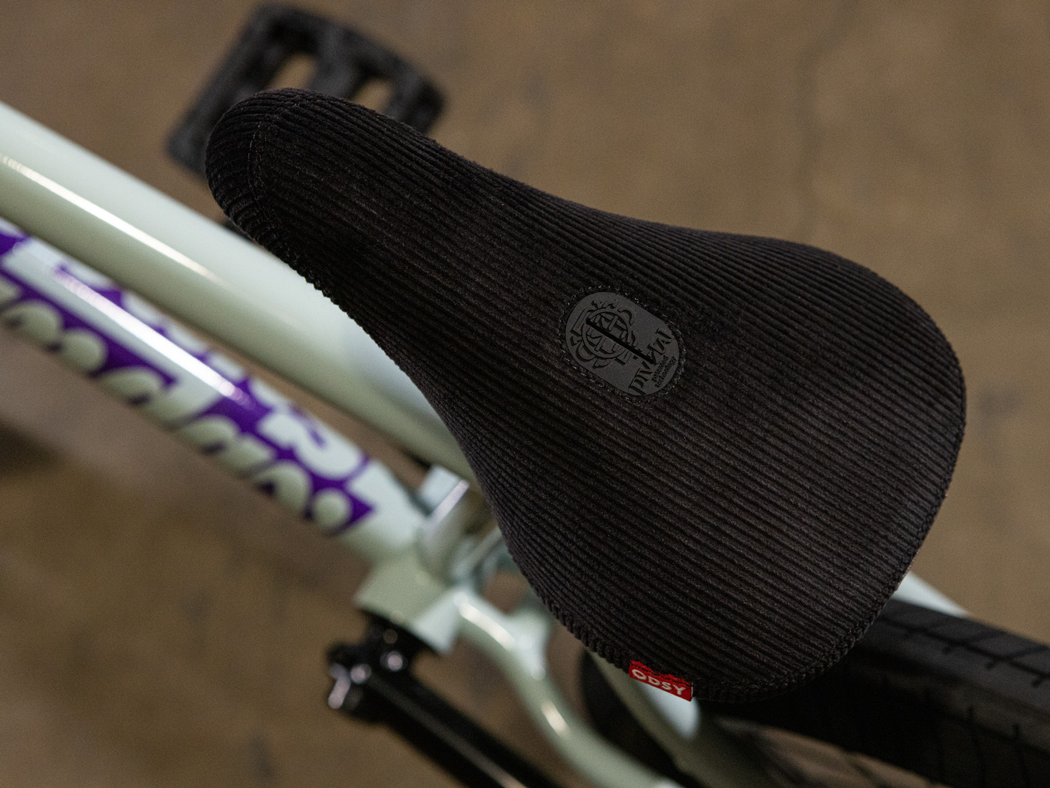

Seat: Odyssey Broc Raiford Signature, Pivotal
-
Seat Alternate: Odyssey, Pivotal
-
Seat Post: Sunday Pivotal
-
Seat Clamp: Sunday
-
Sprocket: Sunday Sabertooth v2, 25T, steel
-
Cranks: 170mm, 3-piece, chromoly
-
BB Parts: Sealed, Mid, 19mm
-
Pedals: Odyssey Twisted PC Pro
-
Rims: Odyssey Stage 1, 20", 36H
-

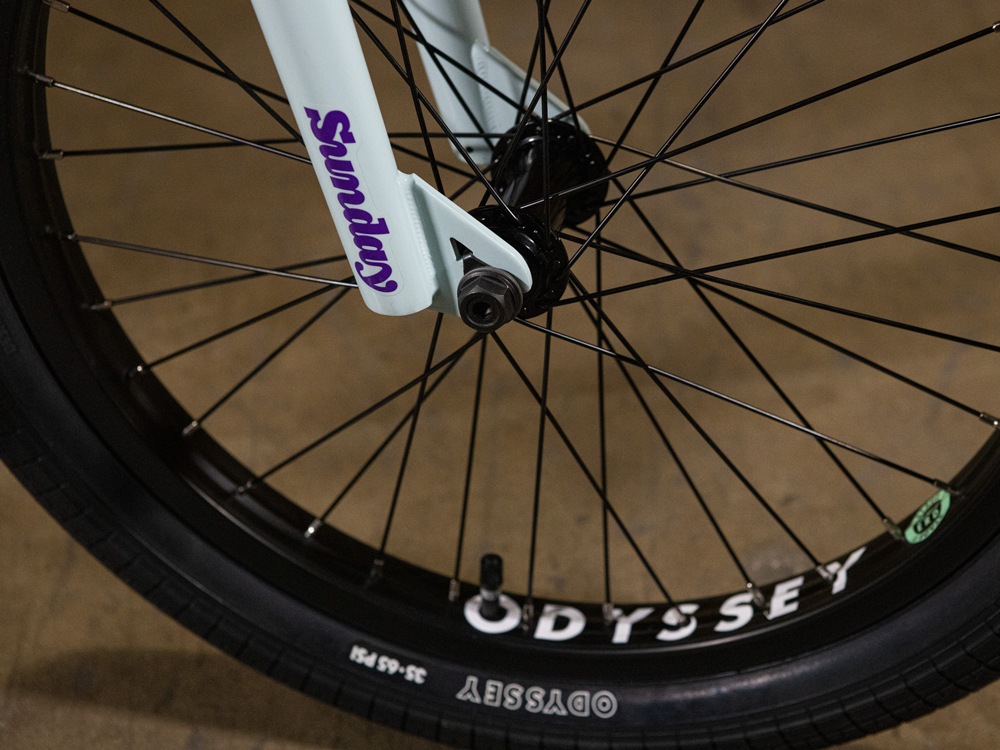

Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts
-

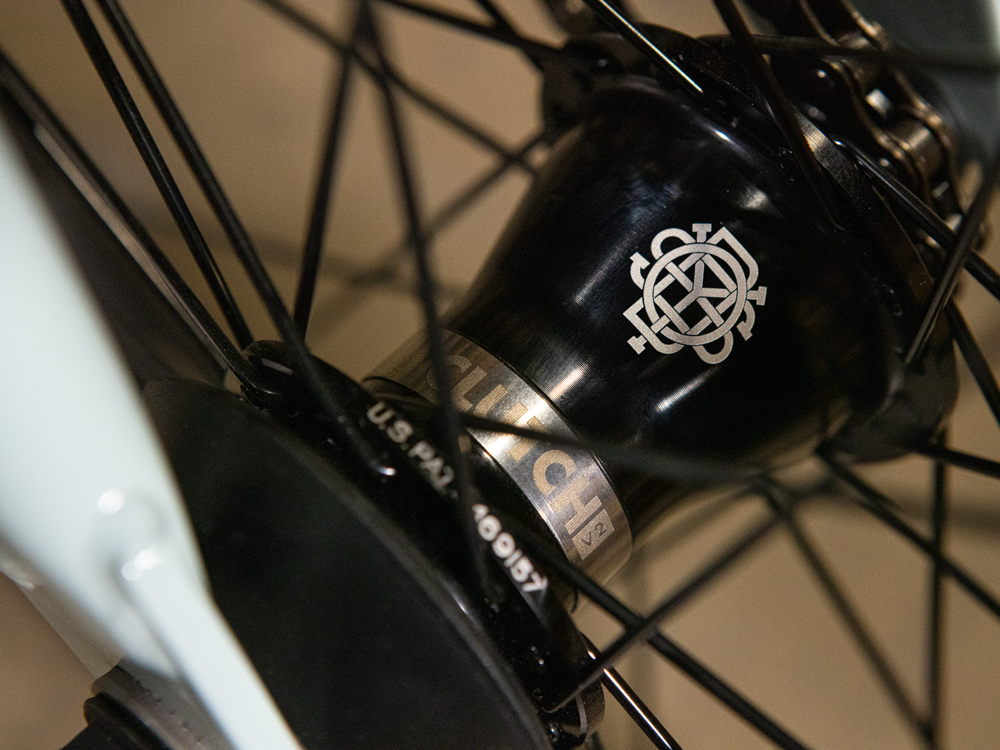

Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, LHD or RHD, non-drive side plastic guard
-
Spokes: 14g steel, black
-
Tyres: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
-
Chain: KMC Z1 wide
-
Approx. Weight: 12.14kgs (with brakes)
Frame Geometry
-
Top Tube Length: 21"
-
Head Tube Angle: 75.5°
-
Seat Tube Angle: 71°
-
Chainstay Length: 13.2-13.5”
-
Bottom Bracket Height: 11.7"
-
Standover: 9"
Handlebar Geometry
-
Rise: 9"
-
Width: 28.5"
-
Backsweep: 12°
-
Upsweep: 4°
