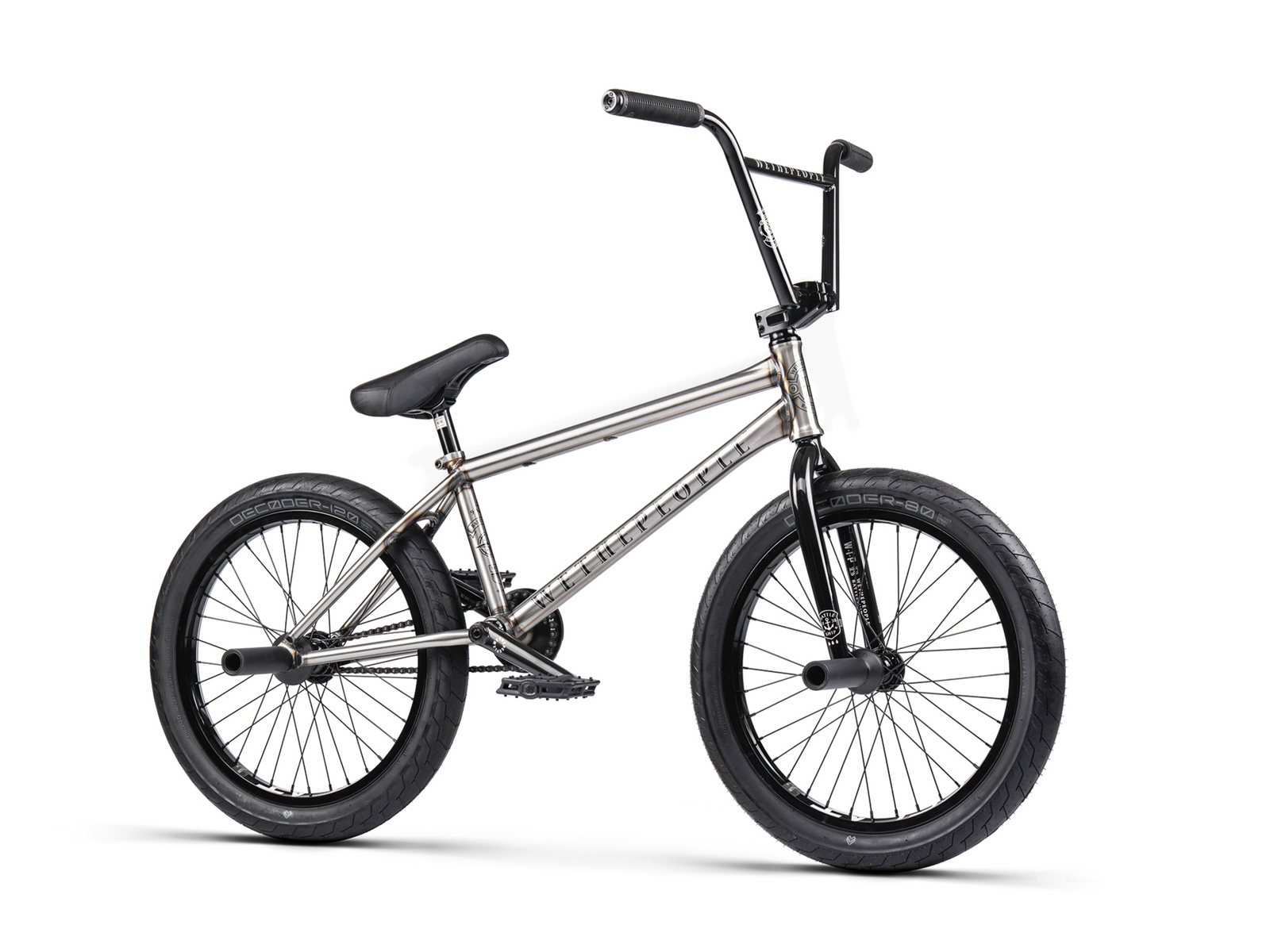

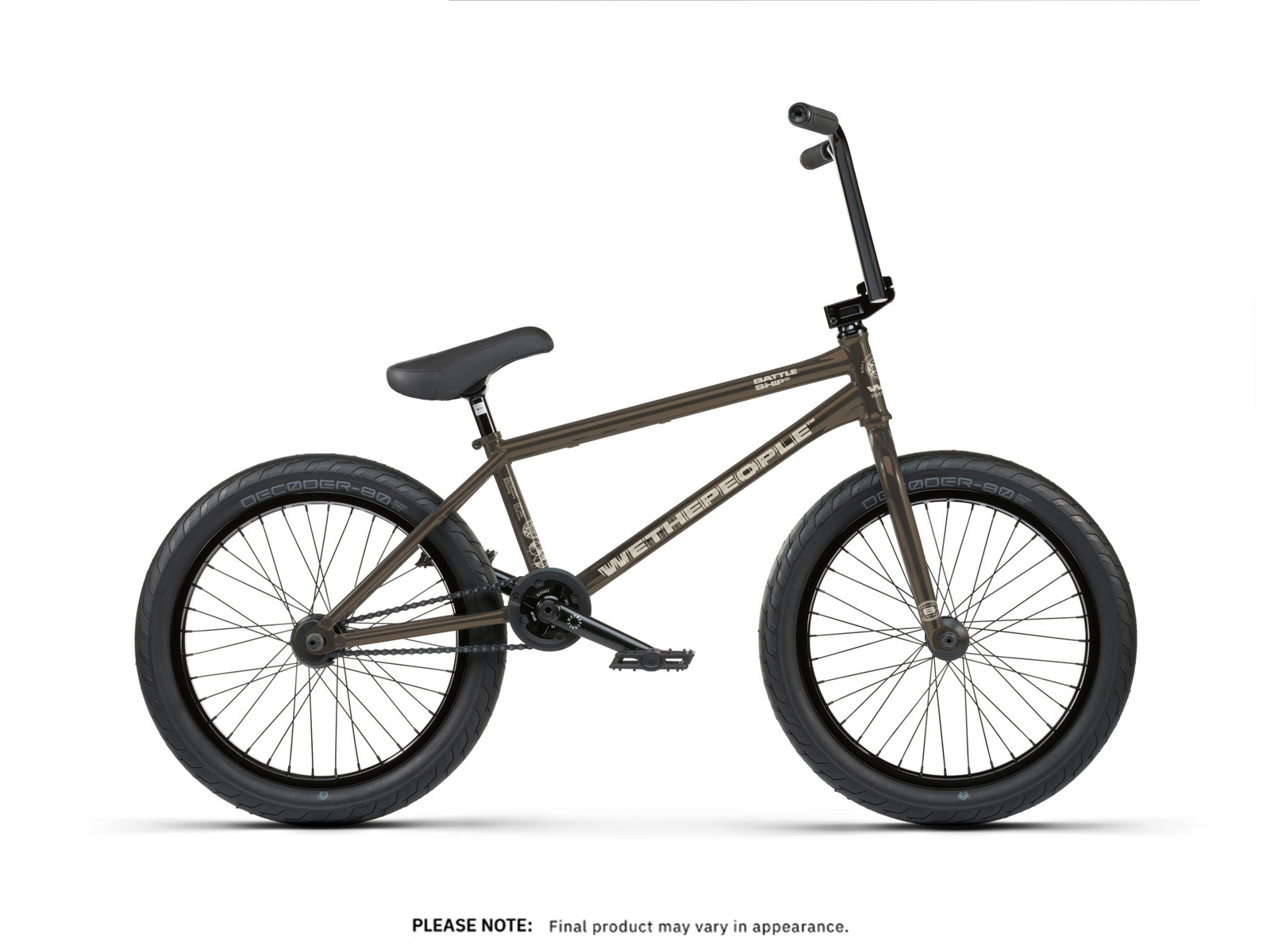

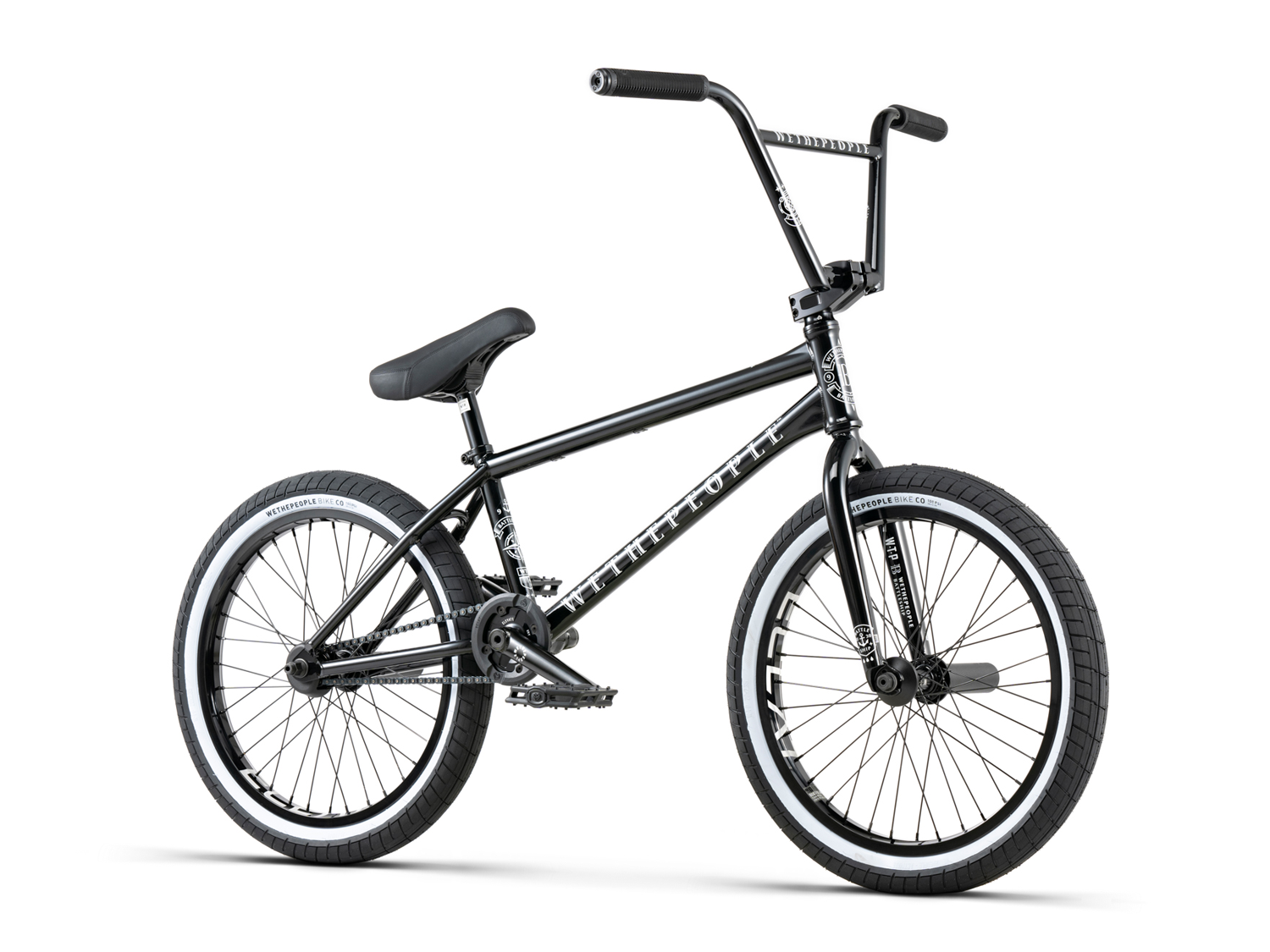

Wethepeople 20" Battleship Bike
Battleship is a name synonymous with new-school street riding and ultimate strength and durability. Taking one of the most popular technical street frames on the market and adding a full aftermarket Pro parts package, the WeThePeople Battleship is the one of the best street BMX bikes ever made. Now featuring the brand new 15mm offset Battleship fork and a full Eclat/Wethepeople parts package, this is a bike which any of the Wethepeople team could ride straight out of the box with zero compromise.
A full custom bike in every sense of the word, the Battleship carries a full Lifetime Guarantee on the frame and fork giving you full confidence that you are riding a bike designed to ride at the highest level possible."
INCLUDES LIFETIME GUARANTEE ON THE FRAME & FORK
Specifications
-
Frame - Wethepeople 'Battleship' frame, 4130 full Cr-Mo, hydroformed gussets, with removable brake pivots & guides
-
Fork - Wethepeople 'Battleship' fork, post liquid heat-treated butted Sanko tubing, 1pc CNC steerer, 15mm offset
-
Bars - Éclat 'Strangler' bar, 4pc, post liquid heat-treated 4130 Cr-Mo, 25.4mm clamping
-
Grips - Éclat 'Shogun' grips, flangeless, with Éclat Tech-Bolt barends
-
Stem - Éclat 'Domain' topload stem, CNC alloy, 48mm reach, 25.4mm clamping
-
Headset - Éclat 'Wave 16' int. headset, sealed bearing
-
Lever - Salt 'Moto' brake lever, alloy
-
Brakes: Salt 'Hammercoil' U-brake rear, alloy (Blue & Black)
-
Brakes: Eclat 'Talon', alloy, U brake,rear (Raw)
-
Cranks - Wethepeople 'Logic' tubular 3pc crank, 22mm, Cr-Mo, 160mm, 48 spline
-
BB - Wethepeople 'Compact' BB, 22mm, press fit, sealed bearing
-
Pedals - Éclat 'Centric' pedals, nylon/fibreglass
-
Chain - Saltplus 'Warlock' half-link chain
-
Sprocket - Éclat 'Elevate' sprocket & nylon guard, 6061-T6 alloy, 25T
-
Driver - 1pc freecoaster driver, 9T, sealed bearing
-
Front Hub: Wethepeople 'Helix' hub, fully sealed, 3/8"S female bolts, 36H (Black & Blue)
-
Éclat 'Cortex', Os hub, fully sealed, 3/8"S female bolts, 36H, oversize bearings (Raw)
-
Rear Hub: Wethepeople 'Helix' freecoaster hub, fully sealed, 9T, 14mm axle, 36H (Black & Blue)
-
Rear Hub: Éclat 'Shift' freecoaster hub, fully sealed, Hybrid System convertible internals, 9T drive, 14mm hollow axle, 36H (Raw)
-
Hub Guards
-
Wethepeople 'Helix' hub guards - nylon/fibreglass front (x2), nylon/fibreglass rear (x2) (Black & Blue)
-
Éclat hub guards - nylon/fibreglass front (x2), nylon/fib reglass rear (x2) (Raw)
-
Front Rim - Éclat 'Bondi' rim, 38mm wide, flash welded, double wall, 36H
-
Rear Rim - Éclat 'Bondi' rim, 38mm wide, flash welded, double wall, 36H
-
Seat - Éclat 'Bios' pivotal seat, fat padded
-
Seat Post - Wethepeople 'Team' pivotal seat post, 200mm, 6061-T6 alloy
-
Seat Clamp - Wethepeople 'Logic' seat clamp, 4130 Cr-Mo
-
Éclat 'Decoder' tyres, 2.40", 100psi, front & rear (Black & Blue)
-
Éclat 'Decoder' tyres, 2.40", 80psi, front & rear (Raw)
-
Pegs - Éclat 'Venom' pegs, nylon/fibreglass, 4.8" long, x2
-
Weight - 12.57kg
Frame / Bar Geometry
-
Top Tube Length - 20.75"
-
Chain Stay Length - 13" (12.7"-13.2")
-
Head Tube Angle - 75.5°
-
Seat Tube Angle - 71°
-
Bottom Bracket Height - 11.7"
-
Stand Over Height - 9"
-
Bar Rise - 9.1"
-
Bar Width - 29.7"
-
Bar Back Sweep - 11.5°
-
Bar Upsweep - 2.5°
