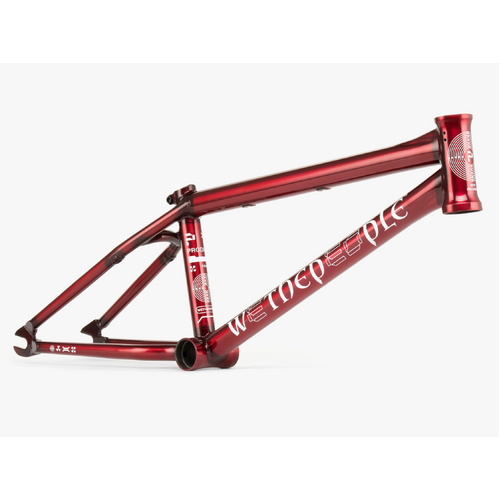

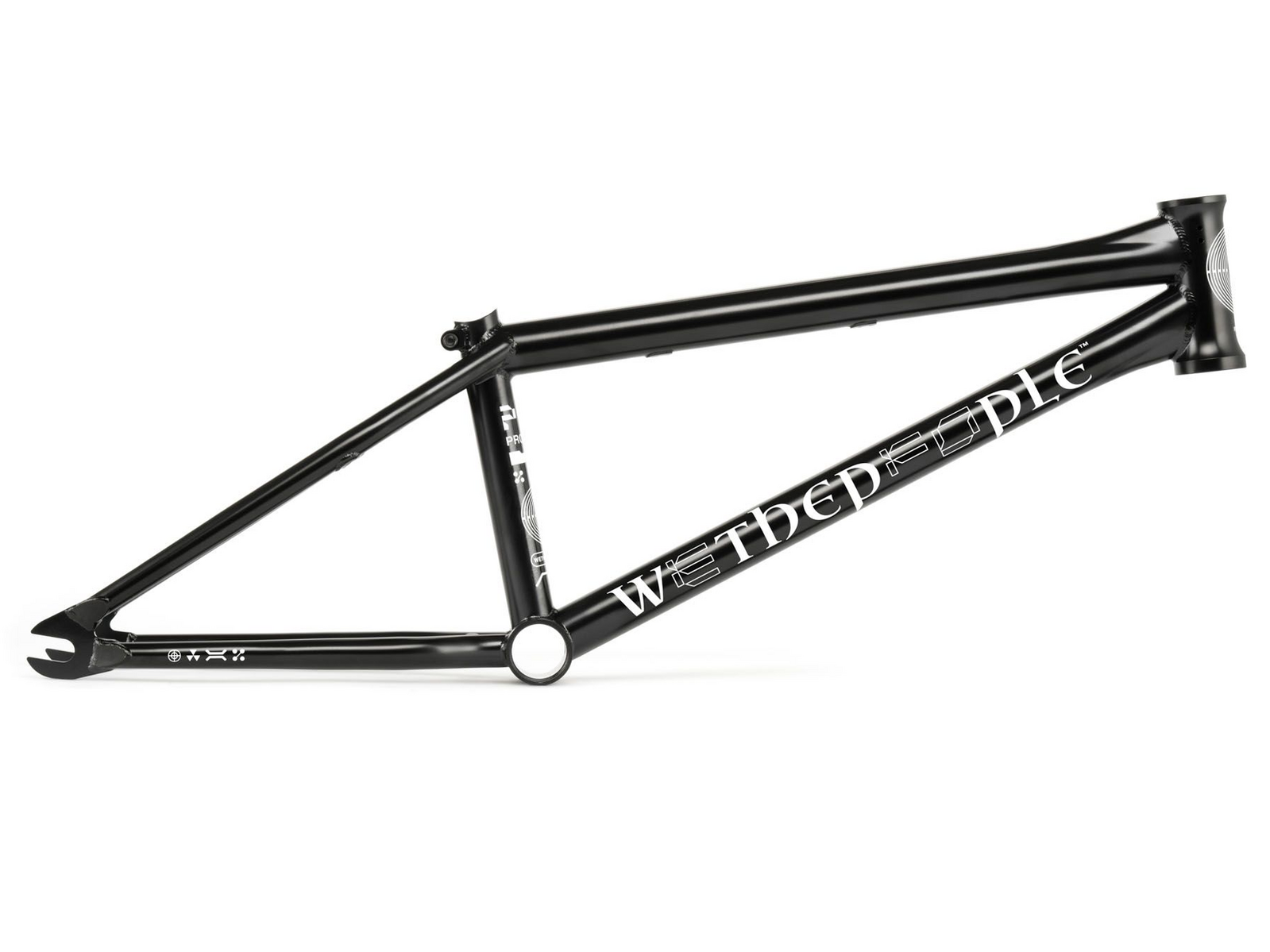

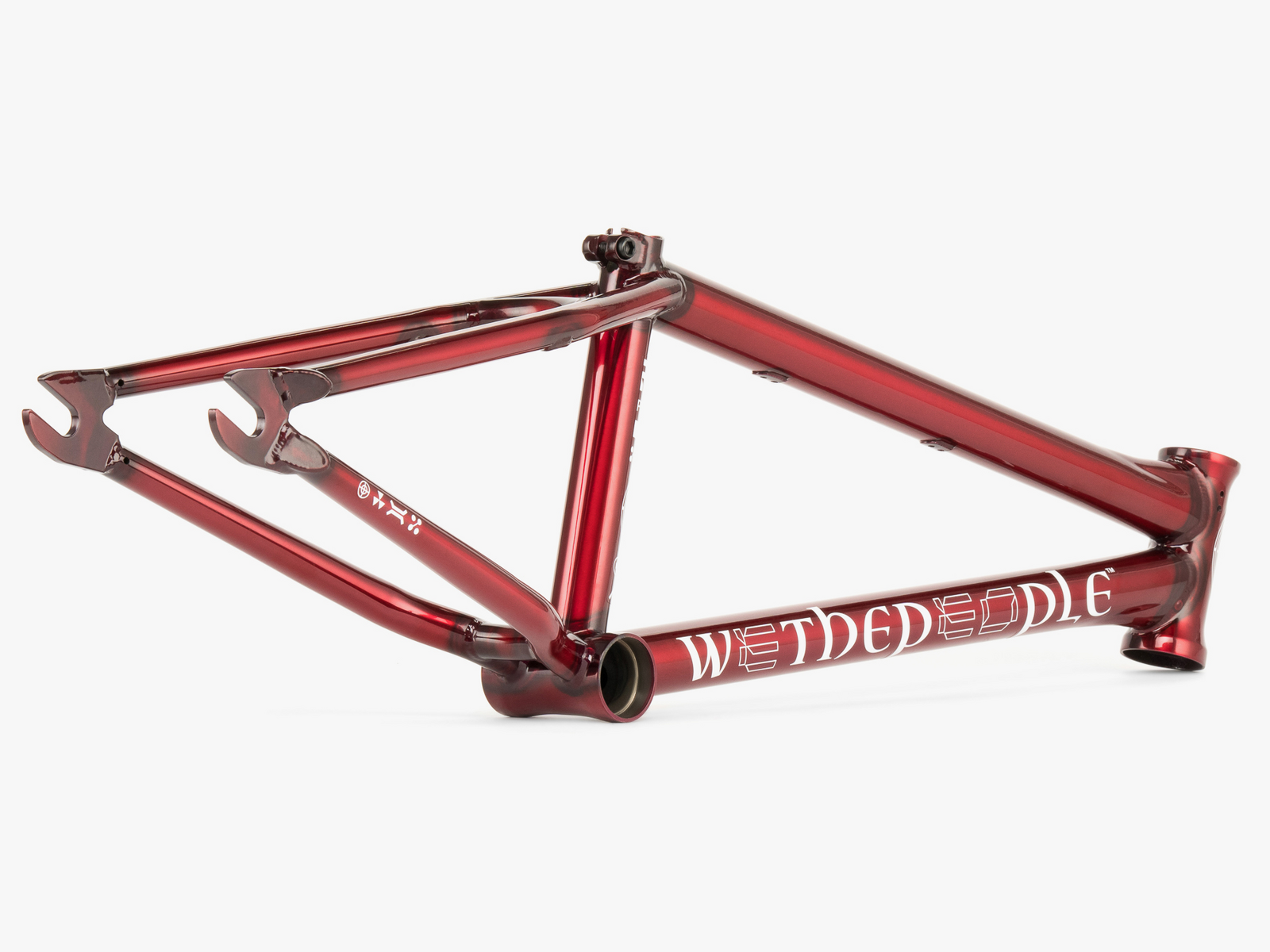

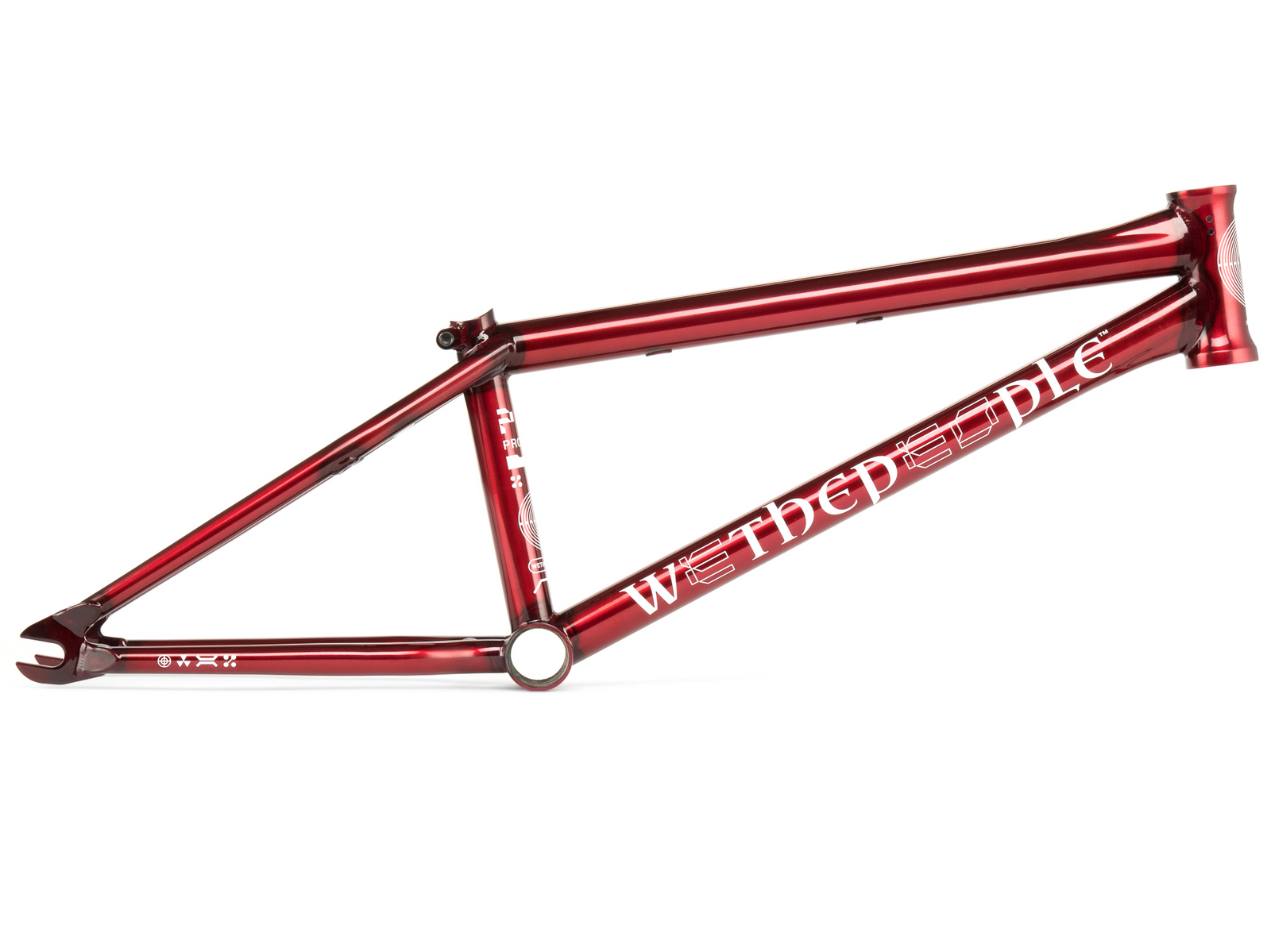

Prodigy Frame

Tubing - butted, Japanese seamless 4130 crmo tubing

Bottom bracket - 74mm Spanish size, cnc machined

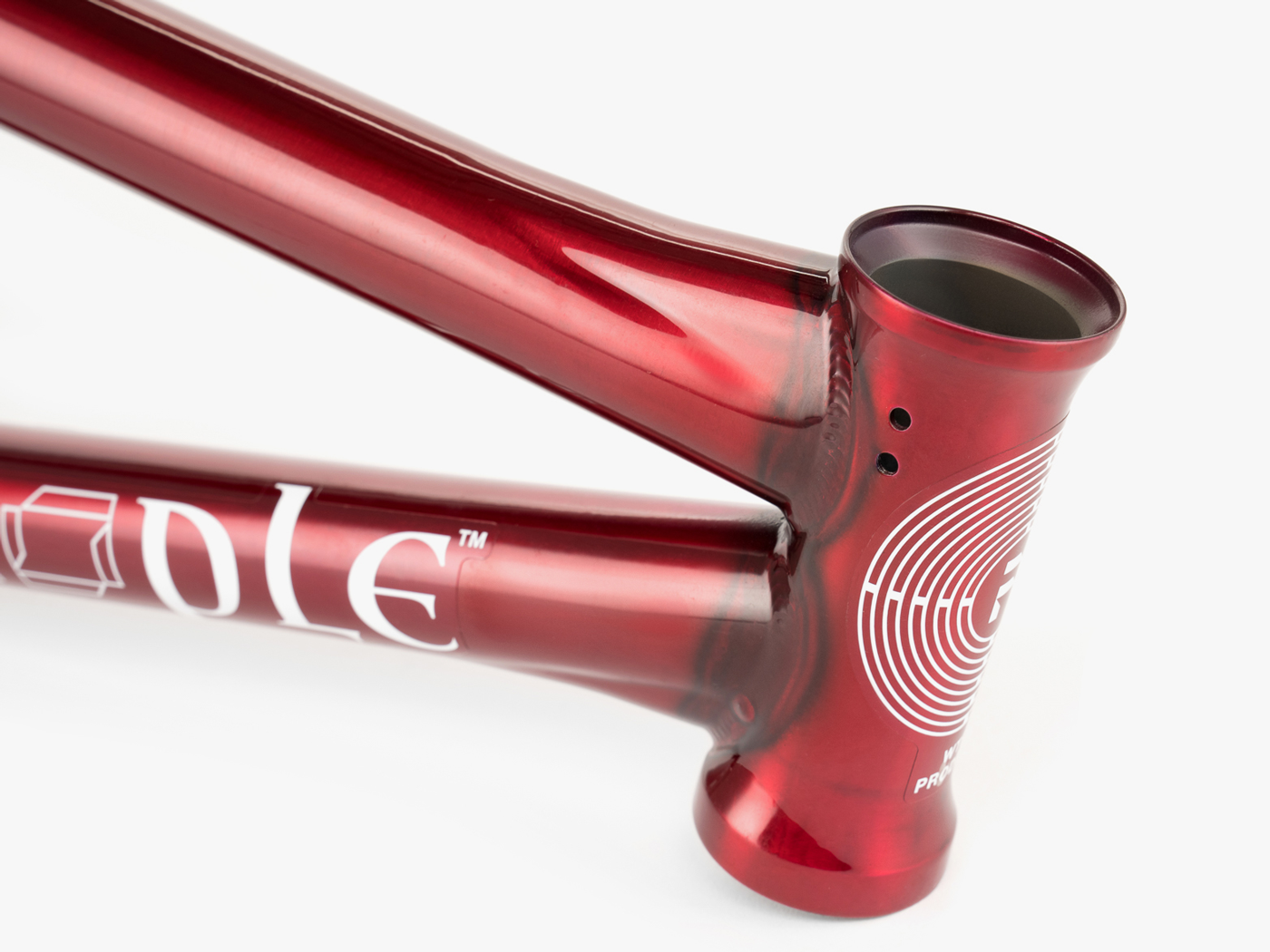

Head tube - 110mm cnc machined and heat-treated, integ. H/set, badge, gyro tabs

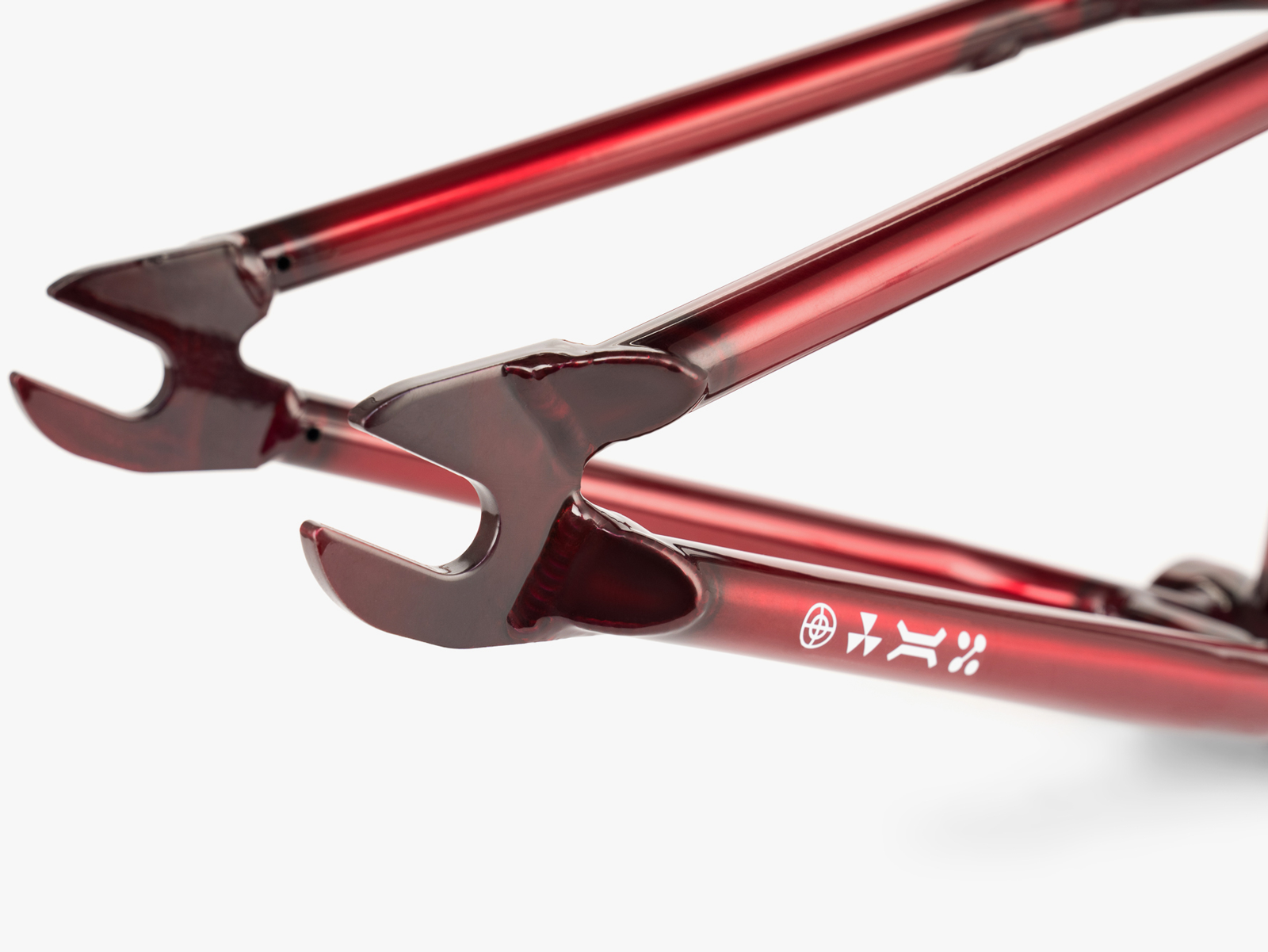

Dropouts - laser cut and cnc machined 5mm, heat-treated 4130 crmo

Brakes - pivot-3 removable brake mounts, frame comes without repl. Brake hardware

Features

• 18" specific aftermarket frame

• hydroformed top and down tube for superior strength and stiffness

• super-lightweight tubing for younger riders

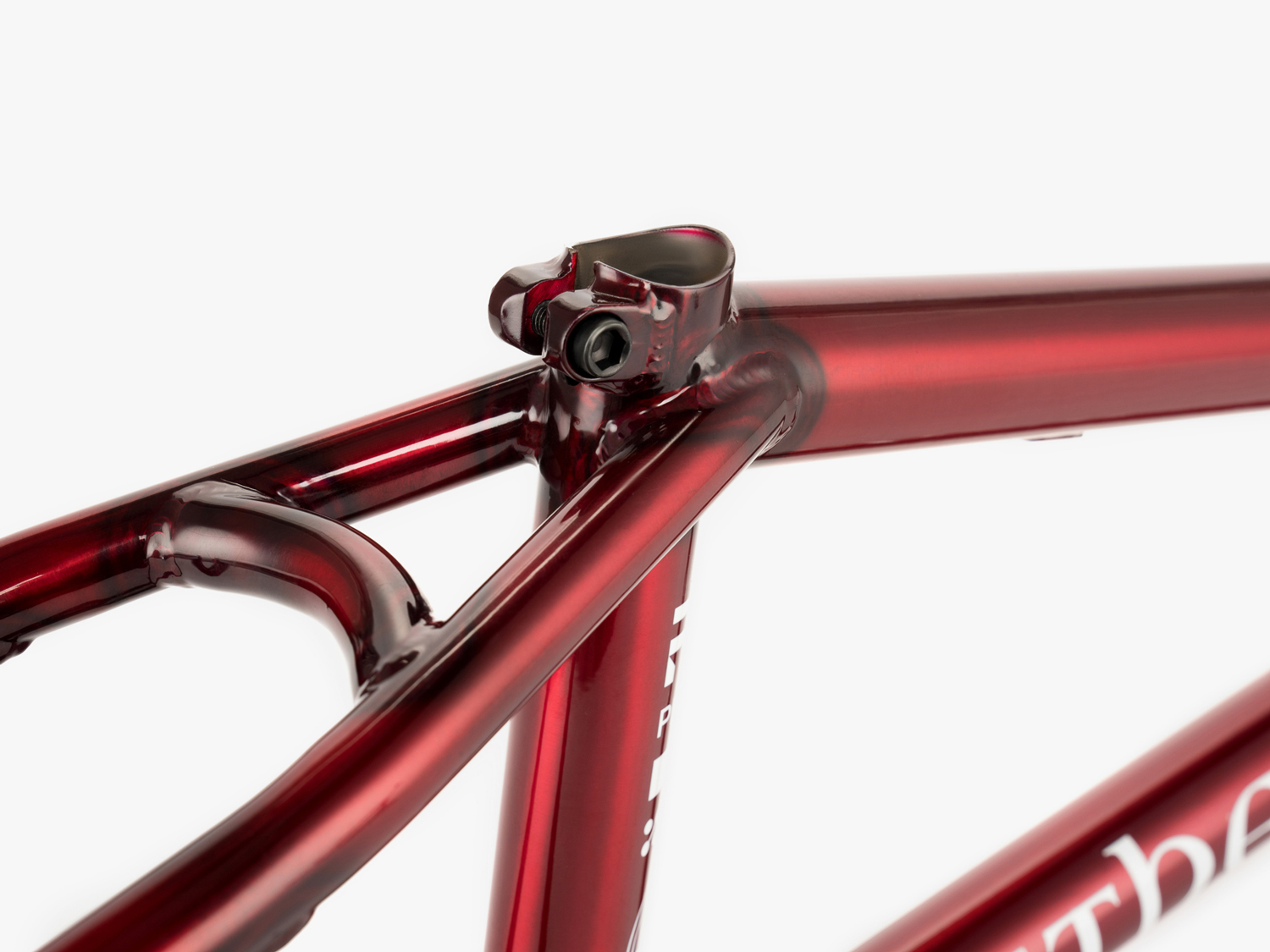

• curved seat stay bridge and chain stay bridge

• 110mm tall head tube for use with a gyro

• Spanish bottom bracket for weight reduction

• larger 1.8mm welding at head tube

• frame comes with 14mm slot dropouts

• 6mm seat clamp bolt

• ovalized chain stays for increased tire & sprocket clearance

• wider rear triangle allows clearance for a 2.4" tire

• includes LIFETIME GUARANTEE



Frame geometry

Top tube length - 17.75"

Chain stay length - 11.5" - 12" / optimised for 11.55" W/25-9 Gearing

Head tube angle - 75.5°

Seat tube angle - 71.5°

BB height - 10.65"

Standover height - 7.5"

(30506)

SKU 30506
Brand WETHEPEOPLE
Shipping Weight 3.0000kg
Shipping Width 0.180m
Shipping Height 0.350m
Shipping Length 0.950m
Shipping Cubic 0.059850000m3
