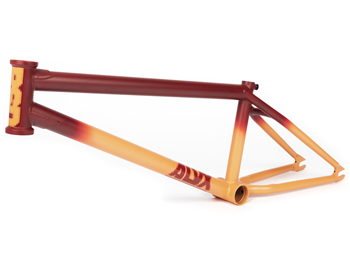

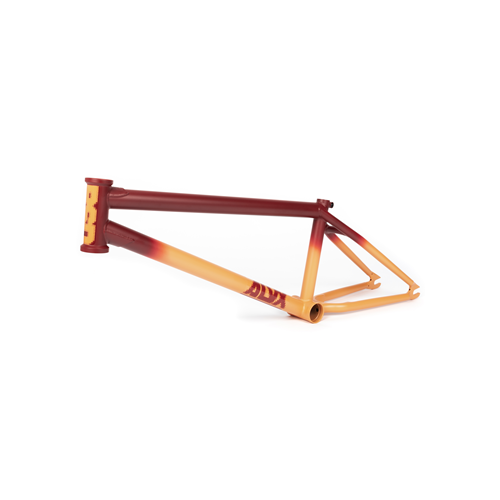

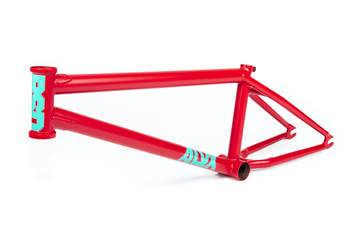

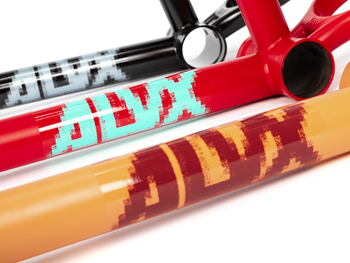

The ALVX AF is the latest incarnation of the ALVX frame, with an invest cast chainstay yoke which gives unparalleled tire clearance as well as stiffening up the rear triangle....

FEATURES
Super short rear end slammable to 12.5”
Extra wide rear end for up to 2.4” tyres
7mm thick invest cast dropouts
External gussets
No brake mounts
Built in chain tensioners

TT Size: 20.3”, 20.6”, 20.8”, 21”
CS Length: 12.5” - 13”
BB Height: 11.7”
Standover: 8.7”
HT Angle: 75.5°
ST Angle: 71°
Weight: 2.27kg

(25893)

SKU 25893
Brand BSD
Shipping Weight 3.0000kg
Shipping Width 0.220m
Shipping Height 0.550m
Shipping Length 1.000m
Shipping Cubic 0.121000000m3
