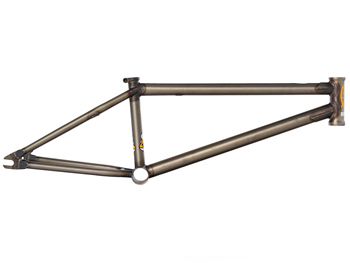

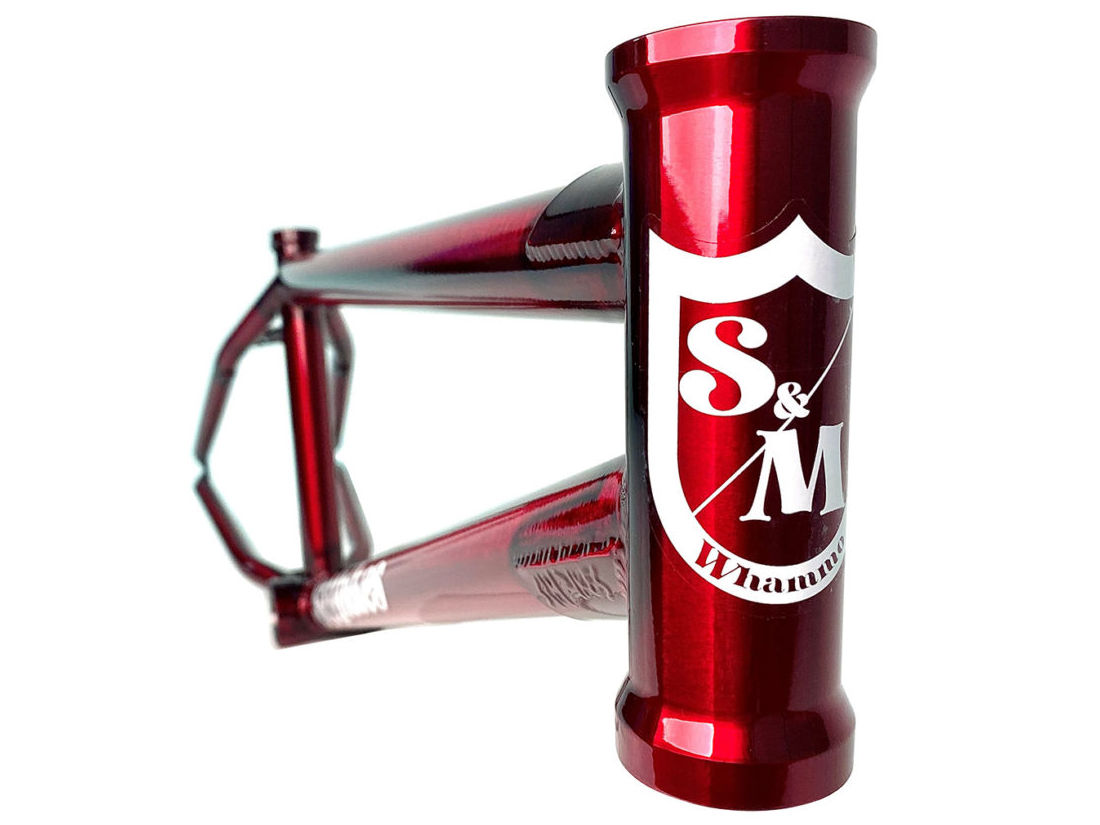

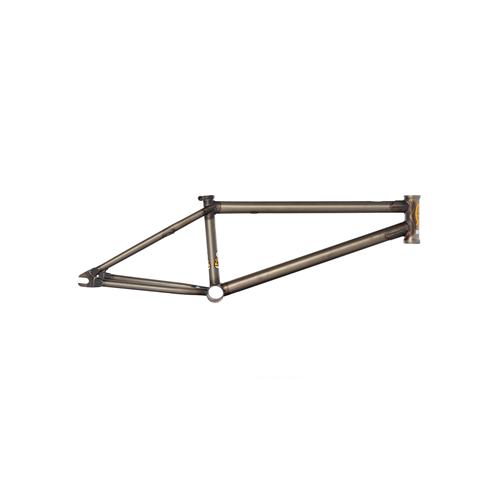

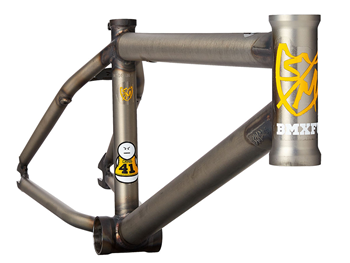

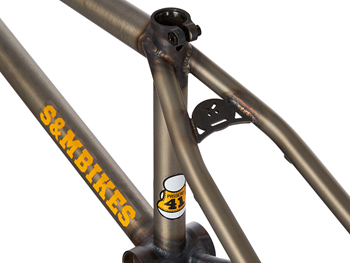

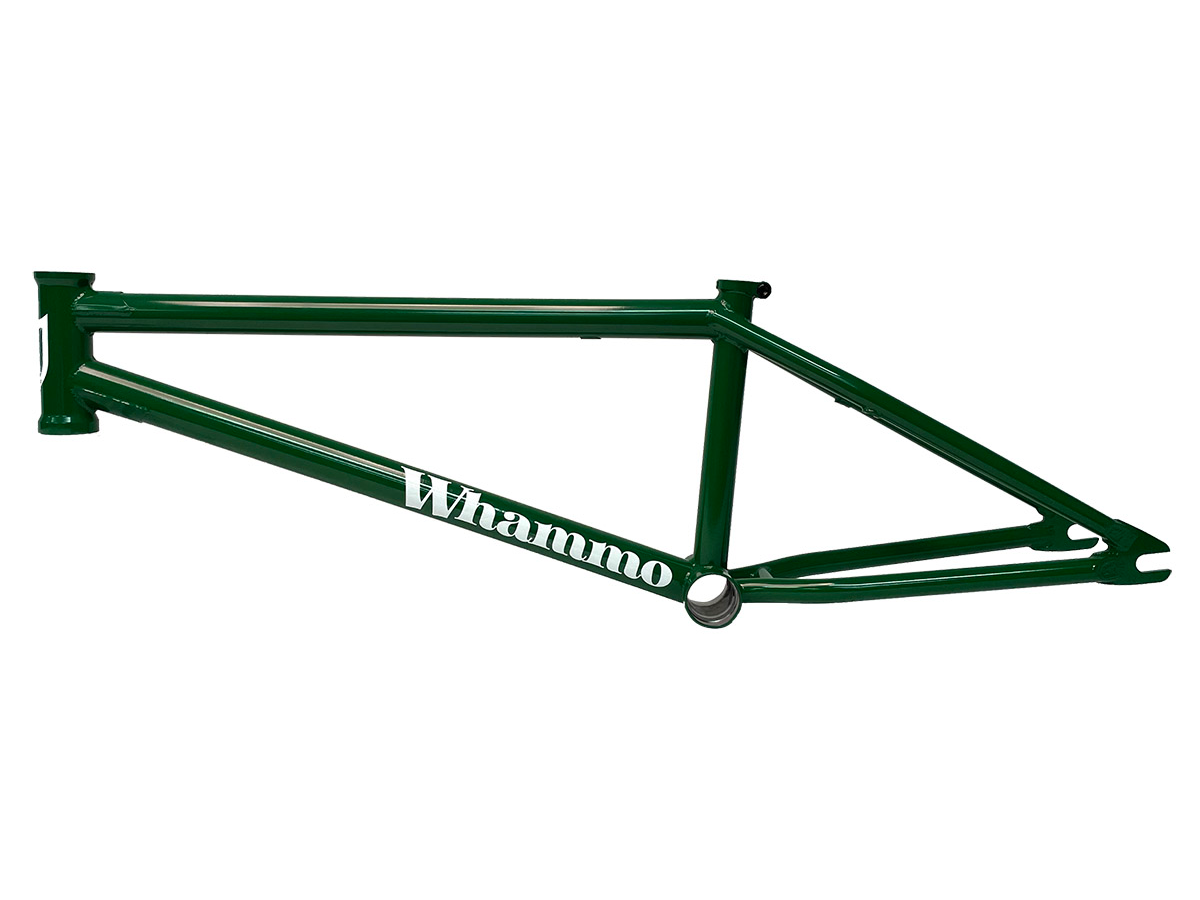

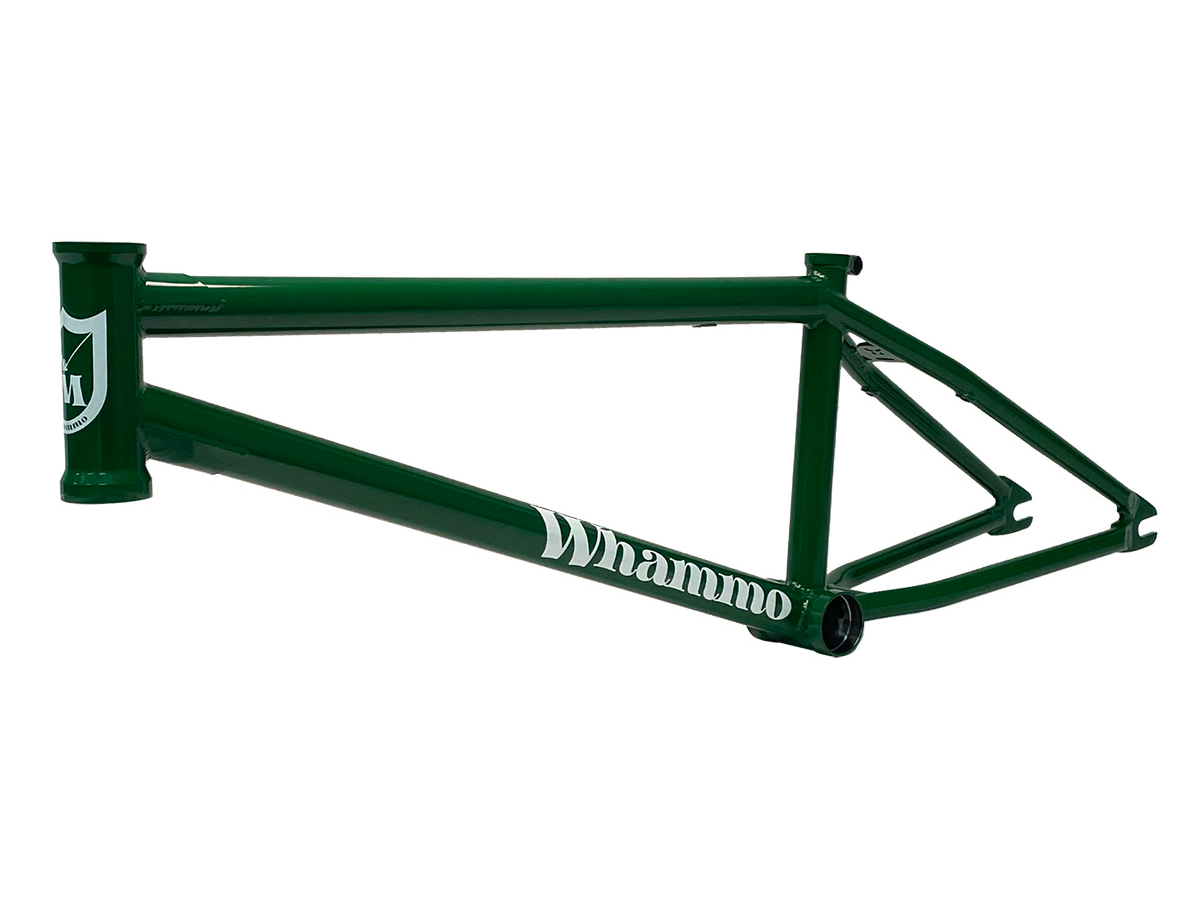

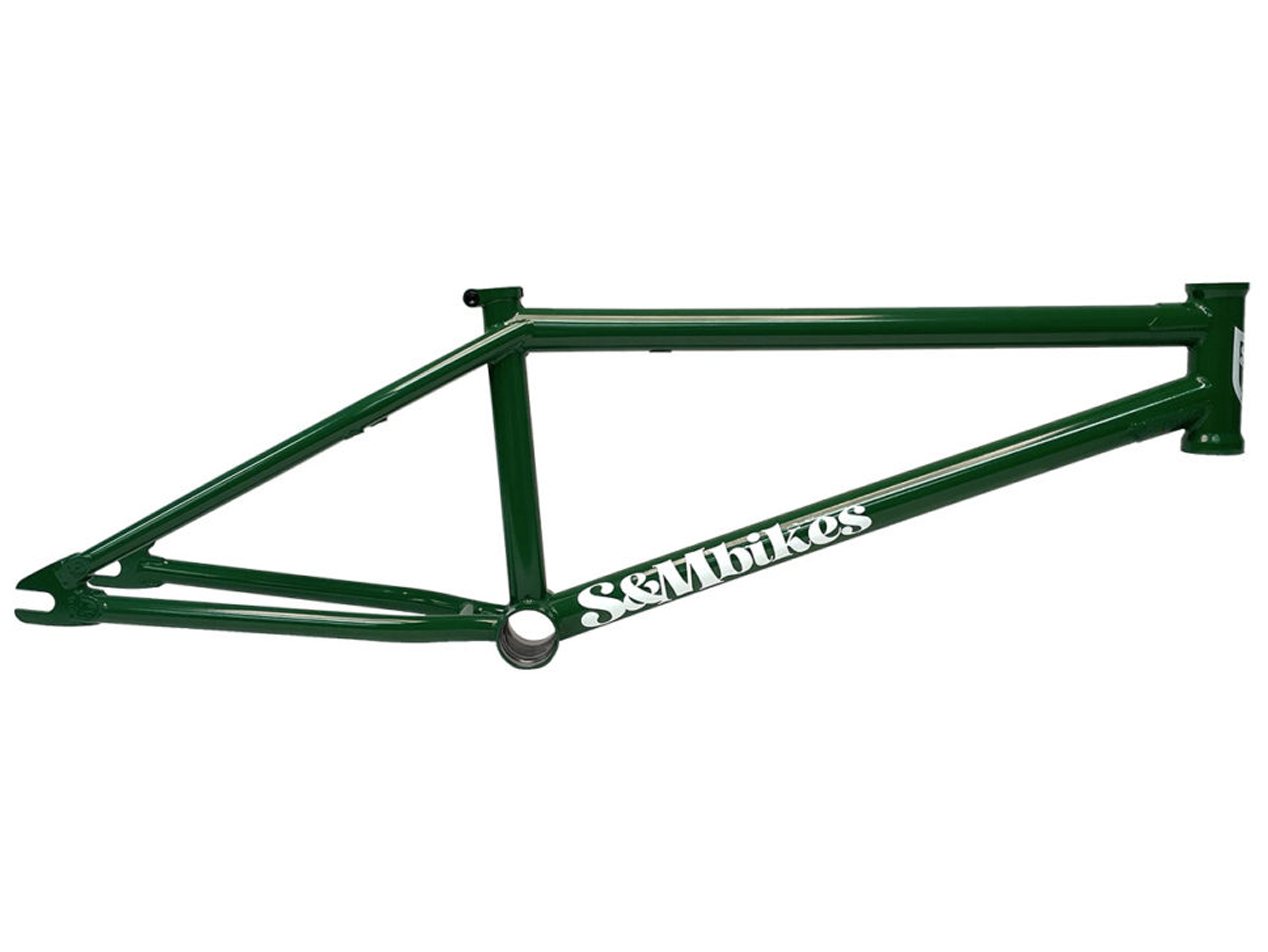

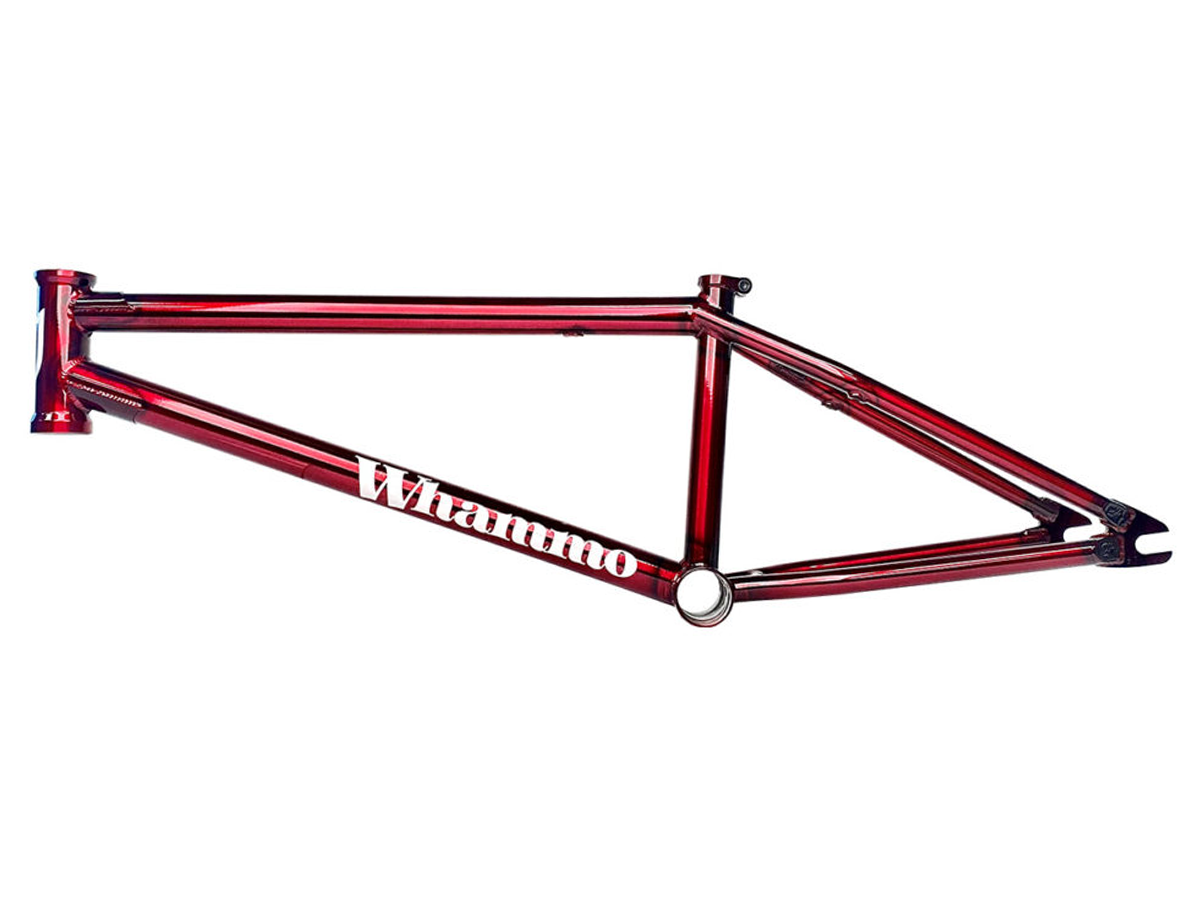

Whammo V2 Frame

Craig Passero Signature Frame



Now with a shorter back end (12.9″), taller headtube (5″) and raised bottom bracket (11.8″), the Whammo V.2 will have you shouting Wham Bam, thank you Man! The taller headtube (ie. less spacers) translates into a cleaner setup, the shorter back end makes it more responsive and the higher bottom bracket improves sprocket clearance when grinding. The rest? Tried and true from the first Whammo.



TOP TUBE LENGTH - 20.5″,20.75″,21″

REAR END LENGTH - 12.9″-13.5″

HEAD TUBE ANGLE - 75.3°

HEAD TUBE STYLE - Integrated (45°/45°, 41.8mm)

SEAT TUBE ANGLE - 71°

SEAT CLAMP - Integrated

SEAT POST SIZE - 1″ (25.4mm)

BB HEIGHT - 11.8″

BB STYLE - Mid

STANDOVER HEIGHT - 8.85″

BRAKE MOUNTS - Thread-On (sold separately) 990 Mounts

DROPOUTS - 14mm Slot, 4Q-Baked

GYRO TABS - None

WEIGHT - 2.12 kg

TUBESET - Butted ThermalX Tubing

(SMFR015)

SKU SMFR015
Brand S&M
Shipping Weight 3.0000kg
Shipping Width 0.180m
Shipping Height 0.350m
Shipping Length 0.950m
Shipping Cubic 0.059850000m3
