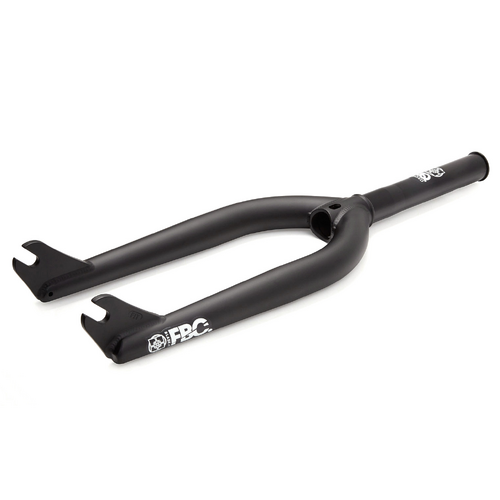

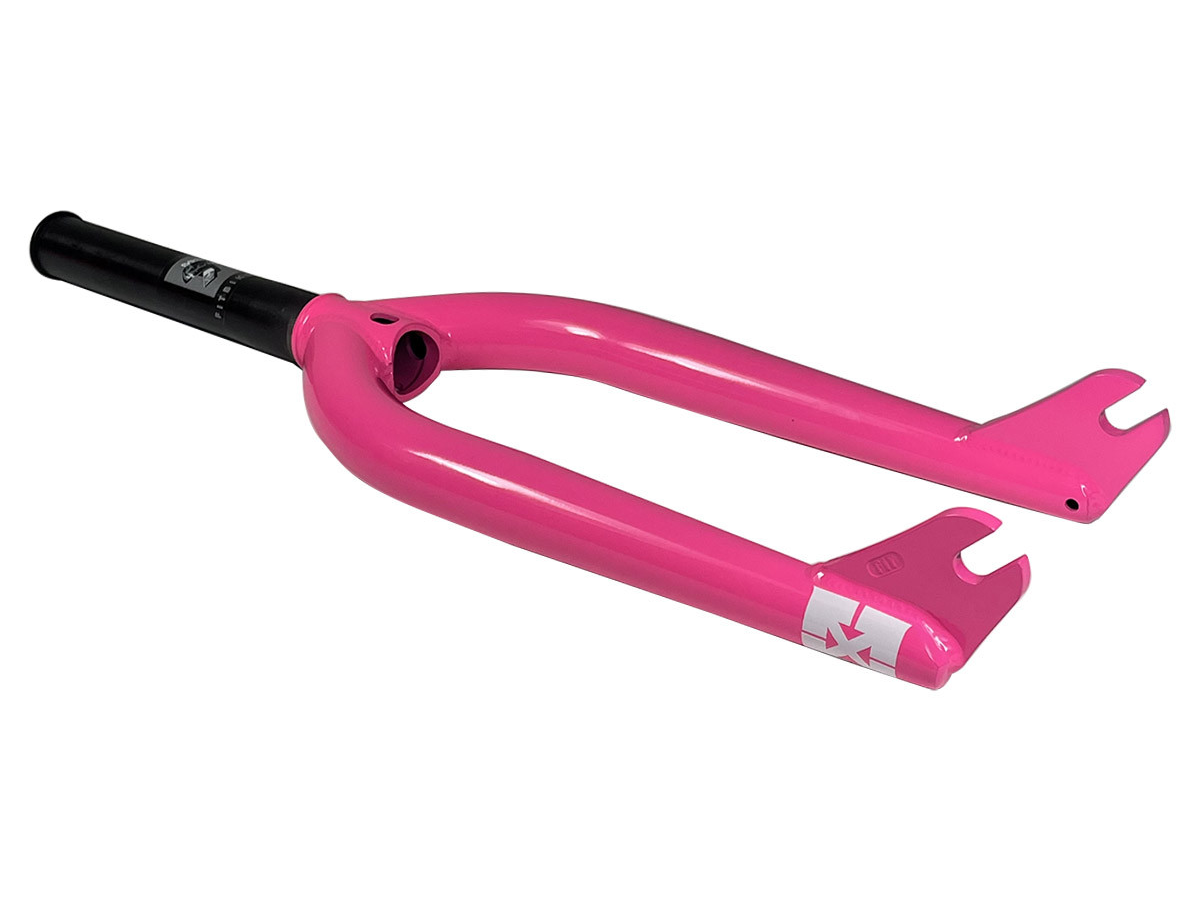

Blade V.3 Fork

Our goal was to design and produce an extremely strong fork with plenty of tire clearance. After 2 years of R&D and a lot of investment in tooling, the Blade V.3 is available with a traditional 33mm offset. Here are a few features that make these forks so strong

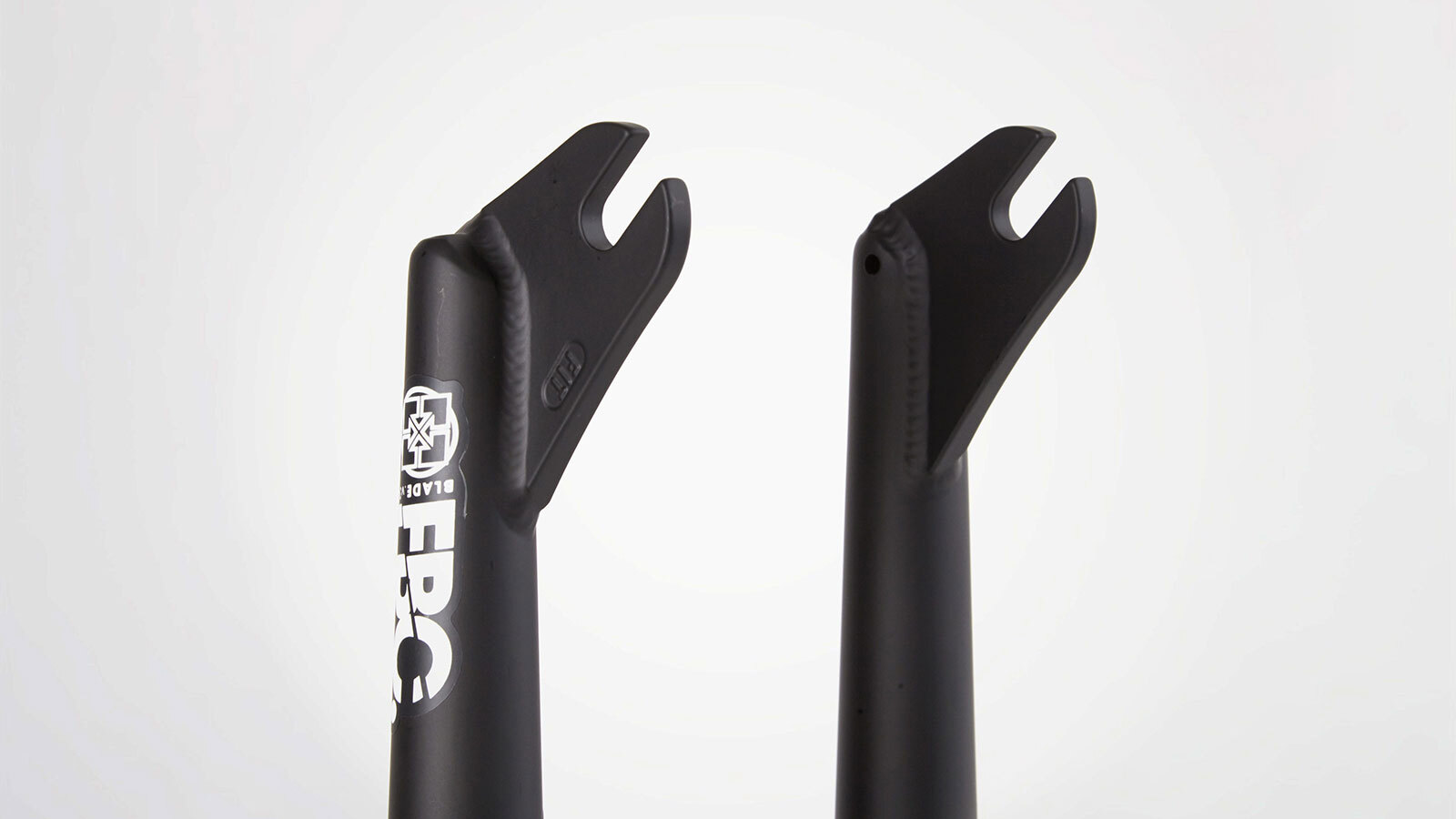

Using left and right specific investment cast drop-outs instead of traditional Cr-Mo plate, we’ve eliminated the weld gap on the inside of the drops, and were able to thicken up the drops toward the top making a much stronger drop-out/leg connection.

Seamless, swaged legs provide more strength than welded or fused caps-especially if pegs are installed. The ends of these legs are formed, not capped and welded so there is nothing to fracture.

A longer 166mm CNC’d steerer tube with increased wall thicknesses wherever possible and a 24mm x 1.5 compression cap with integrated race.

Tapered and butted legs provide tons of strength, crown weld surface, and peg clearance.

Post weld 4Q Baked heat-treatment.

Specs

• Legs - Seamless Swaged (No Welded Cap)

• Dropouts - Investment Cast

• Steerer Tube - 1 Piece CNC-Machined 4130 CrMo

• Steerer Tube Length - 166mm

• Compression - M24 X 1.5 Thread – 6mm Allen Slot

• Axle to Crown - 320mm

• Offset - 33mm

• Weight – 1.02kg

• Heat Treat - 4Q Baked Post-Weld
