WETHEPEOPLE

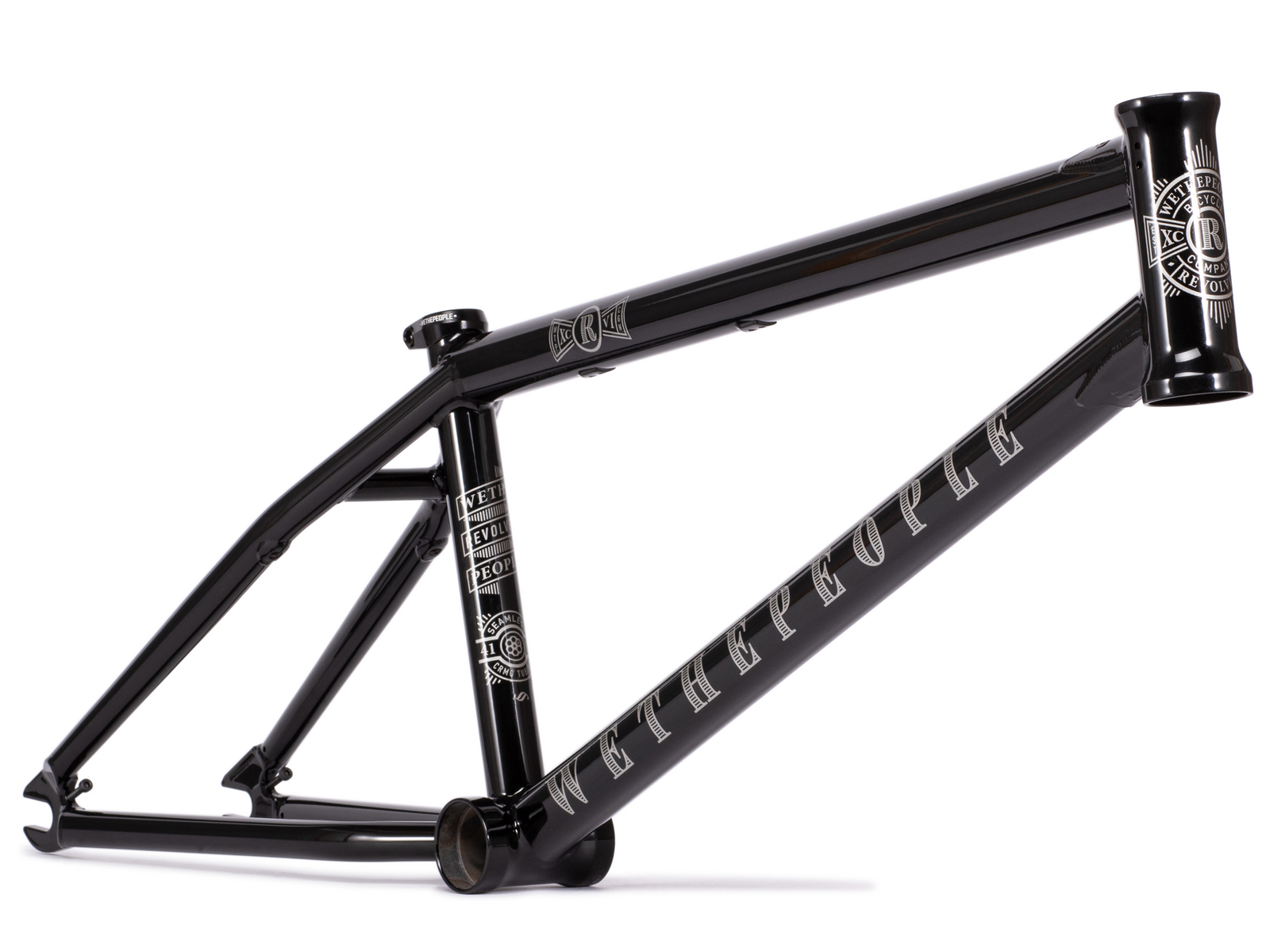

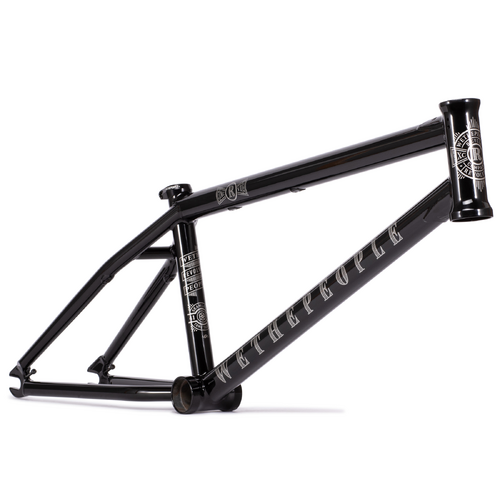

Revolver Frame

The Revolver frame is the perfect do-it-all and do-it-well model. A frame that was created with the sole intention of shredding on any terrain. WTP used larger diameter rear tubing and an invest cast wishbone, to not only give the revolver a strong and unique look but more importantly to strengthen and stiffen the whole frame up - giving it a stable yet responsive feel. Combined with 7.5mm thick invest cast dropouts with integrated chain tensioners - the revolver is a deadly weapon capable of just about anything. Includes lifetime guarantee.



Features

-Perfect all-round frame with carefully balanced geometry, and bullet-proof tubing

-Investment cast wishbone design for an extra stiff backend

-Larger radius stay tubing for a stiffer and stronger back end

-Wider rear triangle allows clearance for a 2.4" tire

-WTP top tube and down tube gusset

-Includes wtp supreme 6061-t6 alloy aftermarket seat clamp

-Includes lifetime guarantee



Specifications

Tubing - Butted, japanese seamless 4130 crmo tubing

Bottom bracket - 74mm mid size, cnc machined and heat-treated

Head tube - 127mm cnc machined and heat-treated, integ. H/set, drilled for gyro tabs

Dropouts - 7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo

Brakes - pivot-3 removable brake mounts, frame comes without repl. Brake hardware

Weight - 2.385kgs - 21" tt



Geometry
Top tube length - 20.75", 21" or 21.25"

Chain stay length - 13.25"-13.75'' – optimized for 13.25"/13.5'' w/ 28-9

Head tube angle - 74.85°

Seat tube angle - 71°

Bb height - 11.5"

Standover height - 9.1"







(WPFR101)

SKU WPFR101
Brand WETHEPEOPLE
Shipping Weight 3.0000kg
Shipping Width 0.350m
Shipping Height 0.180m
Shipping Length 0.950m
Shipping Cubic 0.059850000m3
